Radium Engineering Brake Master Cylinder Brace | 1989-1994 Nissan Skyline GT-R (20-0586)

An R32 on modern brakes and tires flexes its thirty-year-old firewall on every hard stop.

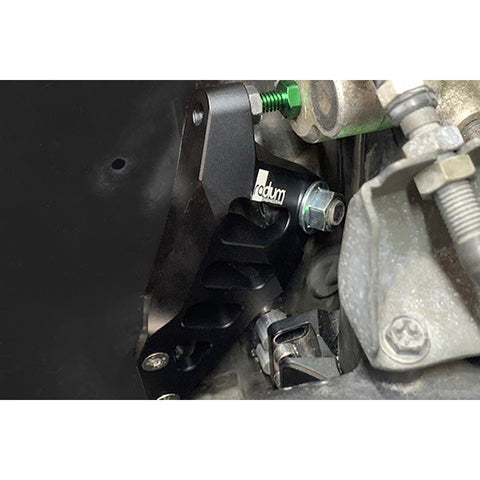

When the brake pedal is depressed, not all the mechanical energy transfers into hydraulic brake line pressure; some is wasted flexing the thin firewall behind the master cylinder. The Radium Engineering Brake Master Cylinder Brace for the Nissan R32 Skyline installs on the strut tower (RHD) and eliminates that flex, allowing all of the pedal input force to be applied to stopping the vehicle for a firmer pedal and more responsive brake system. The billet aluminum design is lightweight yet very stiff, and because it is a 1-piece design there is no unwanted secondary flexing created by inferior multi-piece designs, while 3 mounting points on different planes promote reinforcement. Installation uses factory mounting threads and takes minutes, with no cutting, drilling, or modifications.

What You'll Feel

• A firmer, more immediate brake pedal from the first stop after installation
• Consistent modulation under the hard braking that GT-R brakes and modern tires generate
• Confidence at track braking zones, with pedal force reaching the calipers instead of the firewall
• A streamlined design coexisting with aftermarket modifications near the strut tower

Features

• CNC machined from 6061 aluminum; solid 1-piece design for increased rigidity
• Black anodized and laser engraved with the Radium logo

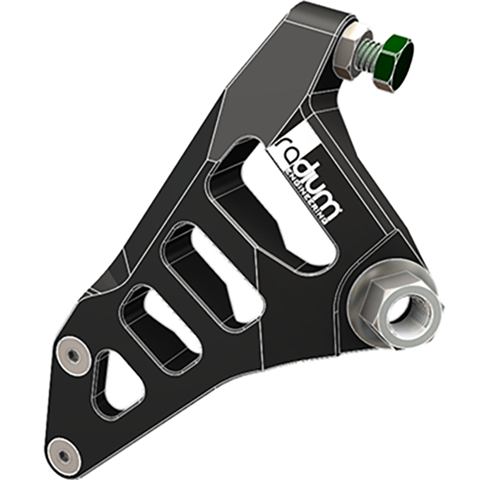

• Aluminum preload adjustment bolt with large diameter head that will not harm the aluminum master cylinder
• Stainless steel "easy-on" lock nut prohibiting preload slippage; stainless M6x1mm bolts; JIS M12x1.25mm flange nut
• 3 mounting points on different planes; installs on factory threads in minutes, RHD

The Details

The physics are the same on every chassis and the execution details are where Radium earns the part: the preload bolt bridges brace to master cylinder, and its aluminum head exists because a steel bolt pressing on an aluminum cylinder galls and dents over years of stops, while the easy-on lock nut holds the set preload without a wrestling match. Fitment spans the R32 family, GT-R, GTS-T, and GTS-4 alike, all sharing the RHD firewall and strut tower geometry the brace was machined for. Set preload snug per the instructions rather than cranked, and the brace works invisibly on every stop thereafter.

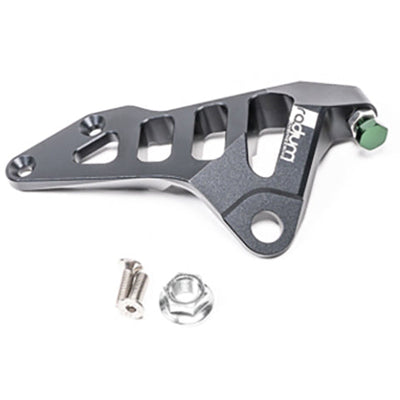

Kit Includes

• 1x Black anodized 6061 aluminum master cylinder brace
• Aluminum preload adjustment bolt with stainless easy-on lock nut
• Stainless steel M6x1mm bolts; JIS M12x1.25mm flange nut

Applications

• 1989-1994 Nissan Skyline R32 GT-R (RHD)
• Nissan Skyline R32 GTS-T and GTS-4 (RHD)
