Radium Ecoboost Port Injection Kit | Multiple Fitments (20-0326)

On an EcoBoost, the power ceiling is not the turbo; it is how much fuel direct injection can physically deliver.

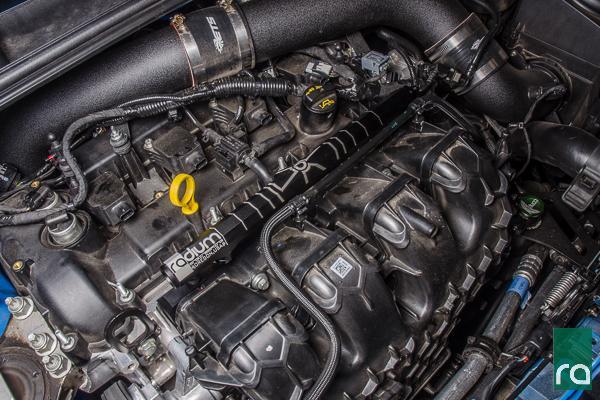

The DI system that makes these engines efficient also caps them, since the high-pressure pump runs out of delivery long before a built EcoBoost runs out of airflow, especially on E85. The Radium Engineering EcoBoost Port Injection Kit (PIK) adds a second fuel stage: a 25mm CNC machined 6061 aluminum spacer plate installs between the intake manifold and cylinder head carrying four port injector positions, fed by a custom 6063 rail with a large 0.69" bore and three 8AN ORB ports. The kit supplements the OEM direct injection rather than replacing it, so factory drivability stays while supplemental injectors carry the top end.

What You'll Feel

• The DI fueling ceiling removed, with port injectors adding delivery the HPFP cannot
• A real path to big E85 power on Focus ST, Focus RS, and Mustang EcoBoost engines
• Airflow undisturbed, with CAD port-matched passages and a knife-edged divider improving on the head's blunt casting
• Even injector spray distribution into each runner via strategically located, angled injector ports
• Factory DI manners retained at idle and cruise, since the kit adds rather than replaces

Features

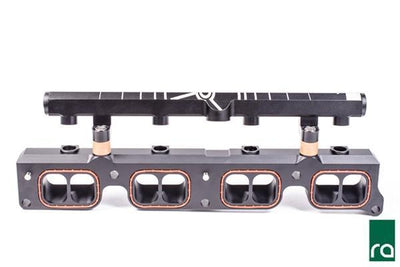

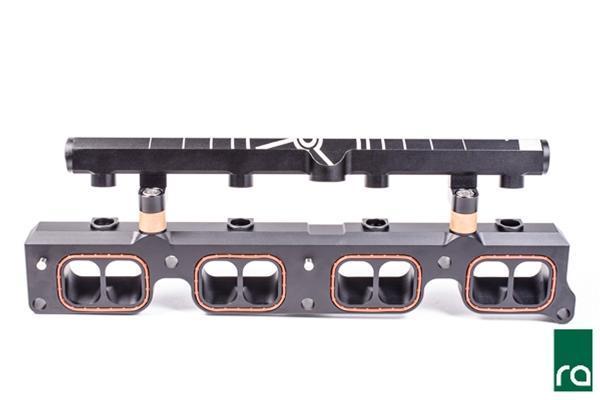

• 25mm thick CNC machined 6061 aluminum spacer plate, anodized, E85 resistant

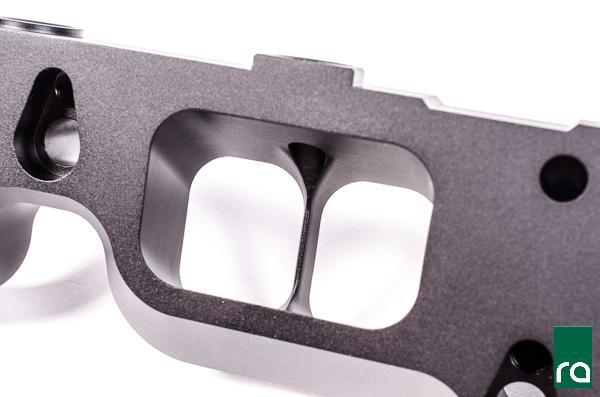

• Airflow passages CAD-matched to the intake ports and manifold; knife-edged port divider promotes laminar flow
• Injector ports strategically located and angled for optimal fuel delivery into the intake port

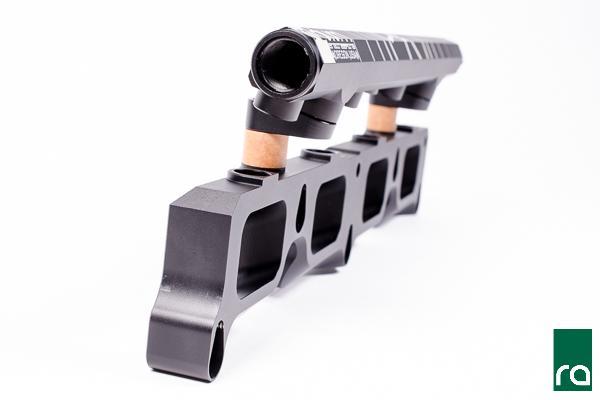

• Custom fuel rail: 0.69" internal bore, CNC machined extruded 6063 aluminum, laser etched, three 8AN ORB (3/4"-16) ports at ends and center
• Stainless steel alignment dowels pressed into the adapter plate ease installation; OEM Ford gaskets included
• Does NOT replace the OEM direct injection system; compatible with all fuels including E85

The Details

Staged port injection is the established answer to DI fueling limits, and the engineering here lives in the details most spacer kits skip. The 25mm plate's passages are machined to port-match both the manifold and head sides so the added thickness does not disturb flow, and the knife-edge divider actually improves the transition the factory head casting leaves blunt. System planning is on the builder: port injectors, an auxiliary fuel supply, and a controller or ECU strategy to command the second stage are all separate decisions, and the rail's three 8AN ORB ports accept the regulator, damper, or gauge adapters your architecture calls for, with Radium advising ample clearance around ports destined for larger accessories. Fittings are selected per application and sold separately.

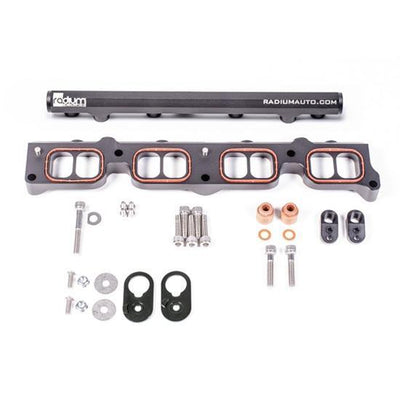

Kit Includes

• 1x PIK adapter plate with pressed stainless alignment dowels
• 1x Custom port injection fuel rail (3x 8AN ORB ports)
• Fuel rail mounting hardware
• OEM Ford gaskets
• Injectors, fittings, plumbing, and injection controller NOT included

Applications

• 2013+ Ford Focus ST (2.0L EcoBoost)
• 2016+ Ford Focus RS (2.3L EcoBoost)
• 2015+ Ford Mustang EcoBoost (2.3L)
• Supplements the OEM direct injection system; does not replace it
