Radium Dry Carbon Fiber Fuel Cell Lid | RA-Series (13-0422-01 / 13-0411-01 / 13-0406-01)

68 percent lighter than the aluminum lid it replaces, taken off the very top of the car.

The Radium Engineering dry carbon fiber fuel cell lids are optional replacements for the powder coated aluminum lid supplied as standard with every RA-Series fuel cell. Built from pre-impregnated dry carbon in a 2x2 twill weave using 3K tow, they cut weight without changing the mounting pattern; the original hardware from the fuel cell is reused.

Choose Your Lid

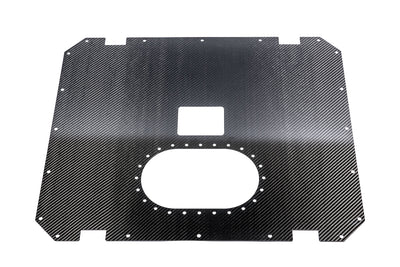

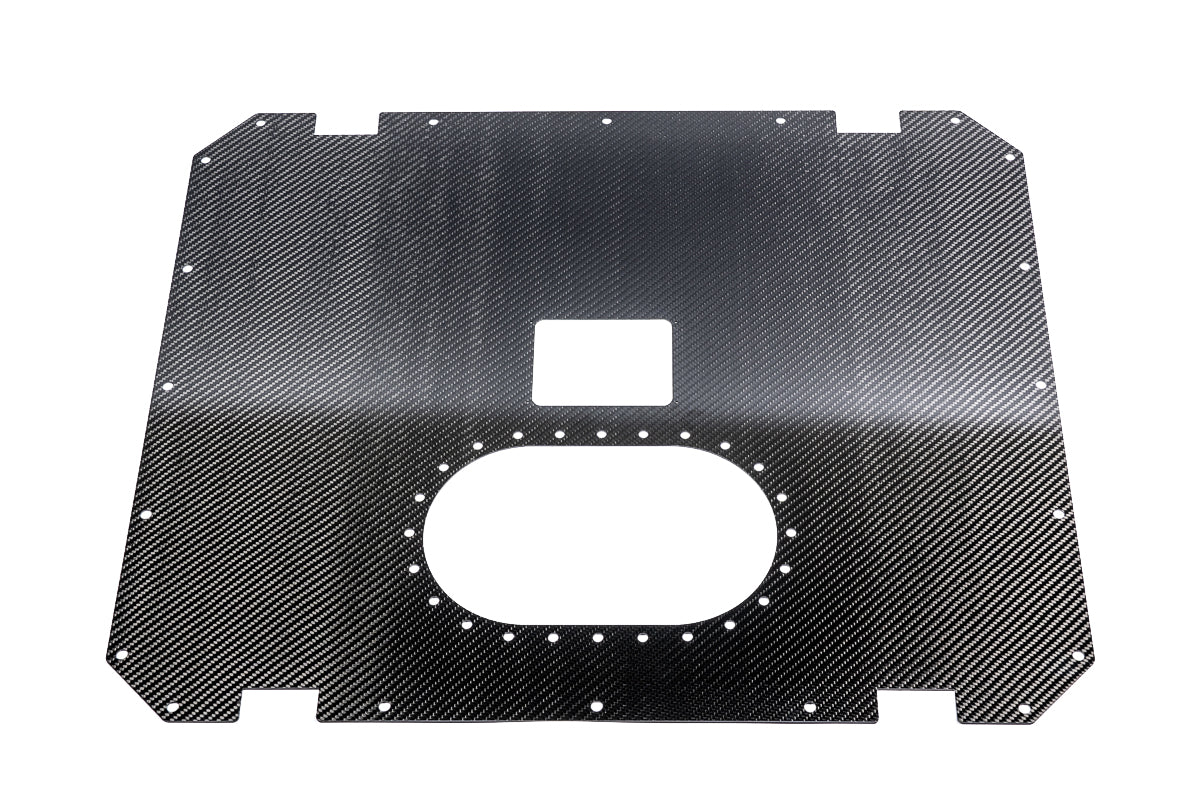

• 22 gallon (13-0422-01): for the 20-0622 RA-Series 22 gallon cell

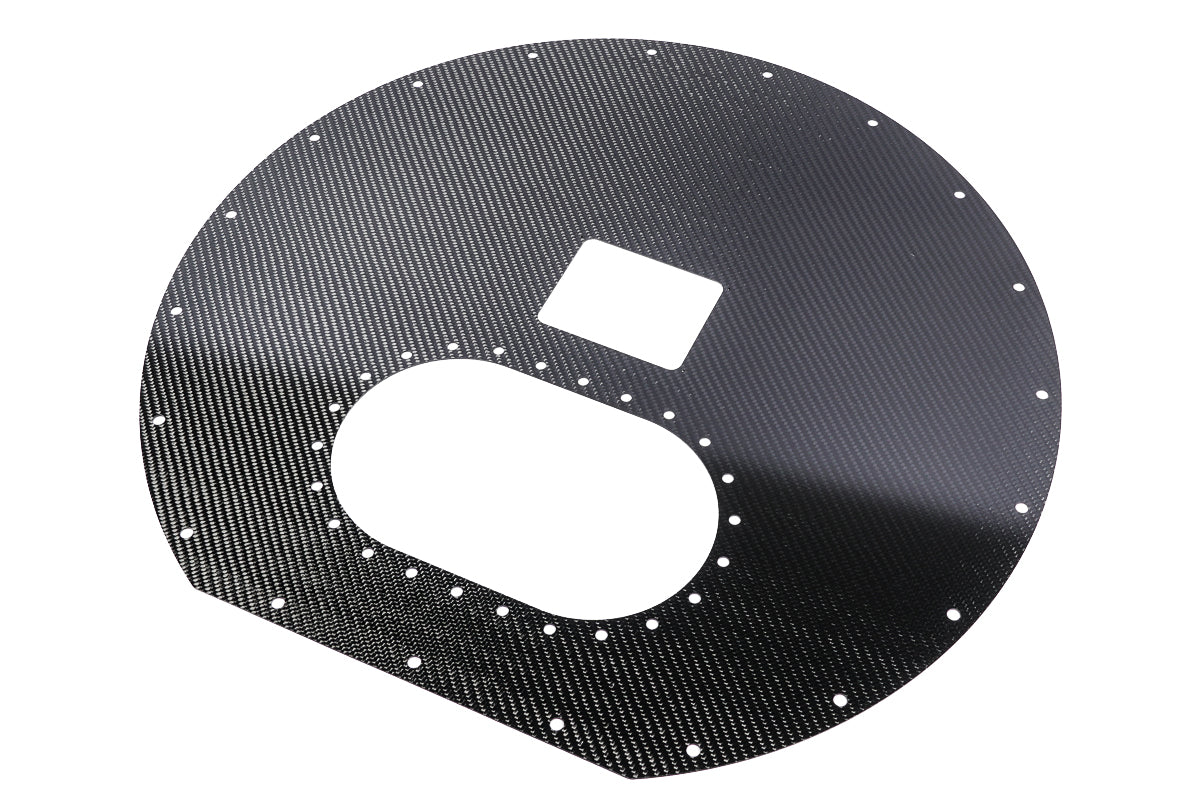

• Spare tire (13-0411-01): for the 20-0611 RA-Series 10.5 gallon spare tire cell

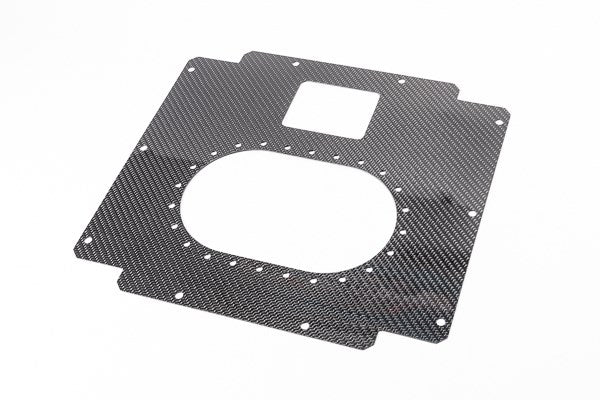

• 6 gallon (13-0406-01): for the 20-0606 RA-Series 6 gallon cell

What You'll Feel

• Meaningful weight off the top of the fuel cell, where it counts most
• A finished dry carbon surface rather than powder coat
• A direct swap using the fuel cell's existing fasteners

Features

• Dry carbon construction from pre-impregnated fabric

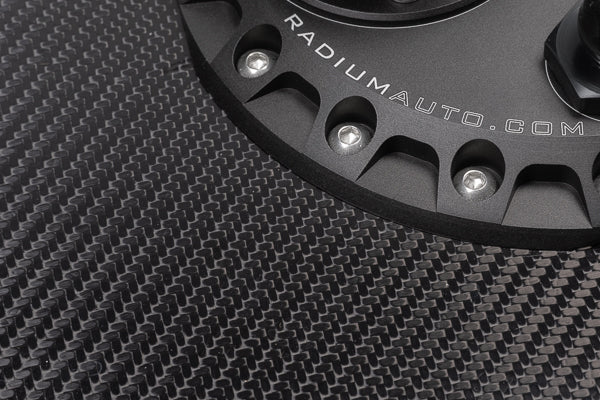

• 2x2 twill weave, 3K filaments per fiber
• 68 percent lighter than the standard powder coated aluminum lid
• Direct replacement using the cell's original fastener pattern

The Details

Check your rulebook first. Radium advises confirming with your racing organization that carbon fiber is an acceptable material for a fuel cell enclosure, since some sanctioning bodies require metal. That is worth resolving before spending the money.

Match the lid to the cell you own. Ordering one alongside a fuel cell means it arrives in a separate box for you to fit, and the standard aluminum lid cannot be exchanged or credited, so the carbon lid is an addition rather than a substitution at time of order.

Installation wants care. Use a 5/32in or 4mm Allen wrench on the stainless button head bolts, a 7/16in wrench on the flange head nuts beneath the perimeter bolts, and a micro screwdriver for the Phillips screws holding the inspection plate. Torque the perimeter bolts to 6.8Nm, about 60in-lbs, and do not overtighten anything, since excess load will crack the carbon resin. If a drop-in pump assembly such as an FCST-X is already fitted, follow that unit's own removal instructions, and note a new gasket may be required, part number 18-0015.

Kit Includes

• One dry carbon fiber fuel cell lid
• NOT included: fasteners, which are reused from the fuel cell, and the fuel cell itself

Applications

• 20-0606 RA-Series 6 gallon fuel cell
• 20-0611 RA-Series 10.5 gallon spare tire fuel cell
• 20-0622 RA-Series 22 gallon fuel cell

Important Notes

• These lids do NOT fit fuel cells manufactured by other companies
• Confirm with your sanctioning body that carbon fiber is permitted for the fuel cell enclosure
• The standard aluminum lid cannot be exchanged
• Do not overtighten; over-torquing can crack the carbon fiber resin
• A replacement gasket (18-0015) may be needed when removing a drop-in pump assembly
