Radium Dry Break Dust Cap | Universal (20-0604)

Every time you open a dry break to refuel, whatever is sitting on the receiver goes into the tank with the fuel.

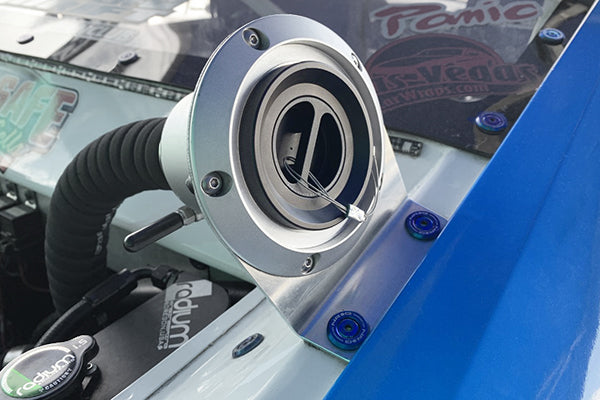

The Radium Engineering dry break dust cap installs into a Radium female dry break and keeps dirt and debris out of the receiver between fills, which matters most on dirt, rallycross, and endurance cars where the fill point collects everything the track throws at it. The cap vents, so tank pressure still balances with it fitted, and a tether keeps it attached to the car rather than in the gravel.

Features

• Installs into any Radium female dry break receiver
• Vented to balance internal fuel tank pressure changes
• Anodized aluminum with stainless steel hardware
• Tether assembly with cord, crimp sleeve, and mounting ring
• Compatible with all fuel types: leaded and unleaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85

The Details

Because it vents rather than sealing, this cap can stay fitted during normal running without trapping pressure in the cell. Fit the tether when you install it; a loose cap on a hot pit lane is a cap you will lose. For protecting the male probe on the dump can side instead, the 15-0004 probe cover is the matching part.

Kit Includes

• Dust cap, tether cord, crimp sleeve, and mounting ring

Applications

• 20-1004-V, 20-1104-V, and 20-1204-V remote mount dry break fillers
• 20-0495-V direct mount dry break filler
