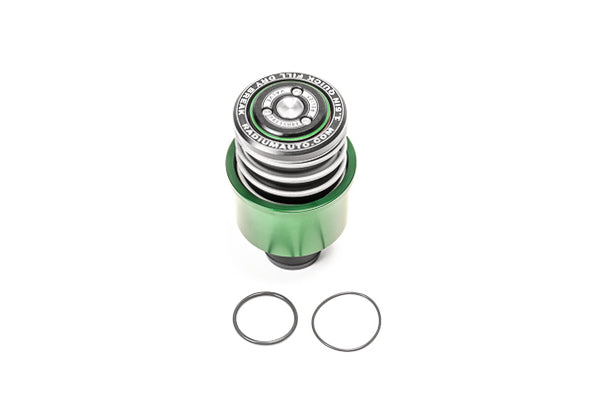

Radium Dry Break 1.5in Male PRV | Universal (20-0996)

Twenty seconds at the pump stop is the difference between a good stint and a bad one, and spilled fuel on hot bodywork is worse than either.

The Radium Engineering dry break 1.5in male probe with PRV installs onto the fill spout of a dump can and is the half you carry. When it meshes with a female receiver on the car, both valve seals open and close on synchronized timing, so fuel moves fast and nothing escapes at either end. Anodized aluminum with stainless hardware and a 1.5 inch OD barb, with Aflas O-rings for methanol compatibility.

What You'll Feel

• Fast, clean fills with no funnel, no spill, and no wasted fuel on bodywork

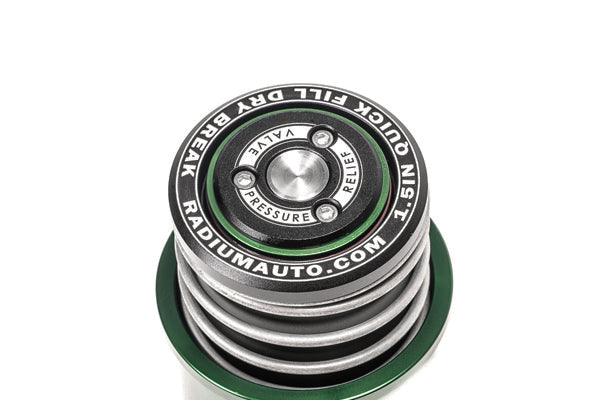

• A pressure relief valve that vents a warm sealed dump can before you fill: push down the center stainless valve to purge
• Methanol readiness from Aflas O-rings rather than standard seals
• Compatibility with any dry break of the same size, not just Radium's

Features

• 1.5in male dry break probe with integrated pressure relief valve
• 1.5in OD barb for dump can fill spout, 1.5in filler hose requirement
• Anodized aluminum with stainless steel hardware
• Aflas O-rings for methanol use
• Compatible with all fuel types: leaded and unleaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85

The Details

This is the probe, not the receiver. It mates to the 20-0549-V receptacle and to any Radium female filler built around it, including the 20-0495-V direct mount and the remote mount housings. Pair the system with a Radium DSV valve (20-0535) and filling becomes genuinely hands-off, since vented airflow shuts down automatically when the cell is full. The 15-0004 probe cover keeps dirt off the dynamic sealing elements between fills, which matters more than it sounds when the can lives in a trailer.

Kit Includes

• Dry break probe with PRV
• Aflas O-rings for methanol use
• NOT included: dump can, filler hose, and the female receiver on the vehicle

Applications

• Universal, any dump can or fuel jug with a 1.5in fill spout
• Replacement probe for Radium dump cans
• Mates to 20-0495-V, 20-0504-V, and 20-0549-V female dry breaks
