Radium DIY PTFE Hose Kit and Hose Ends | 10AN Universal (20-1210 / 14-1631 / 14-1632 / 14-1633)

Build your own PTFE lines and stop paying for pre-made hose in the wrong length.

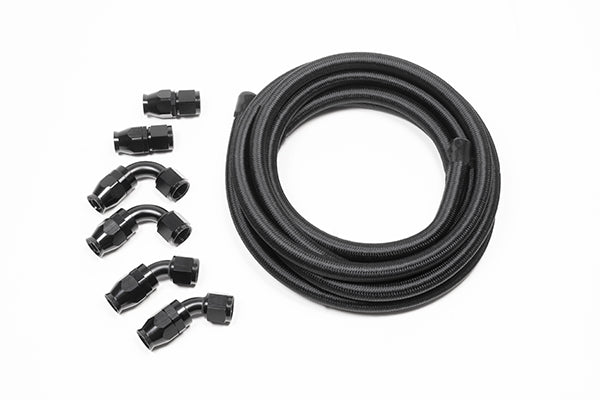

The Radium Engineering DIY PTFE hose kit supplies 10AN PTFE hose with a black carbon finish plus the hose ends to build custom lines to your own lengths. Individual hose ends are also available separately in straight, 45 degree, and 90 degree, so a build can be extended or a routing change accommodated without buying another kit.

Choose Your Part

• 10AN universal PTFE hose kit, black carbon (20-1210): hose plus hose ends
• 10AN hose end, straight (14-1631)
• 10AN hose end, 45 degree (14-1632)
• 10AN hose end, 90 degree (14-1633)

What You'll Feel

• Lines cut to the length your car actually needs
• PTFE that handles E85 and methanol without permeation
• Angled ends to solve routing rather than bending hose into a radius it dislikes
• Hose ends that can be reused with a fresh ferrule

Features

• 10AN PTFE hose with black carbon outer finish
• Hose ends in straight, 45 degree, and 90 degree
• Compatible with all fuel types including E85 and methanol

The Details

PTFE is the right choice wherever permeation matters, which on an alcohol-fuelled car is everywhere. Building your own lines means no compromise on length, and the angled ends let you approach a fitting from the direction that keeps the hose off hot parts and away from suspension travel.

One consumable to know about: the ferrule inside a PTFE hose end deforms on assembly, so if you take a line apart and rebuild it on new hose, fit a fresh ferrule. Radium sells replacements in packs of four.

Kit Includes

• 20-1210: 10AN PTFE hose and hose ends
• Individual hose ends sold separately

Applications

• Universal, custom 10AN fuel line fabrication

Important Notes

• Replace the ferrule when reassembling a hose end on new hose
