Radium Catch Can Petcock Drain Kit (20-0024)

Draining a catch can should take thirty seconds, not a socket set and skinned knuckles.

If your Radium catch can sits somewhere you cannot easily unscrew the reservoir, emptying it becomes a chore you postpone, which defeats the point of running one. The Radium Engineering Catch Can Petcock Drain Kit adds a ball valve on a hose run to the can's 4AN ORB bottom port, so you drain from wherever you route the valve, no disassembly required. Turn the valve, catch the contents, done.

What You'll Feel

• Catch can maintenance you actually keep up with, because it takes seconds
• Draining from under the car or an accessible corner of the bay, wherever you route the valve
• No more unbolting or unscrewing the canister just to empty it
• A positive-sealing ball valve between the can and the outside world

Features

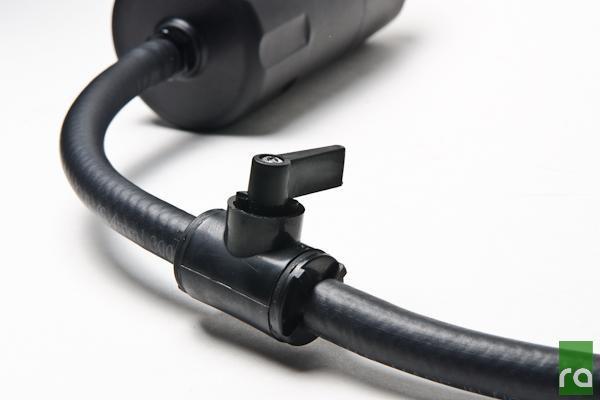

• Ball valve petcock for quick remote draining of Radium catch cans
• 4AN ORB to barb fitting installs in the can's bottom drain port, replacing the factory 4AN plug
• Hose cuts to length for both the can-to-valve and valve-to-drain-point runs
• Spring clamps secure the hose at the valve; no clamp needed at the can's barb
• Compatible with all Fluid Lock and standard Radium catch cans, VTE and VTA Competition cans, and any reservoir with a 4AN ORB drain port

The Details

Installation is simple: remove the 4AN ORB plug from the bottom of the catch can, thread in the included barb fitting, and run hose to wherever you want the valve to live. Cut the first section to set the petcock's location, cut the second to set the draining point, often routed toward the underside of the car, and secure both at the valve with the spring clamps. From then on, emptying the can means opening the valve over a drain pan. One honest caveat Radium states plainly: vehicle-specific catch can kits mount in tight quarters, and many do not have room below the can for the fitting, hose, and valve. Check the clearance under your can before ordering. Universal and competition can installs with open space below are the natural fit.

Kit Includes

• 1x Ball valve petcock
• 1x 4AN ORB to barb fitting
• Drain hose (cut to length)
• Spring clamps

Applications

• All Radium Fluid Lock and standard catch cans
• Radium VTE and VTA Competition catch cans
• Any can or reservoir with a 4AN ORB drain port and clearance below for the valve and hose
