Radium 8AN Adapter Fittings | Universal (20-1000-0608 / 14-0413 / 14-0908)

Three 8AN adapters that solve three different routing problems.

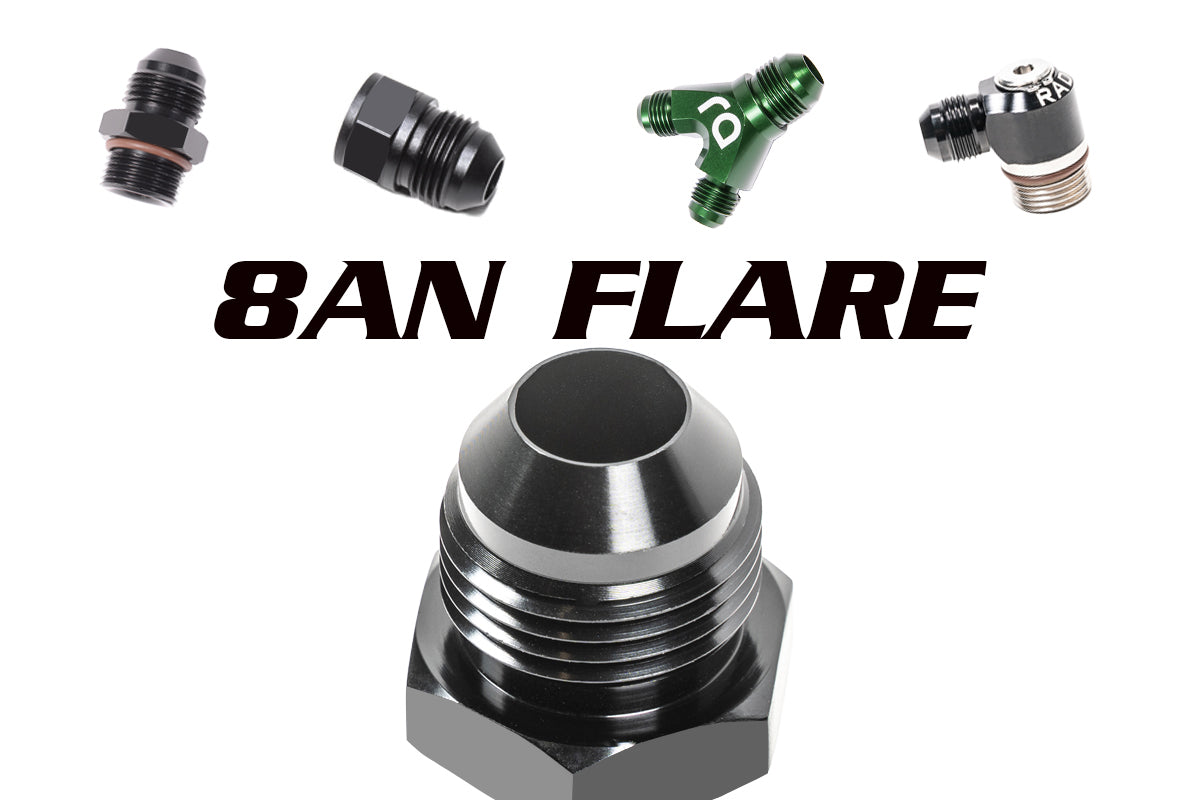

Radium Engineering 8AN adapter fittings for joining 8AN plumbing to barbs, other 8AN fittings, and ORB ports. Anodized aluminum throughout, with O-ring sealed ORB threads rather than tapered pipe thread.

Choose Your Fitting

• 6AN ORB swivel banjo to 8AN male (20-1000-0608): swivels to any angle, stepping a 6AN ORB port up to 8AN male
• 8AN female to 8.5mm barb (14-0413): takes 8.5mm hose off an 8AN female fitting

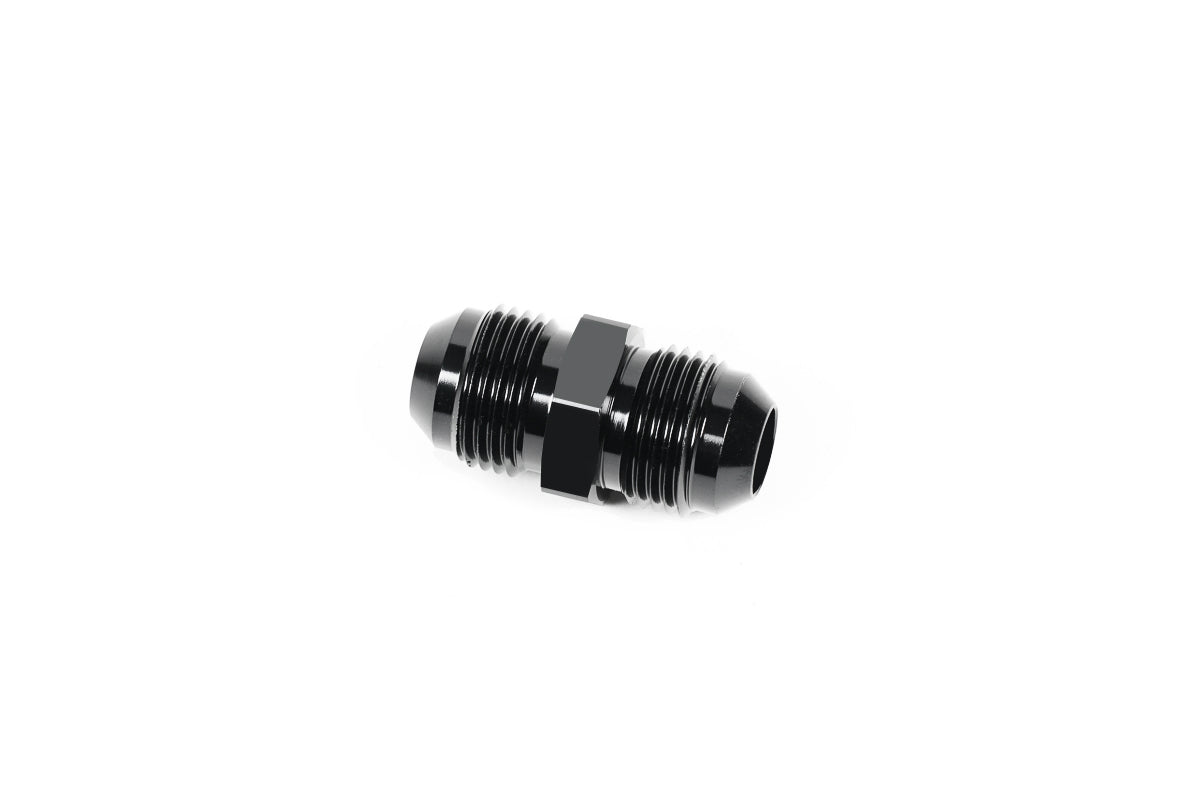

• 8AN male to 8AN male fitting (14-0908): joins two 8AN female connections

Features

• Anodized aluminum construction
• Swivel banjo option for 360 degree hose orientation
• O-ring sealed ORB thread, not tapered pipe thread
• Fuel and ethanol compatible

The Details

The swivel banjo is the interesting one: it threads into a 6AN ORB port and lets the 8AN male outlet rotate, so a single part covers routing directions that would otherwise need several fixed-angle fittings. Note that swivel bodies sit deeper than a plain fitting, so check clearance if you are fitting one to a catch can.

The 14-0908 male-to-male union is the simplest part here and the one people forget they need: two hose ends both terminating in 8AN female cannot be joined without it.

Applications

• Universal, 8AN and 6AN ORB plumbing

Important Notes

• Check port depth clearance before fitting a swivel banjo to a catch can
