Radium 6AN ORB Swivel Banjo 8.5mm Barb Bulkhead to 3/8in SAE Male Universal 20-1000-06375-85

Vendor:Radium Engineering

Radium 6AN ORB Swivel Banjo 8.5mm Barb Bulkhead To 3/8in SAE Male | Universal (20-1000-06375-85)

SKU: 20-1000-06375-85

$33.20
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Barb on one face, quick connect on the other, and the whole thing swivels.

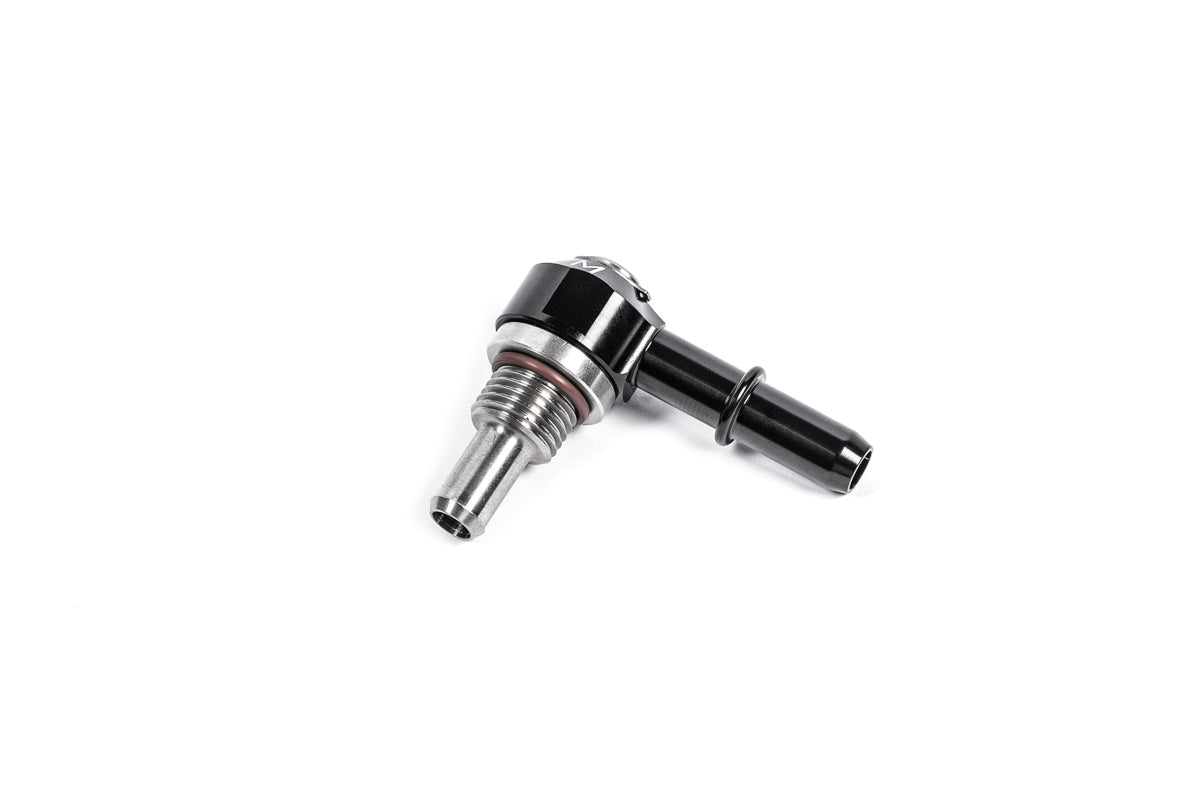

The Radium Engineering 6AN ORB swivel banjo, 8.5mm barb bulkhead to 3/8in SAE male passes through a panel on a 6AN ORB swivel banjo body, presenting an 8.5mm hose barb on one side and a 3/8 inch SAE quick connect male on the other. The swivel body clocks the outlet to any angle after torquing. Machined from billet aluminum and anodized for corrosion protection.

Features

  • 6AN ORB (9/16in-18) swivel banjo body, clocks to any angle
  • One side: 8.5mm hose barb bulkhead
  • Other side: 3/8in SAE quick connect male
  • Billet aluminum, type-II anodized
  • Compatible with all fuel types including E85

The Details

SAE quick connect sizing is measured by the outside diameter of the male fitting: 0.3750 inch is 3/8. Always lubricate the mating O-rings with a light amount of oil before installing, and secure the barb end with a proper fuel injection clamp. The 8.5mm barb suits 5/16 inch hose, which is the common pairing on surge tank and catch can penetrations.

Applications

  • Universal, any bulkhead passage joining 8.5mm hose to a 3/8in SAE quick connect line
