Radium 6AN ORB Bulkhead 3/8in SAE Male to 5/16in Barb Universal 14-0595

Vendor:Radium Engineering

Radium 6AN ORB Bulkhead 3/8in SAE Male To 5/16in Barb | Universal (14-0595)

SKU: 14-0595

$18.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Through the panel on one side, onto hose on the other, in a single sealed part.

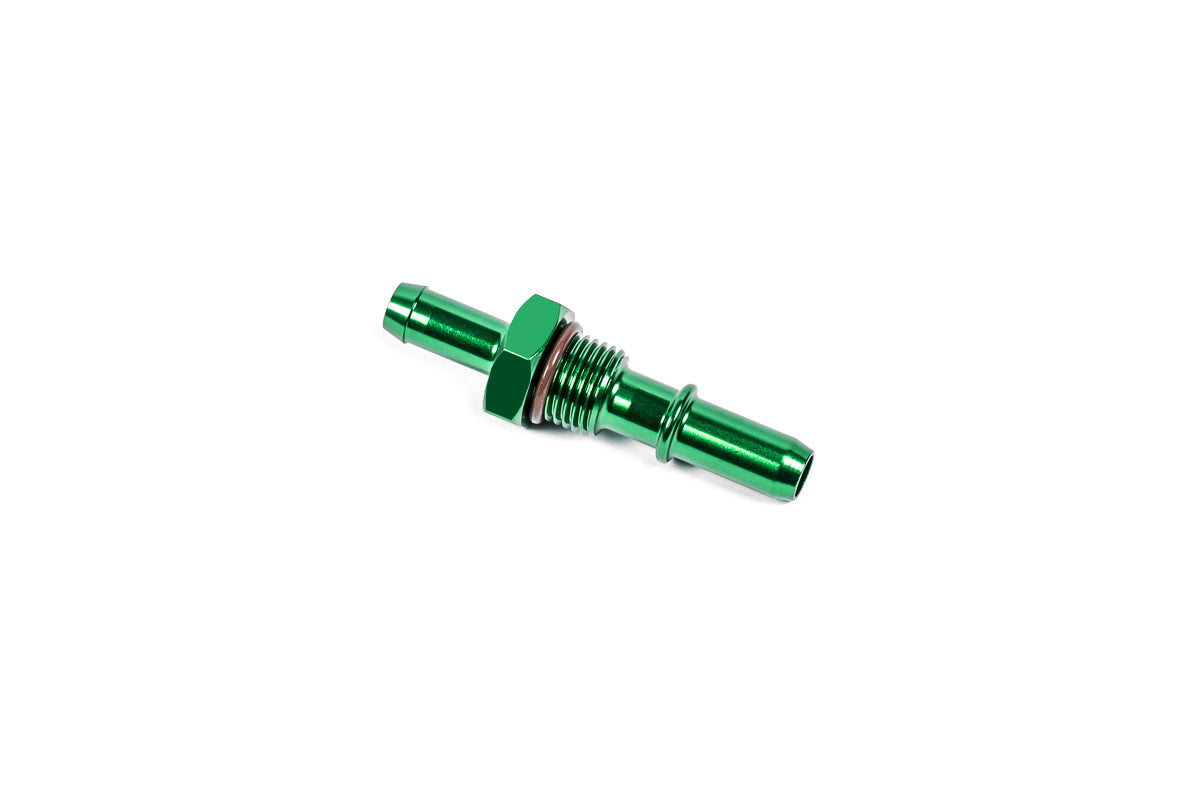

The Radium Engineering 6AN ORB bulkhead, 3/8in SAE male to 5/16in barb passes through a panel or tank wall on a 6AN ORB bulkhead body, presenting a 3/8 inch SAE quick connect male on one side for the factory line and a 5/16 inch hose barb on the other. Machined from billet aluminum and anodized for corrosion protection.

Features

  • Bulkhead body: 6AN ORB (9/16in-18)
  • One side: 3/8in SAE quick connect male
  • Other side: 5/16in hose barb
  • Billet aluminum, type-II anodized
  • Compatible with all fuel types including E85

The Details

SAE quick connect sizing is measured by the outside diameter of the male fitting: 0.3125 inch is 5/16, 0.3750 is 3/8. Measure rather than guessing, since the two look nearly identical and do not interchange. Always lubricate the mating O-rings with a light amount of oil before installing, and secure the barb end with a proper fuel injection clamp.

Applications

  • Universal, any 6AN ORB bulkhead passage joining a 3/8in SAE line to 5/16in hose
