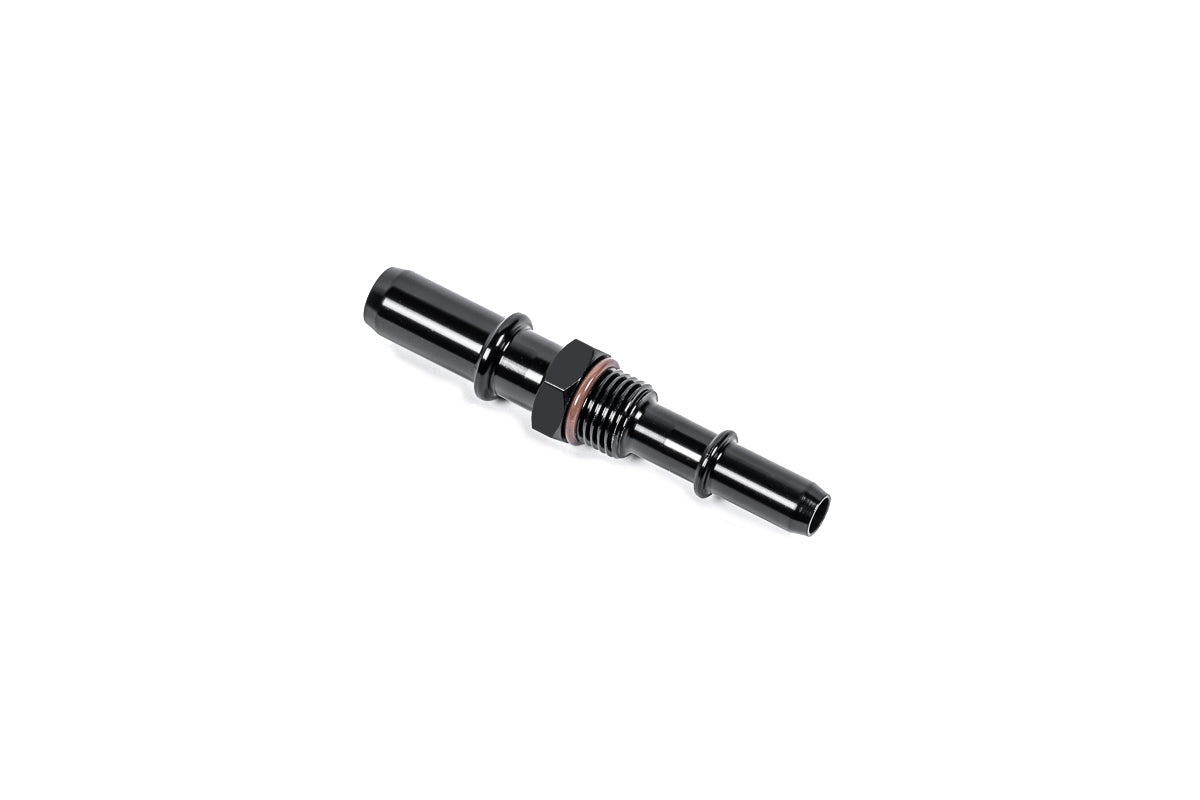

Radium 6AN ORB Bulkhead 1/2in SAE Male to 3/8in SAE Male Universal 14-0563

Vendor:Radium Engineering

Radium 6AN ORB Bulkhead 1/2in SAE Male To 3/8in SAE Male | Universal (14-0563)

SKU: 14-0563

$18.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Passing a fuel line through a bulkhead usually means two fittings and a leak path; this is one fitting and none.

The Radium Engineering 6AN ORB bulkhead, 1/2in SAE male to 3/8in SAE male passes through a panel or tank wall on a 6AN ORB bulkhead body, presenting a 1/2 inch SAE quick connect male on one side and a 3/8 inch SAE quick connect male on the other. It carries a factory quick connect line through a barrier and steps the size at the same time, without adapters stacked on either face. Machined from billet aluminum and anodized for corrosion protection.

Features

  • Bulkhead body: 6AN ORB (9/16in-18)
  • One side: 1/2in SAE quick connect male
  • Other side: 3/8in SAE quick connect male
  • Billet aluminum, type-II anodized
  • Compatible with all fuel types including E85

The Details

SAE quick connect sizing is measured by the outside diameter of the male fitting: 0.3125 inch is 5/16, 0.3750 is 3/8, 0.5000 is 1/2, 0.6250 is 5/8. Confirm both sides before ordering, since this fitting is size-specific on each face. Always lubricate the mating O-rings with a light amount of oil before installing.

Applications

  • Universal, any 6AN ORB bulkhead passage joining a 1/2in SAE line to a 3/8in SAE line
