Radium 2-Piece 60mm Fuel Pump/Filter Clamps - Double (20-0122)

SKU: 20-0122

Sale price$56.95Regular price $59.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Twin filters or a filter-and-pump pair deserve one clean mount, not two mismatched clamps.

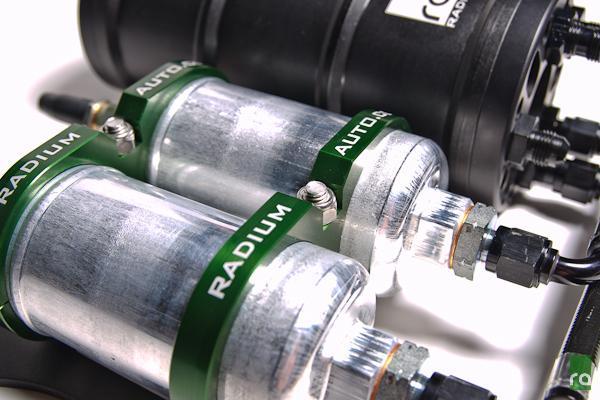

The Radium Engineering 2-Piece 60mm Dual Fuel Pump/Filter Clamp is machined from 6061 billet aluminum specifically to hold two 60mm components side by side: two Radium high flow filters, or one filter next to a Bosch 044 pump. A stainless steel M8 bolt and lock nut draw the assembly together, and the whole clamp mounts to a flat surface. Bright-dip anodized in Radium green with laser engraved logos, it turns a cluttered corner of the fuel system into a deliberate piece of the build.

What You'll Feel

  • Two components rigidly mounted as one unit, with no independent movement or rattle
  • Shorter, cleaner plumbing between paired components sitting in fixed alignment
  • Straightforward service, with the halves splitting to release both components at once
  • A signature Radium green centerpiece where the fuel system does its work

Features

  • 2-piece design machined from 6061 billet aluminum for two 60mm bodies
  • Holds 2 Radium high flow fuel filters, or 1 filter and 1 Bosch 044 fuel pump
  • Stainless steel M8 bolt and lock nut included
  • Designed to mount to a flat surface
  • Bright-dip anodized Radium green with laser engraved logos

The Details

Paired 60mm components are common in serious fuel systems: a pre-pump strainer feeding a Bosch 044 with a fine filter after it, or staged filters on a high-flow feed. Mounting them as one assembly keeps the connecting plumbing short and unstressed, and this clamp's geometry fixes their spacing so hoses and fittings never carry the load. The flat-surface requirement is worth planning around, since the clamp needs full contact to spread its load correctly; a trunk floor, fabricated bracket, or chassis plate all work. As with the single clamp, position components so end caps stay accessible, letting you service filter elements without disturbing the mount. Sold as the clamp only; filters and pumps are separate.

Kit Includes

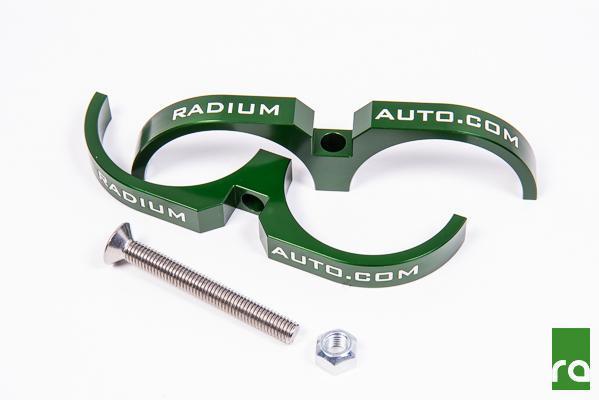

  • 1x 2-piece 60mm dual billet aluminum clamp
  • 1x Stainless steel M8 bolt with lock nut

Applications

  • Universal: paired 60mm components on a flat mounting surface
  • 2x Radium high flow fuel filters, or 1x filter with 1x Bosch 044 fuel pump
