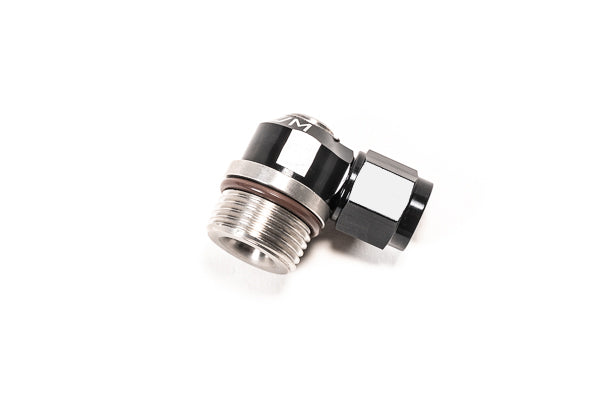

Radium 10AN ORB Swivel Banjo to 6AN Female Universal 20-1000-1006F

Vendor:Radium Engineering

Radium 10AN ORB Swivel Banjo To 6AN Female | Universal (20-1000-1006F)

SKU: 20-1000-1006F

$33.20
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Sometimes the hose end is female and the port is 10AN, and nothing in the drawer bridges the two at an angle.

The Radium Engineering 10AN ORB swivel banjo to 6AN female fitting adapts a 10AN ORB port down to a 6AN female connection on a swivel banjo body, letting a 6AN male hose end thread straight in while the outlet clocks to any angle after torquing. Machined from billet aluminum and anodized for corrosion protection.

Features

  • Inlet: 10AN ORB (7/8in-14) male thread
  • Outlet: 6AN female
  • Swivel banjo body clocks the outlet to any angle
  • Billet aluminum, type-II anodized
  • Compatible with all fuel types including E85

The Details

The female outlet accepts a 6AN male hose end or a 37 degree flare male directly, rather than requiring another adapter to reverse gender. The 10AN ORB inlet suits catch can and surge tank ports, which is where this size combination usually comes up. For an 8AN ORB port, use 20-1000-0806F. Always lubricate the mating O-rings with a light amount of oil before installing.

Applications

  • Universal, any 10AN ORB port connecting to a 6AN male hose end
