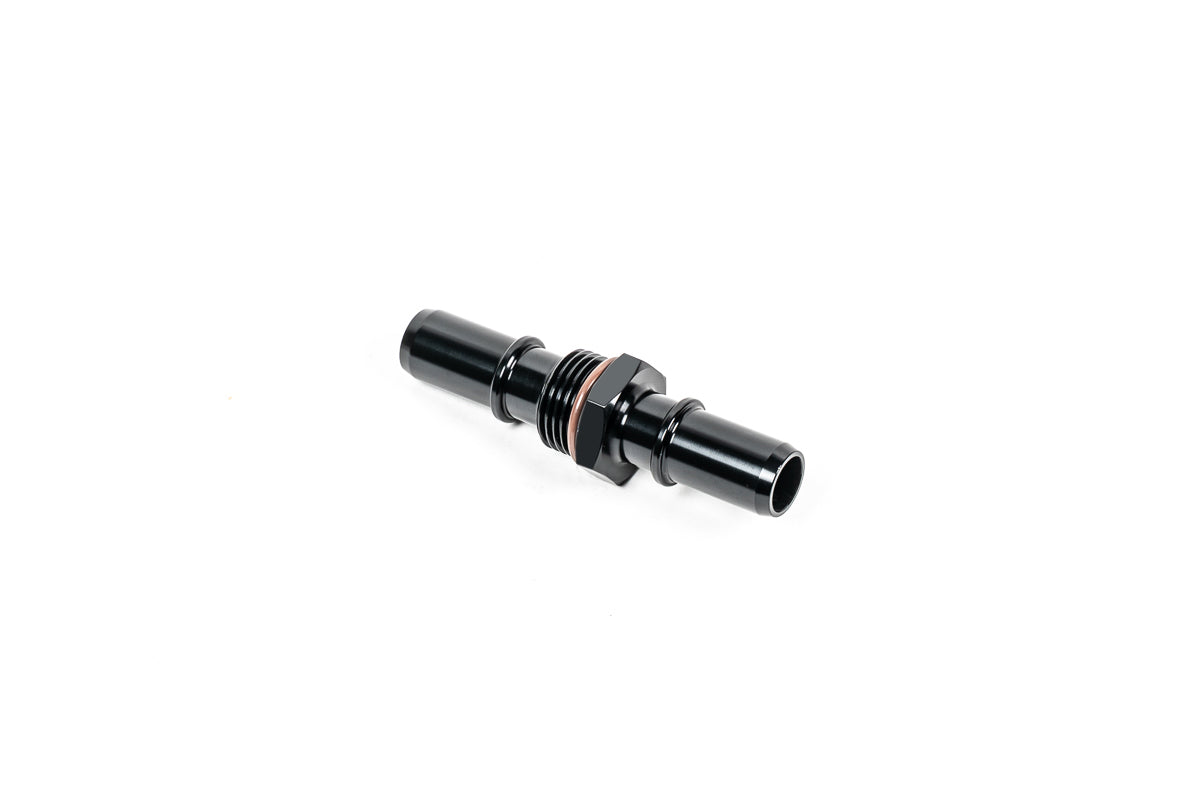

Radium 10AN ORB Bulkhead 5/8in SAE Male to Male Universal 14-0754

Vendor:Radium Engineering

Radium 10AN ORB Bulkhead 5/8in SAE Male To Male | Universal (14-0754)

SKU: 14-0754

$23.70
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Five eighths is the size that shows up on filler and vent plumbing, and it needs a bulkhead built for the volume.

The Radium Engineering 10AN ORB bulkhead, 5/8in SAE male to 5/8in SAE male passes a 5/8 inch SAE quick connect circuit through a panel or tank wall on a 10AN ORB bulkhead body, with a matching 5/8 inch SAE quick connect male on each side. The larger 10AN ORB body keeps full area through the passage rather than necking the line down at the wall. Machined from billet aluminum and anodized for corrosion protection.

Features

  • Bulkhead body: 10AN ORB (7/8in-14)
  • Both sides: 5/8in SAE quick connect male
  • Billet aluminum, type-II anodized
  • Compatible with all fuel types including E85

The Details

SAE quick connect sizing is measured by the outside diameter of the male fitting: 0.6250 inch is 5/8. Confirm before ordering rather than guessing from hose diameter. Always lubricate the mating O-rings with a light amount of oil before installing. This is currently the only 5/8 inch SAE fitting in Radium's quick connect range.

Applications

  • Universal, any 10AN ORB bulkhead passage carrying a 5/8in SAE quick connect line
