Nexus S2/S3 Plug 'n' Play Adapter Harness - Mazda RX7 FD S6 (HT-186338)

Put a Haltech Nexus in a Series 6 FD without cutting a single factory wire.

The Haltech Nexus S2/S3 Plug 'n' Play Adapter Harness for the Mazda RX-7 FD Series 6 sits between the factory engine harness and a Nexus S2 or S3 ECU. One end carries the FD's two-row factory ECU connectors, the other plugs straight into the Nexus, so the factory loom stays untouched and the swap is fully reversible. A typical install is a few hours, not a weekend of pinouts and splices.

This is the bare adapter for people who already own a Nexus S2 or S3, or who are buying the ECU separately. If you want the ECU in the box, see the Nexus S3 Plug 'n' Play Adapter Harness Kit for the RX-7 FD S6 (HT-213307).

What You'll Feel

• A 13B-REW that starts and idles on the Haltech base map the first time the key turns
• Full control of the factory sequential twin-turbo system, or a clean single-turbo conversion, from the same ECU
• Factory connectors that click home instead of a loom you have to rebuild
• A stock harness you can return to at any time

Features

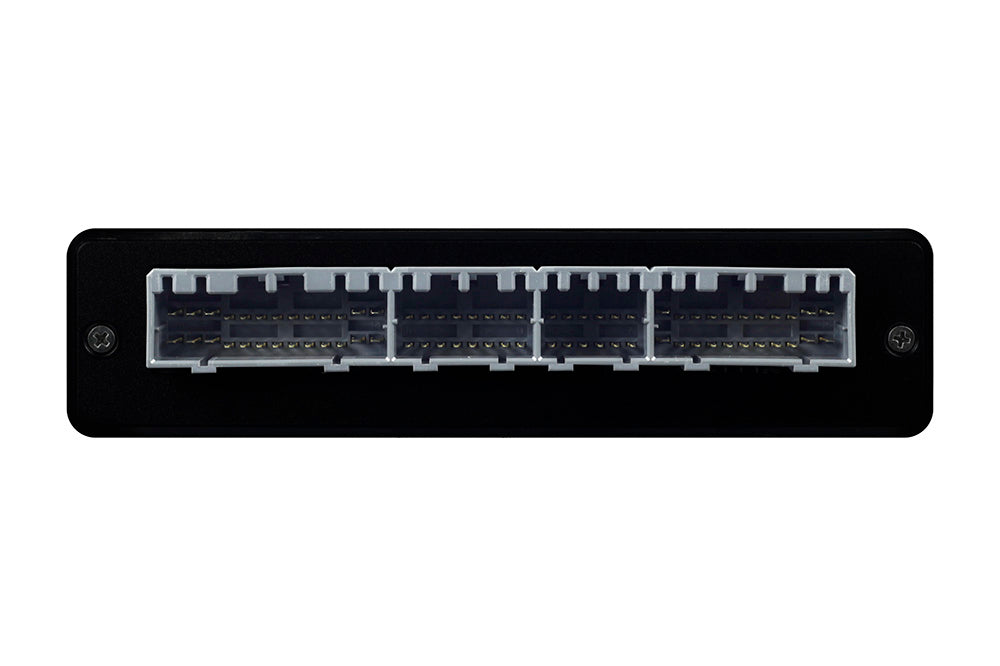

• Injection-moulded plug 'n' play adapter with the FD3S Series 6 two-row ECU connector layout
• Suits the Haltech Nexus S2 and Nexus S3 ECUs
• No cutting or splicing of the factory harness, fully reversible
• Includes an M14 x 1.5 air temp sensor with plug and pins, so the ECU sees real intake temperature from day one
• Auxiliary I/O 16-pin Tyco plug and pins for extra sensors and outputs
• Haltech quick-start guide walks through the fit
• Backed by the Haltech limited warranty

The Details

Part number HT-186338. This adapter is for the FD3S Series 6 (1992-1995) RX-7 with the two-row factory ECU plug and a manual transmission only. Series 7 and Series 8 cars (1996-2002) use a different ECU connector and need the Series 7/8 adapter (HT-186339). The harness connects to the factory loom, the Nexus ECU, and the supplied air temp sensor; any additional sensors (wideband, fuel and oil pressure) wire in through the auxiliary I/O plug. Unsure which series you have, or running an automatic? Send us the VIN or a photo of the ECU plug before ordering and we will confirm.

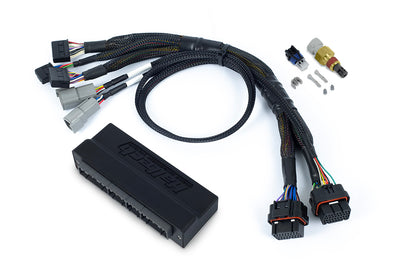

Kit Includes

• 1x Injection-moulded plastic plug 'n' play adapter harness
• 1x M14 x 1.5 air temp sensor with matching plug and pins
• 1x Auxiliary I/O 16-pin Tyco plug and pins

Applications

• 1993-1995 Mazda RX-7 FD3S Series 6, 13B-REW, manual transmission (JDM 1992-1995)
• Requires a Haltech Nexus S2 or Nexus S3 ECU (sold separately)

Tuned By Shawn is a Platinum Haltech Dealer with in-house wiring and remote tuning. If this is part of a larger FD build, ask and we will spec the full parts list.
