NEXUS Rebel JZ (HT-220205)
Black Friday Sale
Priced for Black Friday
Ends in
Sale price$2,370.00Regular price
$2,495.00
Shipping calculated at checkout.
SKU: HT-220205
ECU
Engine management
Terminated Harness
Engine side ready
Complete Kit
ECU plus harness
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.
ECUs always ship FREE with Tuned By Shawn!
Manufacturer Limited Warranty
NEXUS Rebel JZ (HT-220205)
Sale price$2,370.00Regular price
$2,495.00
Product details
Description

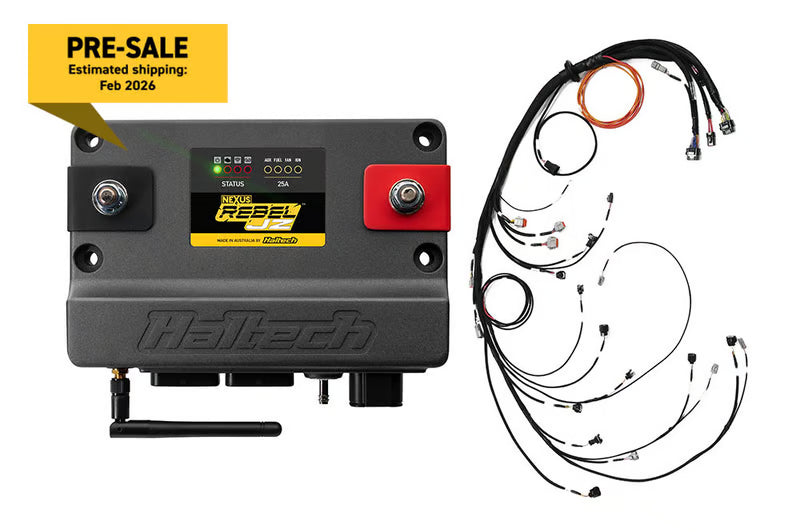

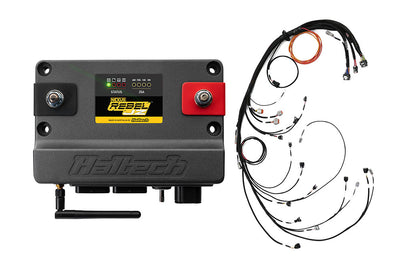

With the Rebel JZ, all the hard work is done. It is the best, quickest, and easiest way to get your JZ swap up and running!
ECU designed from the ground up to suit Toyotas popular JZ engine platform
Start-up is a breeze thanks to the new Set-up Wizard in our NSP software

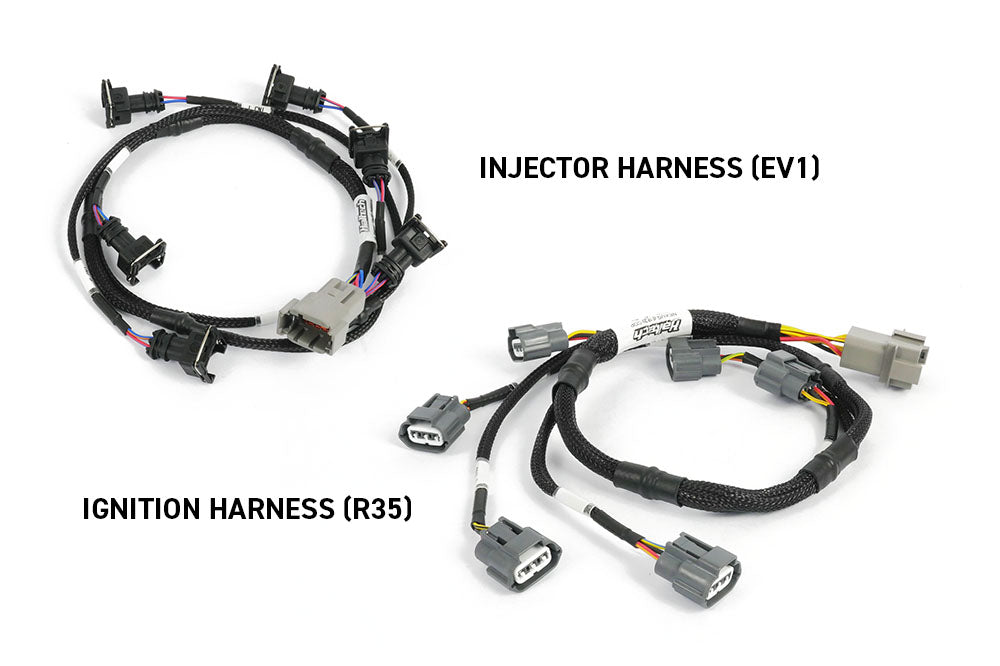

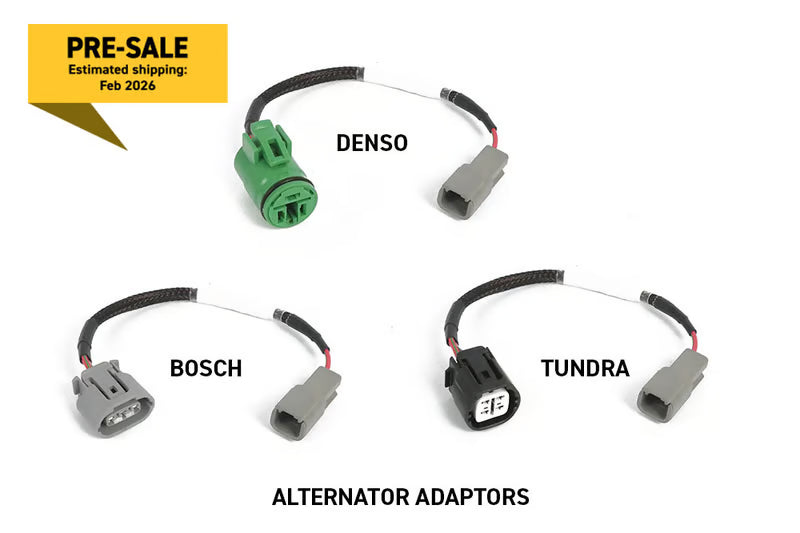

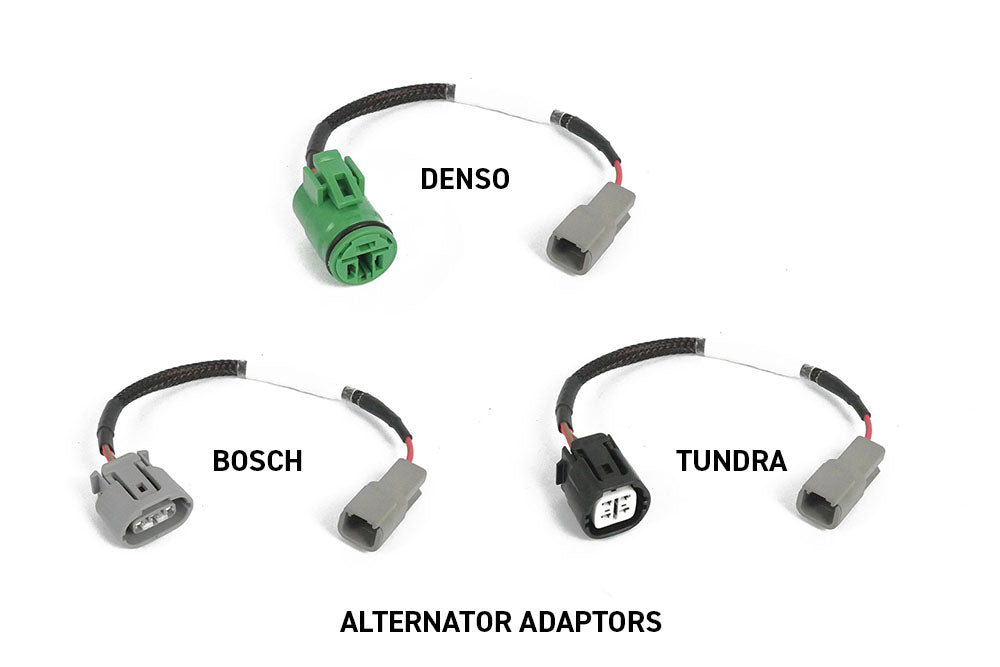

Comes complete with an easy-to-install harness to suit multiple Toyota JZ applications
Easy integration with Haltech dashes, PDMs, sensor kits, and accessories
Kit Supports:
1JZ-GTE Non-VVT-i
1JZ-GE VVT-i
1JZ-GTE VVT-i
2JZ-GTE Non-VVT-i
2JZ-GE VVT-i
2JZ-GTE VVT-i

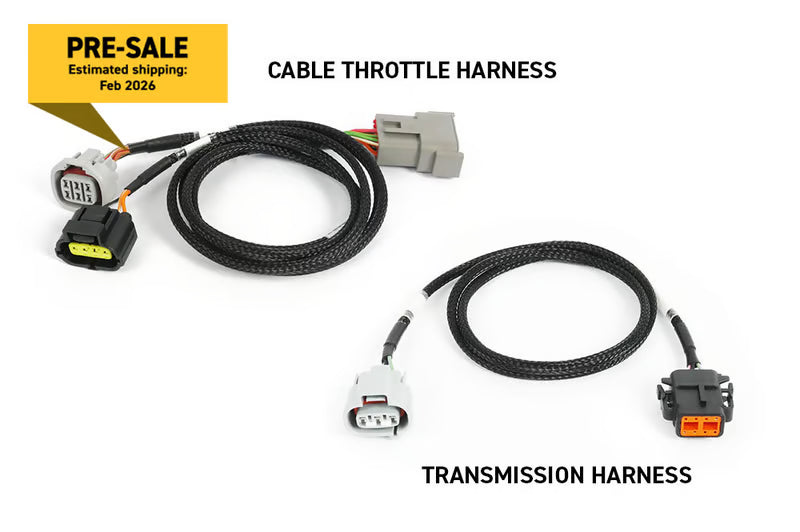

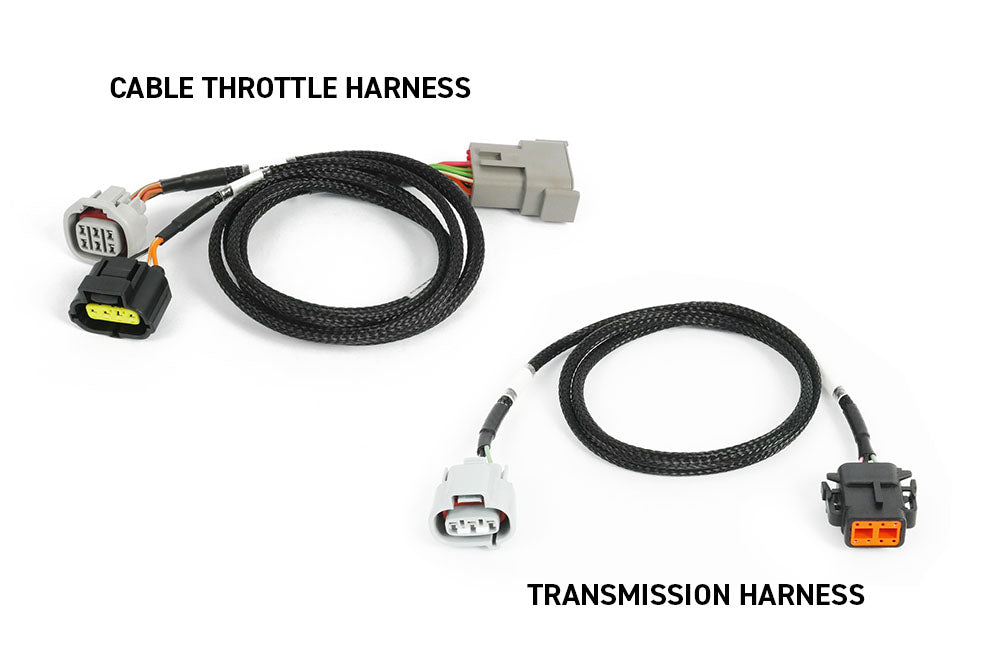

Manual Transmissions Only - Kit supplied with harness to suit R154 Transmission
Please note

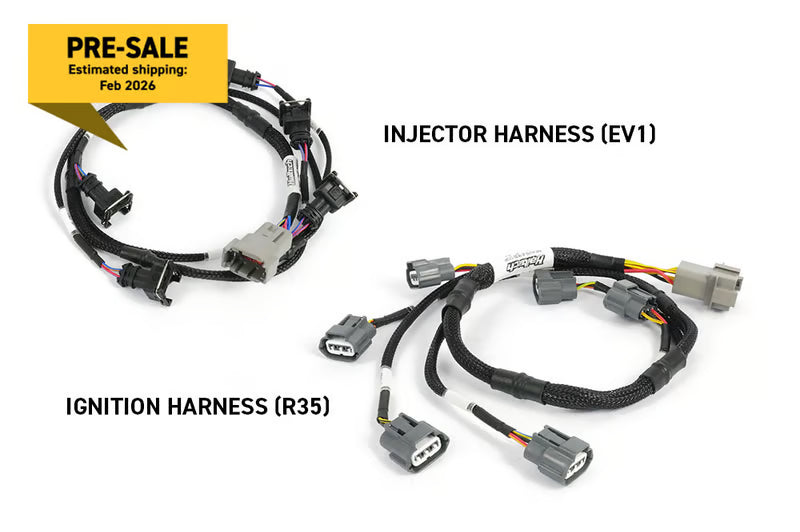

Harness is supplied with ignition harness to suit R35 Coil conversion, Converison kit available to be purchased seperately from Haltech see part number - HT-120200
Does Not Support
Toyota Electronic Throttle Control System - Intelligent (ETCS-i) - aka semi DBW, Distributor ignition systems, Wasted spark ignition systems, Low impedance injectors , Sequential twin turbo setup, 1JZ OEM Coolant Temperature Sensor
Rebel JZ Harness Pinout
Full pin-by-pin map of the three Nexus Rebel JZ ECU connectors on the HT-186400 terminated harness included in this kit.
Connector A
34-pin, Keyway Type 1 - injectors, ignition, outputs and CAN.
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
Main harness side view
| Pin | Function | Wire Color |
|---|---|---|
| A1 | Injector 1 | Blue |
| A2 | Injector 2 | Blue/Black |
| A3 | Injector 3 | Blue/Brown |
| A4 | Injector 4 | Blue/Red |
| A5 | Injector 5 | Blue/Orange |
| A6 | Injector 6 | Blue/Yellow |
| A7 | Cam control | Blue/Green |
| A8 | Boost control | Blue/Violet |
| A9 | Cabin / DPO 1 | Violet/Black |
| A10 | Power ground output | Black |
| A11 | Power ground output | Black |
| A12 | Cabin / DPO 2 | Violet/Brown |
| A13 | Ignition switch input | Pink |
| A14 | Cabin / DPO 3 | Violet/Red |
| A15 | Cabin / DPO 4 | Violet/Orange |
| A16 | Spare / DPO 5 | Violet/Yellow |
| A17 | Tachometer output | Violet/Green |
| A18 | Transmission supply | Pink/Red |
| A19 | Throttle / IAC 1 | Brown/Black |
| A20 | Throttle / IAC 2 | Brown/Red |
| A21 | Throttle / IAC 3 | Brown/Green |
| A22 | Throttle / IAC 4 | Brown/Pink |
| A23 | CAN 1 High | White |
| A24 | CAN 1 Low | Blue |
| A25 | CAN supply | Pink/Brown |
| A26 | Constant power (12V) | Red |
| A27 | Ignition 1 | Yellow/Black |
| A28 | Ignition 2 | Yellow/Red |
| A29 | Ignition 3 | Yellow/Orange |
| A30 | Ignition 4 | Yellow/Green |
| A31 | Ignition 5 | Yellow/Brown |
| A32 | Ignition 6 | Yellow/Blue |
| A33 | Spare / Ignition 7 | Yellow/Violet |
| A34 | Spare / Ignition 8 | Yellow/Gray |
Connector C
34-pin, Keyway Type 2 - engine position, sensors, wideband and CAN 2.
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
C21
C22
C23
C24
C25
C26
C27
C28
C29
C30
C31
C32
C33
C34
Main harness side view

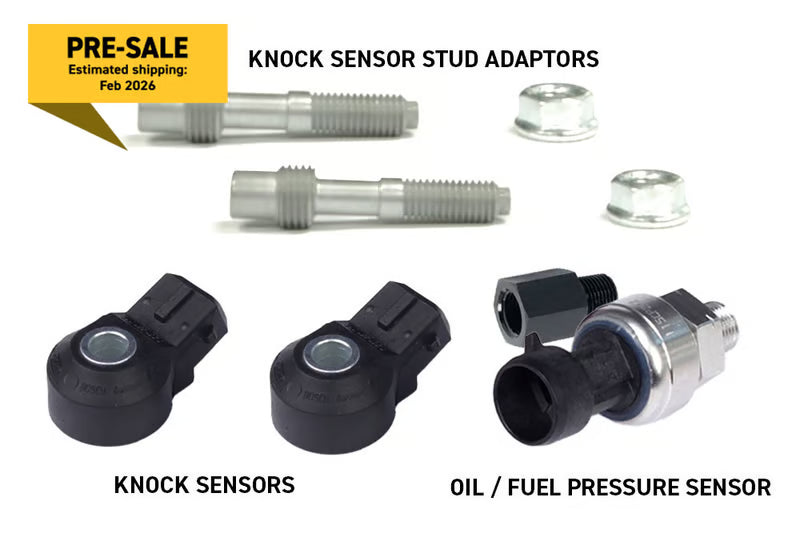

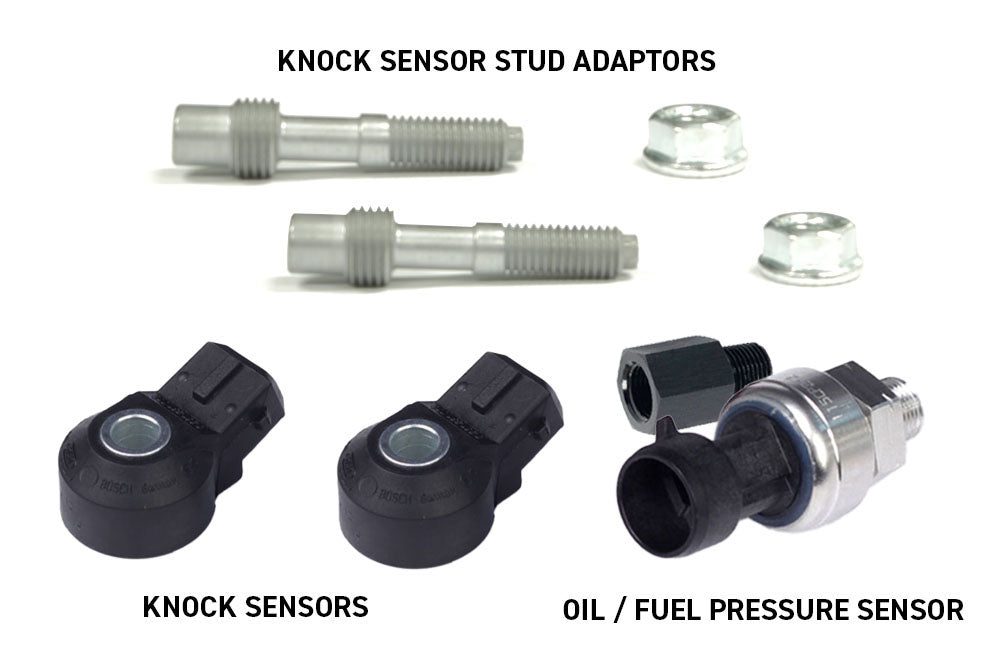

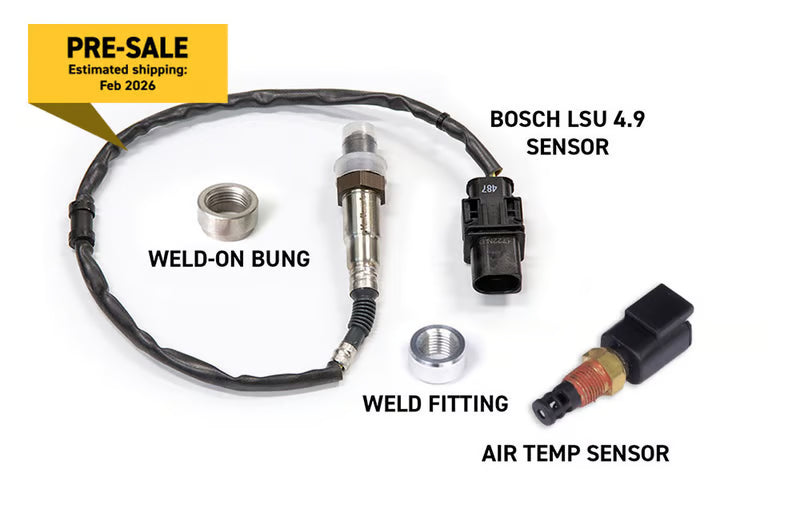

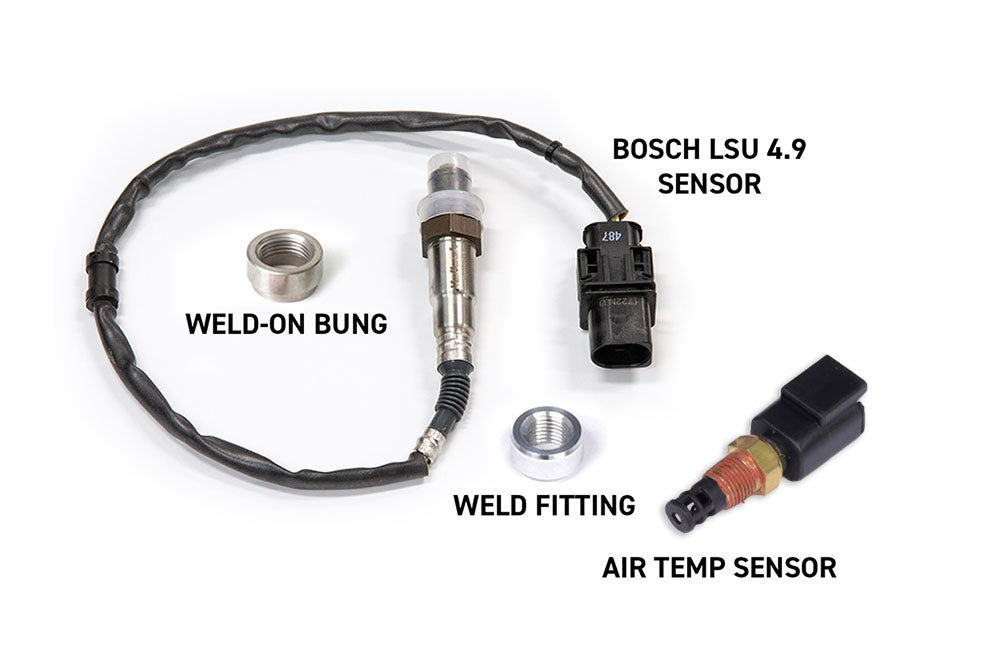

| Pin | Function | Wire Color |
|---|---|---|
| C1 | Trigger + | Yellow |
| C2 | Trigger - | Green |
| C3 | Home + | Yellow |
| C4 | Home - | Green |
| C5 | Cabin / SPI 1 | Gray/Brown |
| C6 | Spare / SPI 2 | Gray/Red |
| C7 | Home 2 (Non VVTi Only) | Yellow |
| C8 | Flex Fuel | Gray/Yellow |
| C9 | Unused | Unused |
| C10 | Cabin / AVI 1 | White |
| C11 | Cabin / AVI 2 | White/Yellow |
| C12 | Fuel pressure | White/Gray |
| C13 | Oil pressure | White/Violet |
| C14 | Spare / AVI 5 | White/Green |
| C15 | Throttle TPS 1 | White/Orange |
| C16 | Throttle TPS 2 | White/Black |
| C17 | Accel Pedal Pos 1 | White/Brown |
| C18 | Accel Pedal Pos 2 | White/Red |
| C19 | Unused | Unused |
| C20 | Transmission / VSS | Gray/L.Green |
| C21 | CAN 2 High | White |
| C22 | CAN 2 Low | Blue |
| C23 | Knock 1 | Black/Blue |
| C24 | Knock 2 | Black/Green |
| C25 | 5V sensor supply | Orange |
| C26 | Sensor ground | Black/White |
| C27 | Coolant temperature | L.Green |
| C28 | Air temperature | L.Green/Black |
| C29 | WBI 1 Heater + | Gray |
| C30 | WBI 1 Input | Yellow |
| C31 | WBI 1 Pump | Red |
| C32 | WBI 1 Nernst | Black |
| C33 | WBI 1 Heater - | White |
| C34 | WBI 1 Cal | Green |
Connector E
4-pin, DTP - starter, fuel pump, fan and switched 12V feeds.
E4
E1
E3
E2
Main harness side view
| Pin | Function | Wire Color |
|---|---|---|
| E1 | Starter HCO AX25+ | Red/Blue |
| E2 | Fuel pump | Red/Yellow |
| E3 | Fan | Red/Orange |
| E4 | Switched 12V | Red/Green |
Active function
Unused / spare position
Pinout data taken from the Haltech HT-186400 Nexus Rebel JZ terminated harness Quick Start Guide. Spare inputs and outputs can be terminated using the connector and pin pack supplied with the harness.
