Mechanical Products 175A Circuit Breaker - PDM Master Kill Switch (MP-175A-Breaker)
SKU: MP-175A-Breaker
$50.00
Shipping calculated at checkout.
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.
ECUs always ship FREE with Tuned By Shawn!
Manufacturer Limited Warranty
Mechanical Products 175A Circuit Breaker - PDM Master Kill Switch (MP-175A-Breaker)
$50.00
Product details
Description

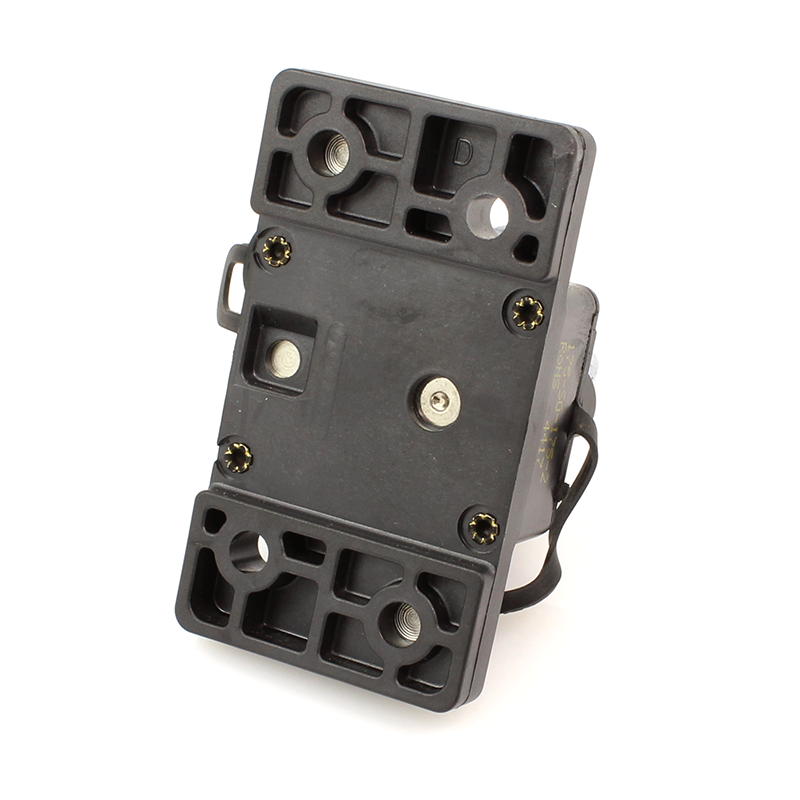

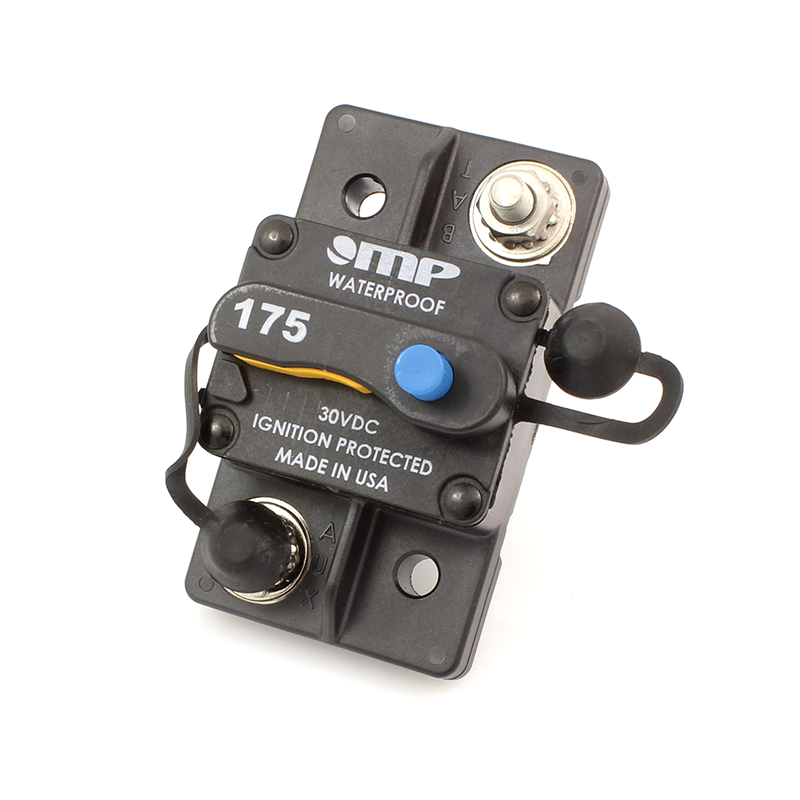

The Mechanical Products 175A circuit breaker is the breaker Rywire offers with its PDM race chassis harnesses. Mounted between the battery and the PDM power stud, it protects the main feed and doubles as a master kill or storage switch, since the reset lever can be switched off by hand.
Specifications
- Current rating: 175 A
- Series 17, Type III switchable reset, trip-free operation
- Rated 30 V DC (nominal voltage 48 V), SAE J1171 ignition protected
- Interrupt capacity to SAE J1625 and ABYC-E11
- IP67 dust and waterproof
- Heavy-duty design to Mil-STD-202 (corrosion, humidity, shock) and Mil-STD-204 (vibration)
- Surface mount with diagonal mounting holes and diagonally positioned 1/4 in studs, stainless steel sems nuts installed
Works With
- Rywire PDM race chassis harnesses (Honda/Acura and universal, 14-, 16- and 30-channel)
- Any 12 V race wiring that needs a resettable main breaker
What's Included
- 1x Mechanical Products 175A circuit breaker with stainless steel sems nuts
For off-road and competition use only.
