Injector Dynamics ID1750-XDS Fuel Injectors | Set of 6 | Multiple Fitments (1750.48.14.14.6)

An E85 build is only as good as the injectors feeding it.

Once boost and ethanol enter the picture, factory injectors become the first hard ceiling in the whole combination. The ID1750-XDS answers that with 1728cc/min of flow at 3.0 bar, compatibility with methanol, ethanol, and all known hydrocarbon fuels, delivered as a matched set of 6 for your application (see list below). Each set is flow matched using Dual Slope Matching and backed by full characterization data, so your ECU gets real numbers, not estimates. Fueling you can build a tune on.

What You'll Feel

• Steady AFRs when boost climbs, no lean spikes at the top of the pull
• Faster dyno sessions, because accurate injector data means less time chasing fuel trims
• Crisp part-throttle response instead of the surge and stumble big injectors are known for
• Stock-like idle and clean cold starts, even at this injector size
• Fuel trims that stay put season to season instead of drifting with the weather

Features

• Nominal flow rate: 1728cc/min at 3.0 bar (43.5 psi), measured with E10 emissions certification fuel at 49 degrees C (120 degrees F)
• Maximum differential fuel pressure: 7.0 bar (101.5 psi)
• Compatible with methanol, ethanol, MTBE, nitromethane, and all known hydrocarbon fuels
• Corrosion resistant construction for long service life on alcohol fuels
• USCAR electrical connector

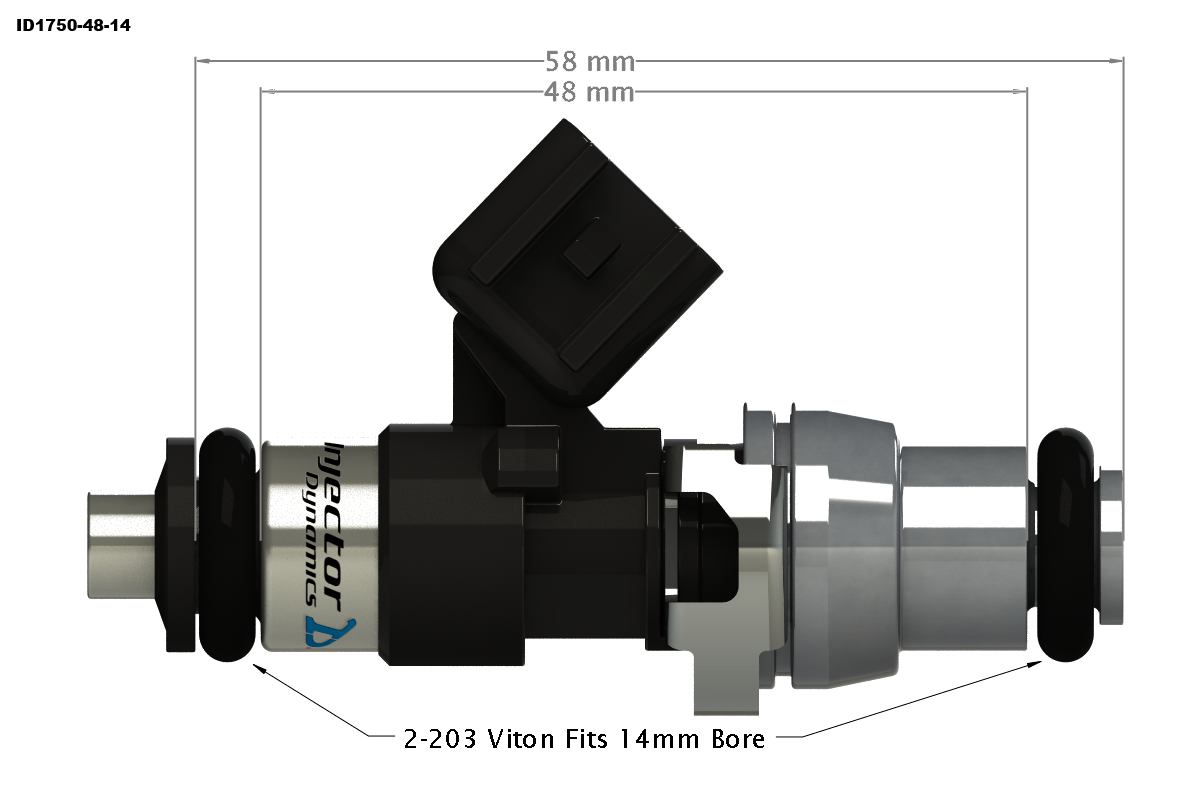

• Configuration: 48mm body, 14mm adapter top, 14mm lower o-ring
• Supplied as a flow-matched set with Dual Slope Matching for consistent delivery at low pulse widths

The Details

The ID1750-XDS is the successor to the ID1700x. It adds a higher dynamic flow rate with no increase in minimum fuel mass, better cylinder-to-cylinder balance at low pulse widths, and improved pressure sensitivity, while keeping the "compatible with everything but dirt" corrosion resistance the 1700 was known for. It sits between the 1300 and 2600 in the XDS lineup, sized for serious ethanol and methanol builds that have outgrown the 1300 class. Every set ships flow matched, and Injector Dynamics publishes full characterization data, including slope, offset (dead time) versus voltage and pressure, and short pulse width behavior, so your tuner can load real numbers instead of chasing fuel trims across the map. Accurate dead times are what make large injectors behave at idle and cruise, and they are the reason these tune quickly and stay tuned. This configuration uses machined top adapters (already fitted) to suit the rail height listed above. If your harness does not have USCAR plugs, the matching ID plug and play adapter is 91.1 (USCAR to EV1) or 91.3 (USCAR to Denso), available separately, no cutting or soldering required.

Fitment Notes

• BMW E46 M3 01-06: BMW E46 M3, 14mm (grey) adapter top.
• Infiniti G35: G35 / VQ35 applications. 14mm (grey) adapter top.
• Nissan 350Z: 350z / VQ35. 14mm (grey) adapter top.
• Nissan Patrol: Nissan Patrol. 14mm (grey) adapter top.
• Porsche 996/997.1 TT: 996/997.1 TT (Will not fit 997.2 TT). 14mm (grey) adapter top.

Kit Includes

• 1 Set of 6 - ID1750-XDS Fuel Injectors

Applications

• 2001-2006 BMW M3 - E46 M3 01-06
• 2003-2007 Infiniti G35 - G35
• 2003-2006 Nissan 350Z - 350Z
• Nissan Patrol
• 2001-2009 Porsche 911 - 996/997.1 TT
