HT-154006 - Elite PRO Plug-in ECU - Ford Falcon i6 "Barra"+ Onboard Wideband Sensor Kit
Elite PRO Plug-in ECU - Ford Falcon i6 Barra + Onboard Wideband Sensor Kit (HT-154006)
Elite PRO Plug-in ECU - Ford Falcon i6 Barra + Onboard Wideband Sensor Kit (HT-154006)
Elite PRO Plug-in ECU - Ford Falcon i6 Barra + Onboard Wideband Sensor Kit (HT-154006)
Elite PRO Plug-in ECU - Ford Falcon i6 Barra + Onboard Wideband Sensor Kit (HT-154006)
ECU
ECU

Engine management

Plug-In Fitment
Plug-In Fitment

No wiring needed
Save 10%

Vendor:Haltech

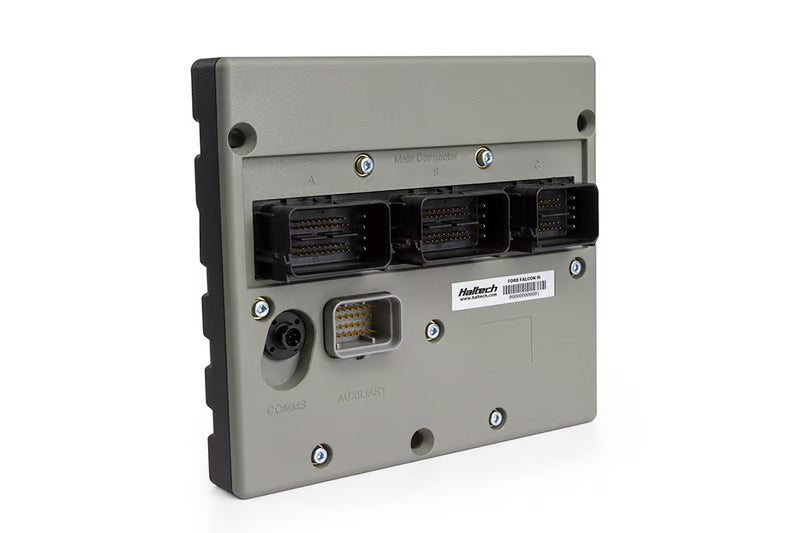

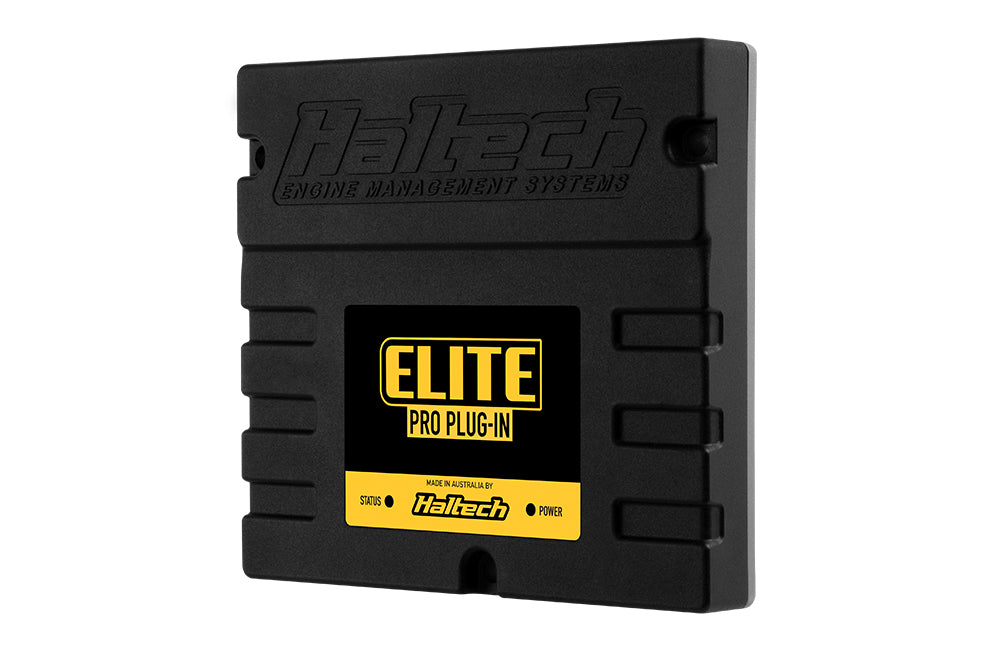

Elite PRO Plug-in ECU - Ford Falcon i6 "Barra" + Onboard Wideband Sensor Kit

SKU: HT-154006

Sale price$2,578.50Regular price $2,865.00
ECU
ECU

Engine management

Plug-In Fitment
Plug-In Fitment

No wiring needed
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Full standalone engine management with zero harness surgery: Elite PRO Plug-in ECU - Ford Falcon i6 "Barra" + Onboard Wideband Sensor Kit plugs directly into the factory ECU header and takes over from there. Ford Falcon BA (02-05), BF (05-08), FG (08-14) I6 4.0L DOHC VCT Barra engine with manual trans. Ford Falcon BF (05-08), FG (08-14) I6 4.0L DOHC VCT Barra engine with ZF 6HP26 6-speed auto. Naturally aspirated and turbo. The stock loom and sensors stay, the factory ceiling goes.

What You'll Feel

Day to day it comes down to this: factory drivability with a motorsport-grade ECU behind the stock connector: full programmability, knock control, and data logging on the factory loom. The Barra's factory bottom end takes serious boost, and proper standalone control of the single VCT cam and coil-on-plug ignition is what lets it do so reliably.

Features

  • Plugs into the factory header, retains factory wiring and sensors
  • Elite series processing, tuning tables, and learning
  • Knock control and data logging
  • CAN expansion for dashes and wideband

The Details

  • SKU: HT-154006
  • Harness length: 2.5m (8')

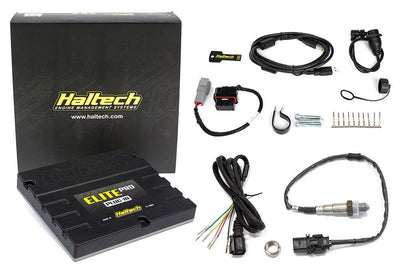

Kit Includes

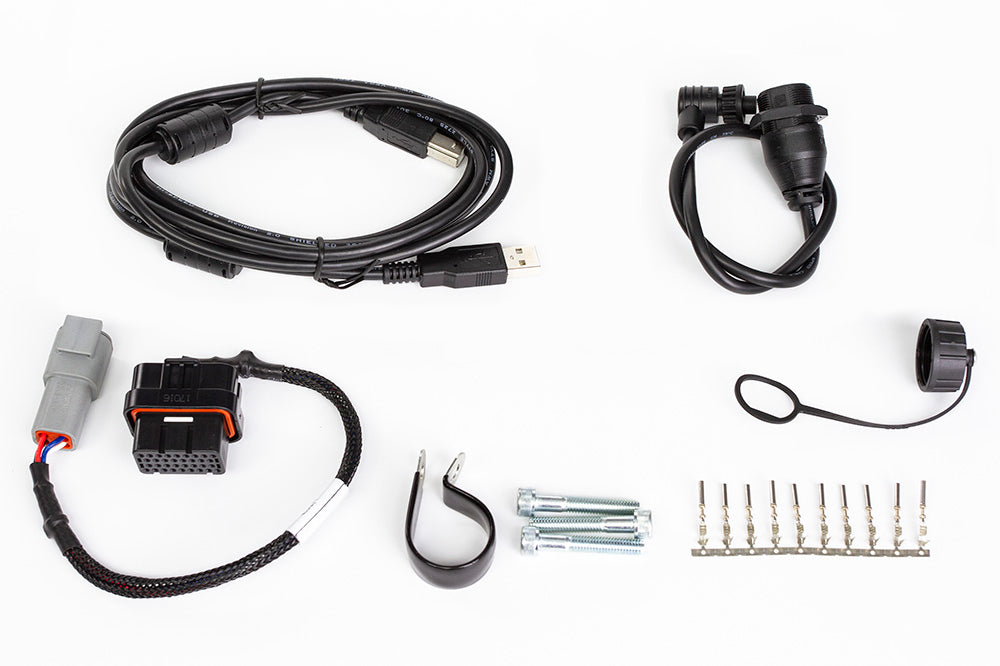

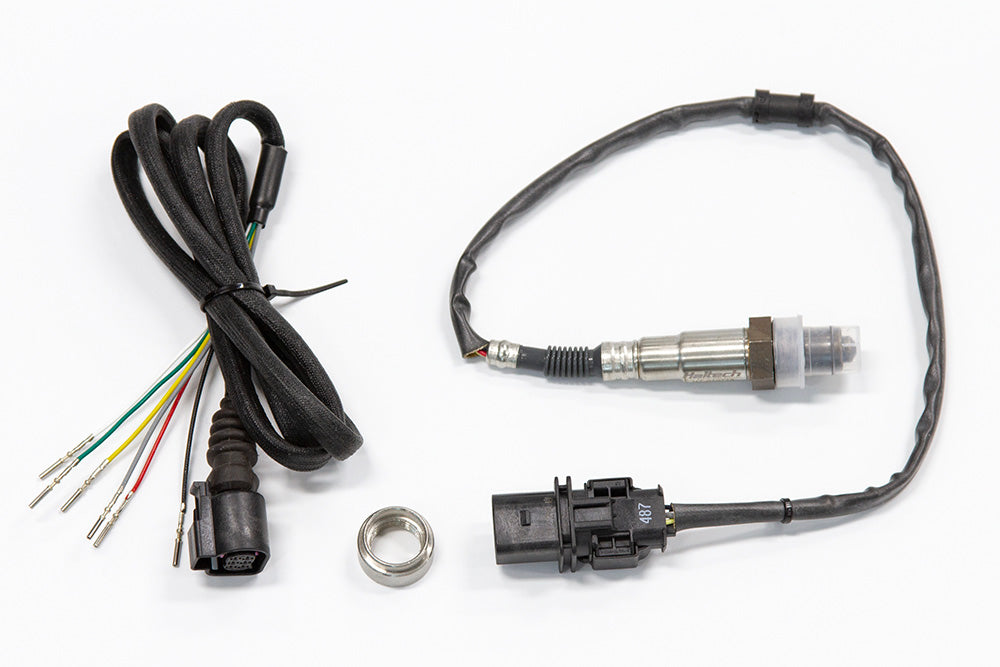

  • Elite PRO Plug-in ECU, Auxiliary I/O harness with AMP 34 Pin 4 row 4 keyway superseal connector, 300mm (12") Elite CAN DTM-4 female receptacle/socket, 30 waterproofing/blanking pins and 10 spare pins to populate auxiliary I/O positions. Wideband hardware pack with LSU 4.9 sensor, 1.2m (4') harness and weld-on sensor bung. 400mm (16") Waterproof (Type B) USB Connection Cable to Mini Circular (90°) with waterproof cap.

Applications

Ford Falcon BA (02-05), BF (05-08), FG (08-14) I6 4.0L DOHC VCT Barra engine with manual trans. Ford Falcon BF (05-08), FG (08-14) I6 4.0L DOHC VCT Barra engine with ZF 6HP26 6-speed auto. Naturally aspirated and turbo. Built for Ford Barra applications. Unsure about fitment for your build? Send us your engine and chassis details before ordering and we will confirm compatibility.

Tuned By Shawn is a Platinum Haltech Dealer. Remote tuning sessions over live Zoom are available, so once the hardware is installed we can calibrate it on your injectors, your fuel, and your combination without the car leaving your garage.
