Elite 2500 + Subaru WRX MY06-10 Plug 'n' Play Adaptor Harness Kit (HT-151321)

Everything an Australian-delivered MY06-10 WRX needs to run on a Haltech Elite 2500, in one box, with no factory wires cut.

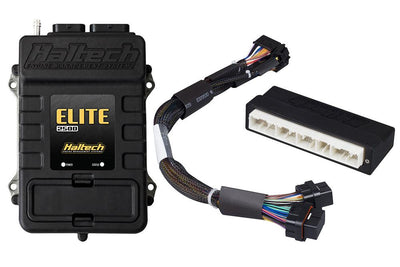

The Haltech Elite 2500 + Subaru WRX MY06-10 Plug 'n' Play Adaptor Harness Kit pairs the Elite 2500 ECU with the vehicle-specific plug 'n' play adaptor harness. One side of the adaptor carries the factory ECU connectors, the other plugs into the Elite, so the Elite 2500 drops in where the stock ECU sat and the factory loom is never touched. It suits the MY06-10 WRX in Australian domestic market form only, and the MY06-07 STI 2.5 litre, with the DENSO factory ECU. It is not compatible with the Hitachi ECU and is not suitable for USDM cars.

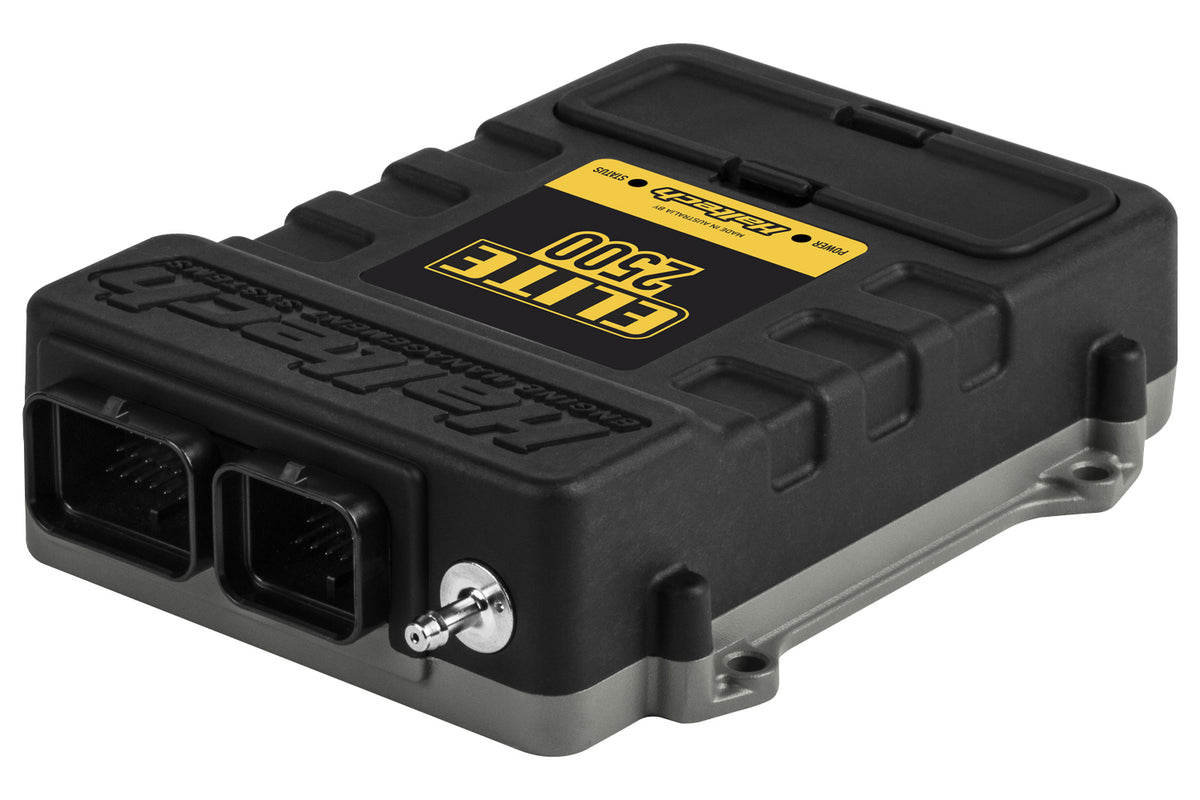

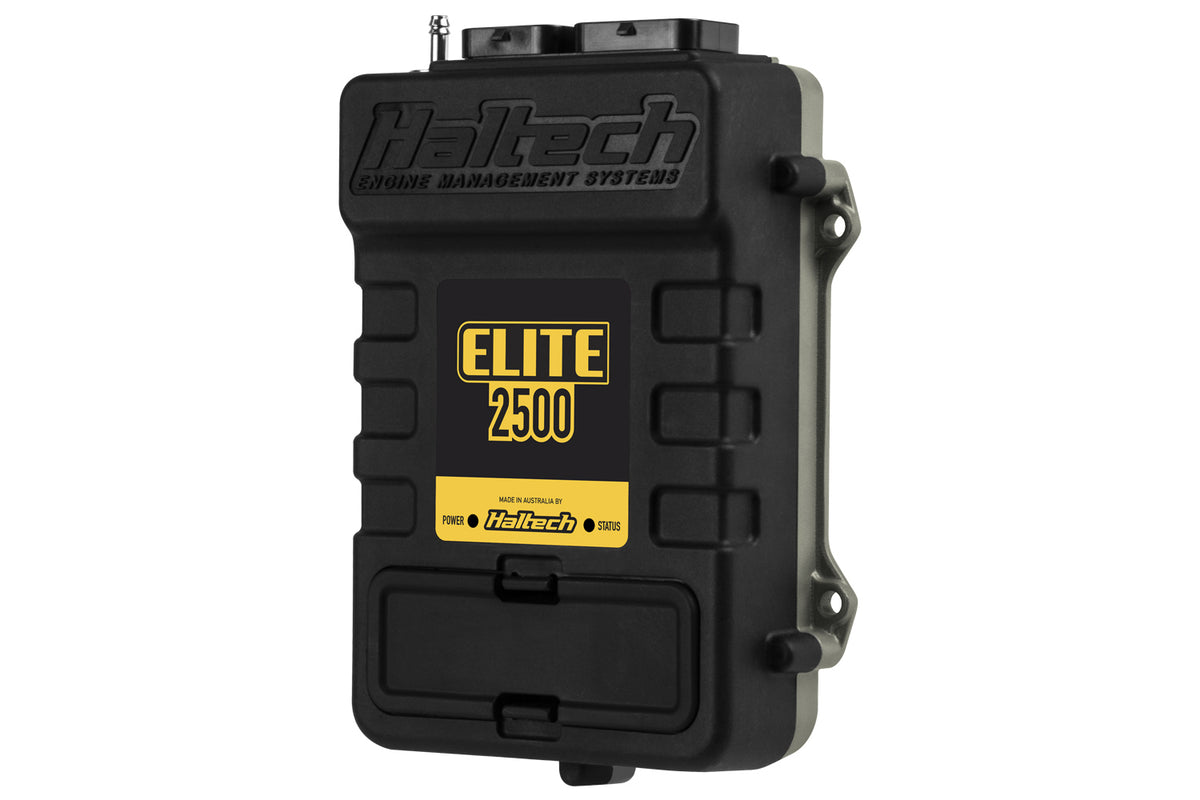

The Elite 2500 is Haltech's top-of-the-range Elite: eight injector and eight ignition outputs, drive-by-wire, control of up to four variable cams, dual-channel knock control and the full race function set. It is tuned in Haltech's NSP software, the same package used by the Nexus range.

Already own the ECU, or want a different Elite? The same application is also available as: adaptor harness only, Elite 2500 (HT-141321).

What You'll Feel

• Drive-by-wire throttle mapped to your combination rather than the factory torque model
• An EJ25 that takes a bigger turbo, injectors and E85 without the factory ECU fighting you
• Dual-channel knock control and 4D closed-loop boost, so you can lean on the tune without leaning on luck
• A stock harness you can return to at any time

Features

• Plug 'n' play adaptor with the Subaru WRX MY06-10 (ADM) factory ECU connector layout
• Elite 2500 ECU: 8 injector and 8 ignition outputs, suits 1 to 12 cylinder and 2 to 4 rotor engines
• No cutting or splicing of the factory harness, fully reversible
• Includes an M14 x 1.5 air temp sensor with plug and pins, so the ECU sees real intake temperature from day one
• Auxiliary I/O 16-pin Tyco plug and pins for extra sensors and outputs (wideband, fuel and oil pressure, flex fuel)
• Tuned with Haltech NSP software over USB, with on-board and laptop data logging
• Haltech quick start guide walks through the fit
• Backed by the Haltech limited warranty

Elite 2500 ECU Specifications

• Injector outputs: 8 (peak and hold)
• Ignition outputs: 8
• Analog voltage inputs: 10
• Synchronised pulsed inputs: 4
• Digital pulsed outputs: 5
• Half-bridge outputs: 4 Stepper / 2 DBW
• Knock sensor inputs: 2
• CAN bus networks: 2
• MAP sensor: Internal (4 BAR)
• Drive-by-wire throttle: Single
• Variable cam control: Up to 4
• Boost control: 4D Closed Loop
• Flex fuel: Yes
• Launch control: Yes
• Traction control: Yes
• Anti-lag / rotational idle: Yes
• Long-term learning: Up to 4D
• Tuning table resolution: 32x32x8 4D
• On-board storage: 8MB

The Details

Part number HT-151321. Plug 'n' Play replacement of the factory ECU for Subaru WRX MY06-10 (Australian Domestic Market only) STI MY06-07 2.5 Litre with DENSO ECU only. Unsure whether your car matches? Send us the VIN or a photo of the factory ECU plug before ordering and we will confirm.

• Not compatible with the Hitachi ECU. Not suitable for USDM models

Kit Includes

• 1x Elite 2500 ECU with DBW and Race Functions
• 1x Injection molded plastic plug 'n' play adaptor harness
• 1x M14 x 1.5 air temp sensor with matching plug and pins
• 1x Auxiliary I/O 16 Pin TYCO plug and pins
• 1x USB programming cable

Applications

• Subaru WRX MY06-10 (ADM), EJ25 2.5L
