Elite 1500 + Subaru WRX MY97-98 Plug 'n' Play Adaptor Harness Kit (HT-150944)

Everything a GC8 WRX (MY97-98) needs to run on a Haltech Elite 1500, in one box, with no factory wires cut.

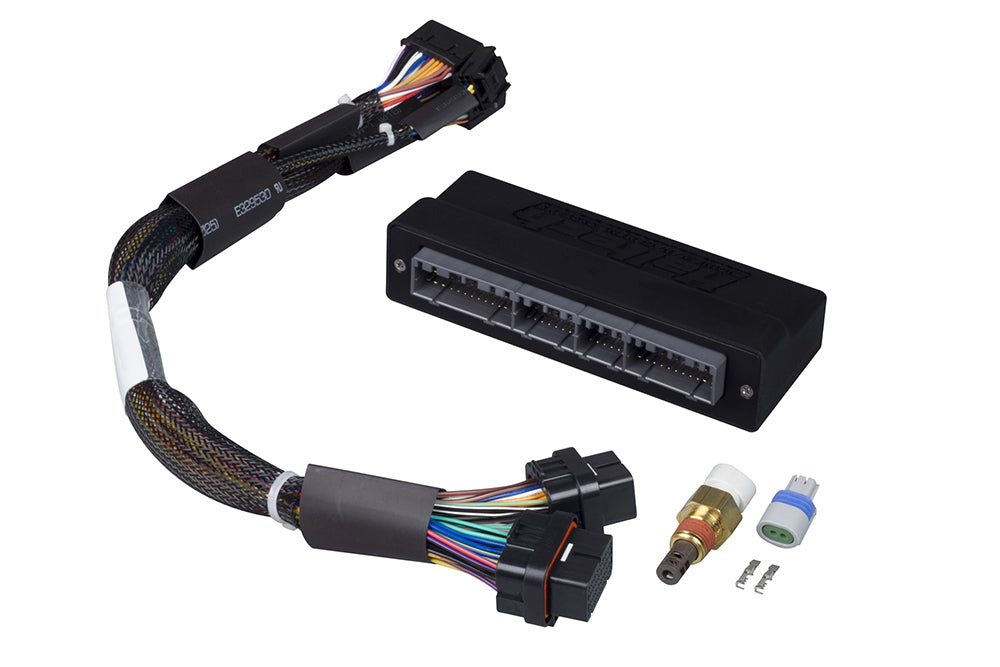

The Haltech Elite 1500 + Subaru WRX MY97-98 Plug 'n' Play Adaptor Harness Kit pairs the Elite 1500 ECU with the vehicle-specific plug 'n' play adaptor harness. One side of the adaptor carries the factory ECU connectors, the other plugs into the Elite, so the Elite 1500 drops in where the stock ECU sat and the factory loom is never touched. It suits the MY97-98 WRX (Australian-delivered and JDM) with a manual transmission.

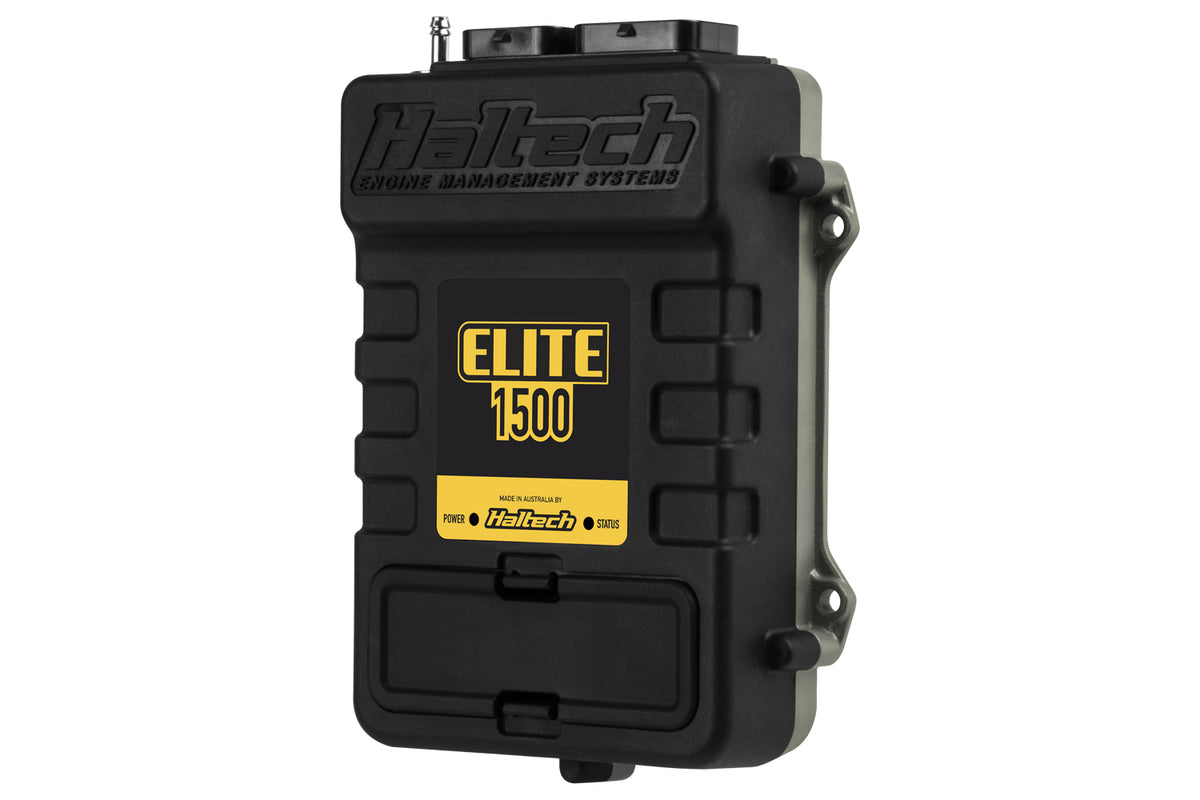

The Elite 1500 is a two-connector standalone with drive-by-wire, control of up to four variable cams, knock control, long-term learning and the full Elite race function set, sized for four-cylinder and two-rotor engines. It is tuned in Haltech's NSP software, the same package used by the Nexus range.

Already own the ECU, or want a different Elite? The same application is also available as: adaptor harness only, Elite 1000/1500 (HT-140821).

What You'll Feel

• An EJ20 that takes a bigger turbo and injectors without the factory ECU fighting you
• Knock control watching a platform that is famous for needing it
• Knock control and long-term fuel learning working in the background, so the engine is protected while the map keeps getting better
• A stock harness you can return to at any time

Features

• Plug 'n' play adaptor with the Subaru WRX MY97-98 factory ECU connector layout
• Elite 1500 ECU: 4 injector and 4 ignition outputs, suits 1 to 12 cylinder and 2 rotor engines (sequential on 4 cylinder and 2 rotor)
• No cutting or splicing of the factory harness, fully reversible
• Includes an M14 x 1.5 air temp sensor with plug and pins, so the ECU sees real intake temperature from day one
• Auxiliary I/O 16-pin Tyco plug and pins for extra sensors and outputs (wideband, fuel and oil pressure, flex fuel)
• Tuned with Haltech NSP software over USB, with on-board and laptop data logging
• Haltech quick start guide walks through the fit
• Backed by the Haltech limited warranty

Elite 1500 ECU Specifications

• Injector outputs: 4 (peak and hold)
• Ignition outputs: 4
• Analog voltage inputs: 10
• Synchronised pulsed inputs: 4
• Digital pulsed outputs: 5
• Half-bridge outputs: 4 Stepper / 2 DBW
• Knock sensor inputs: 1
• CAN bus networks: 2
• MAP sensor: Internal (4 BAR)
• Drive-by-wire throttle: Single
• Variable cam control: Up to 4
• Boost control: 4D Closed Loop
• Flex fuel: Yes
• Launch control: Yes
• Traction control: Yes
• Anti-lag / rotational idle: Yes
• Long-term learning: Up to 4D
• Tuning table resolution: 32x32x8 4D
• On-board storage: 8MB

The Details

Part number HT-150944. Plug 'n' Play replacement of the factory ECU for Subaru WRX MY97-98 (Australian Delivered and JDM) Manual transmission only. Unsure whether your car matches? Send us the VIN or a photo of the factory ECU plug before ordering and we will confirm.

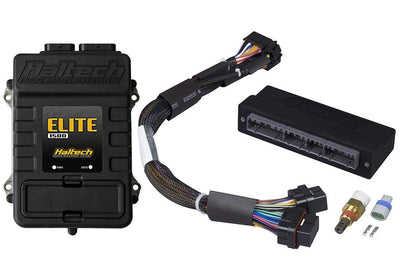

Kit Includes

• 1x Elite 1500 ECU with DBW and Race Functions
• 1x Injection molded plastic plug 'n' play adaptor harness
• 1x M14 x 1.5 air temp sensor with matching plug and pins
• 1x Auxiliary I/O 16 Pin TYCO plug and pins
• 1x USB programming cable

Applications

• Subaru WRX MY97-98, EJ20 turbo
• 1997-1998 Subaru WRX

Tuned By Shawn is a Platinum Haltech Dealer with in-house wiring and remote tuning. Add a remote tune and we will have the base map configured for your combination before the ECU ships.
