Elite 750 + Premium Universal Wire-in Harness Kit (HT-150604)

Six cylinders or three rotors of sequential control in a sealed, single-connector ECU.

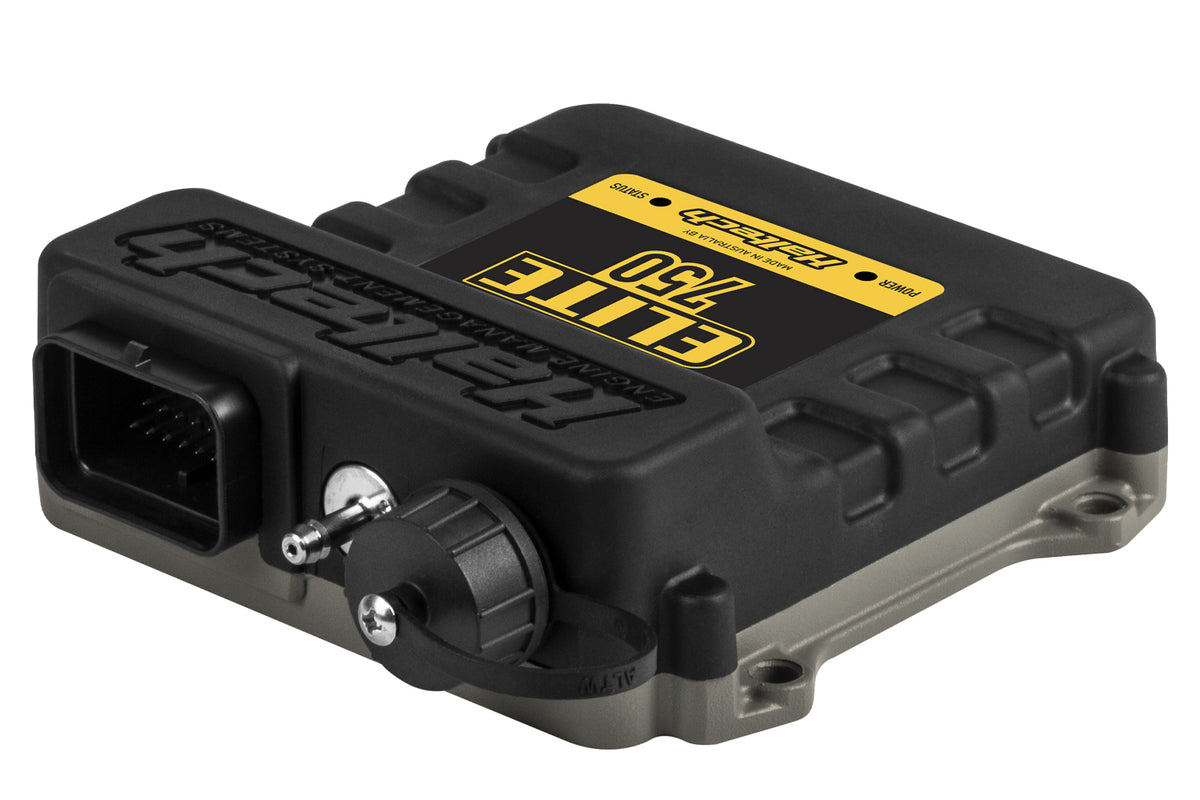

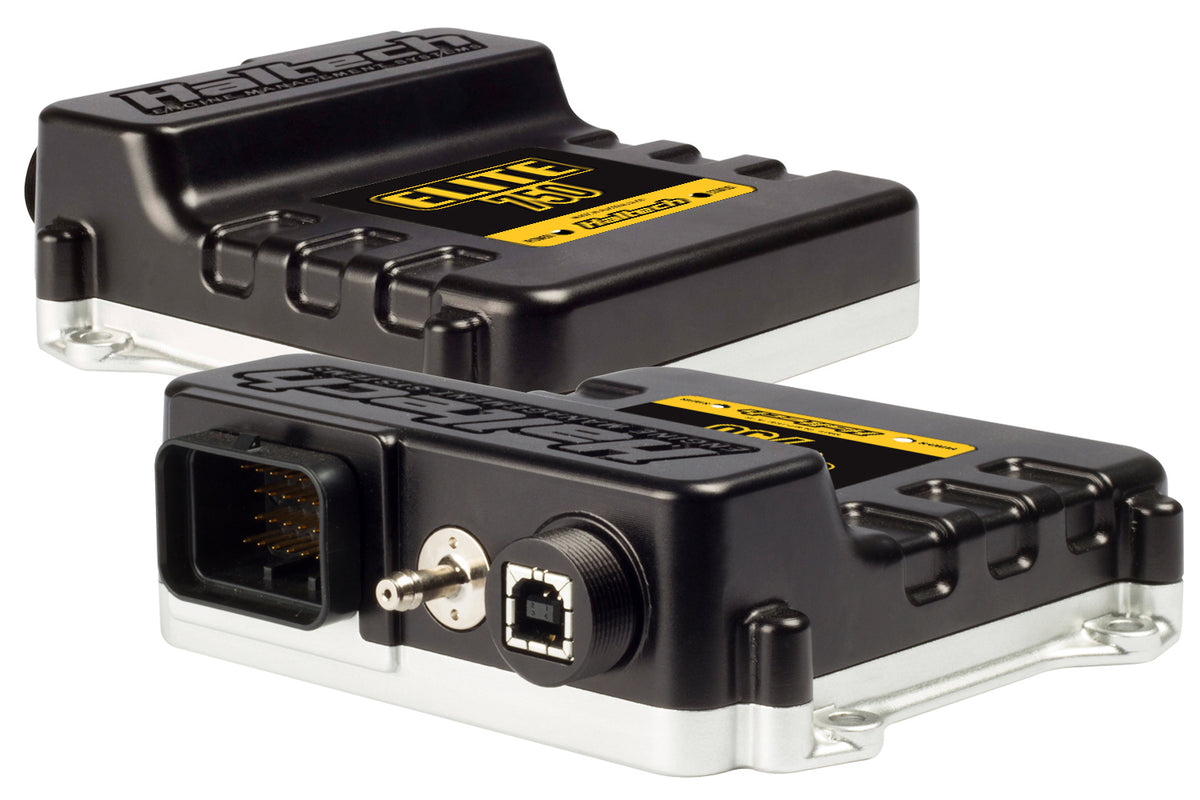

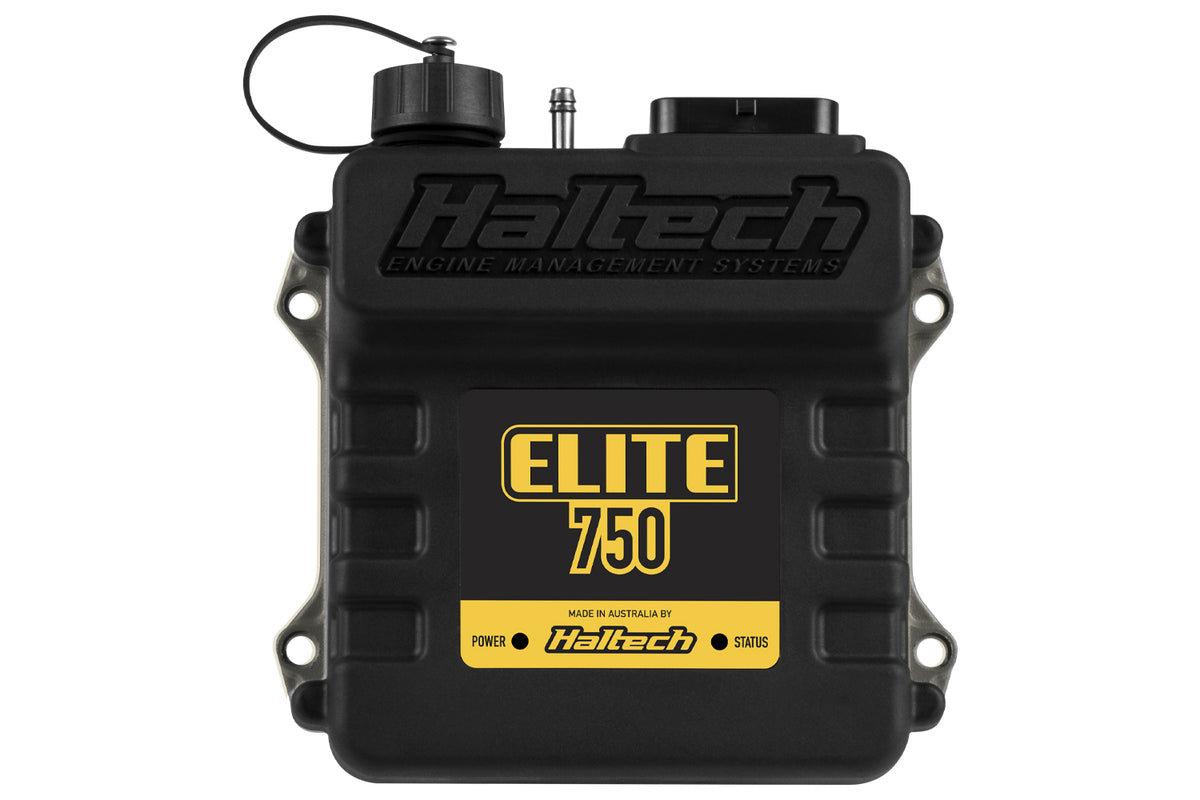

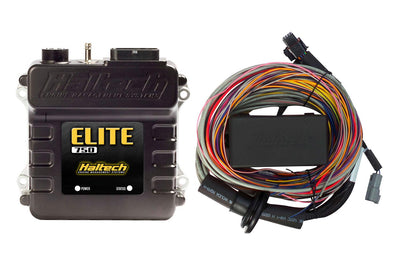

The Haltech Elite 750 + Premium Universal Wire-in Harness Kit is the Elite 750 ECU with the Premium universal wire-in harness. The Elite 750 is a compact, IP67-sealed single-connector ECU that brings much of the Elite 1500/2500 feature set, six fuel and six ignition channels, flex fuel and on-board logging, to a lower price.

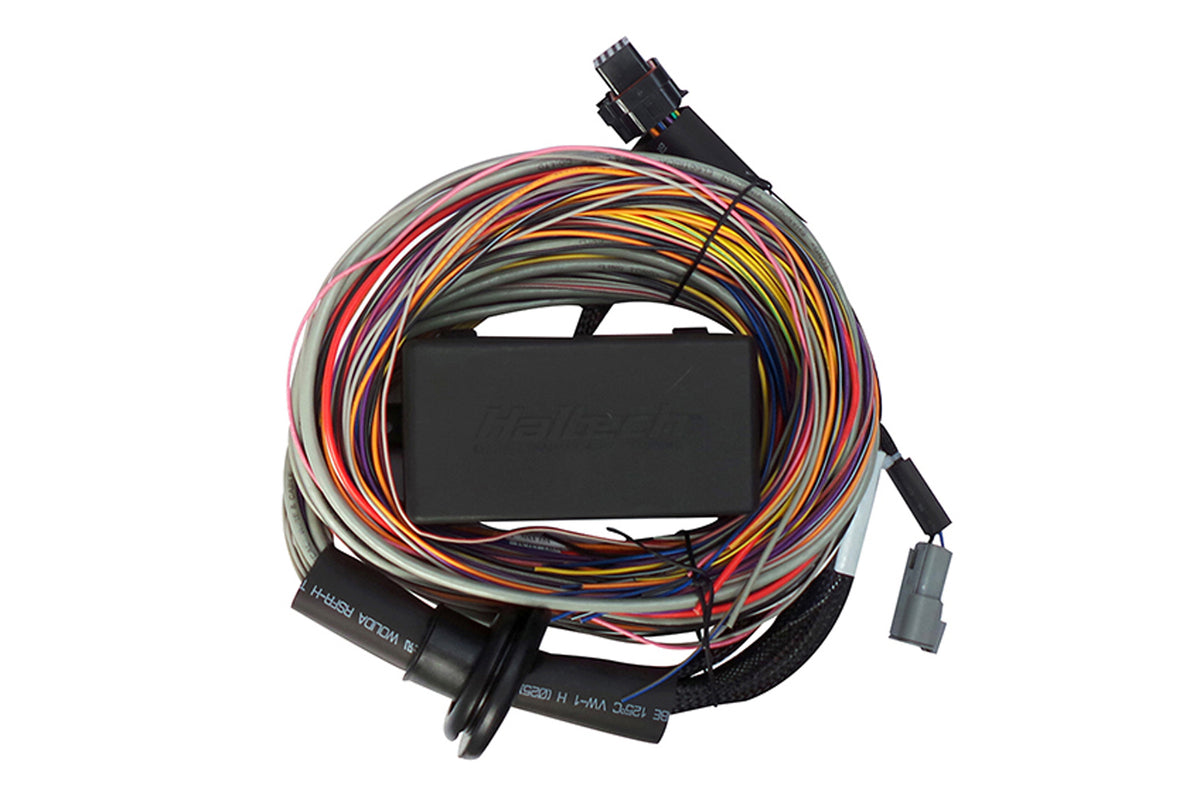

The universal wire-in harness has the ECU connectors fitted at one end and colour-coded, labelled flying leads at the other, matched to the Haltech wiring diagram, so a from-scratch install is a matter of cutting to length and terminating. The Premium harness adds a firewall grommet and a moulded Haltech fuse and relay box, so power distribution is handled in the kit.

What You'll Feel

• Six sequential injector and ignition channels, enough for a straight six or a three rotor without doubling up outputs
• Clean cold starts, a stable idle through hot restarts, and crisp throttle response
• Flex fuel blending that keeps the car driving right on any ethanol mix
• Launch control and on-board logging, so you can see what the engine did instead of guessing

Features

• Supports 1 to 12 Cylinder engines
• 1 to 3 Rotor engines
• Normally aspirated or forced induction
• Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
• Staged, Sequential, semi sequential, batch or multipoint injection patterns
• Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
• Connect to a wide range of display dashes and expansion devices via CAN
• Waterproof case (IP67) (with USB cover fitted)
• 34 position AMP connector
• 6 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
• 6 x Ignition Outputs
• 2 x Dedicated Engine Position inputs with extensive trigger type support
• 2 x Digital Pulsed Inputs
• 5 x Digital Pulsed Outputs
• 2 x Analogue Voltage Inputs
• 3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)

Elite 750 ECU Specifications

• Injector outputs: 6 (peak and hold)
• Ignition outputs: 6
• Analog voltage inputs: 2
• Digital pulsed inputs: 2
• Digital pulsed outputs: 5
• CAN bus networks: 1
• MAP sensor: Internal (4 BAR)
• Variable cam control: Single
• Boost control: 3D Closed Loop
• Flex fuel: Yes
• Launch control: Yes
• Long-term learning: Up to 3D
• Tuning table resolution: 32x32 3D
• On-board storage: 2MB

The Details

Part number HT-150604. Universal 1-12 cylinder or 2-3 rotor applications. Outputs: Up to 6 injector and 6 ignition. Haltech sells these products for off-road and competition use.

• Single connector ECU kit ideal for basic 6 cylinder or 2 rotor engines, basic EFI conversions, single VVTi engines

Kit Includes

• 1x Elite 750 ECU
• 1x Premium Universal Wire-In Harness
• 1x Firewall grommet
• 1x Moulded 6 power circuit Haltech fuse box and lid
• 2 relays
• 6 fuses and pins for the 6 spare power circuits
• 1x Waterproof USB cap
• 1x USB programming cable

Applications

• Universal: 1 to 12 cylinder and 1 to 3 rotor engines
• Naturally aspirated or forced induction, with TPS, MAP or MAF load sensing

Tuned By Shawn is a Platinum Haltech Dealer with in-house wiring and remote tuning. Add a remote tune and we will have the base map configured for your combination before the ECU ships.
