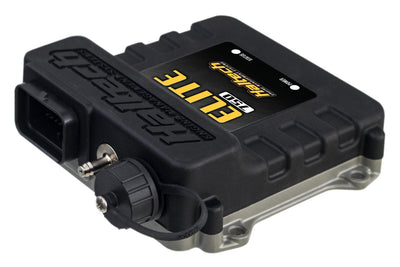

Haltech Elite 750 ECU (HT-150600), from Tuned By Shawn

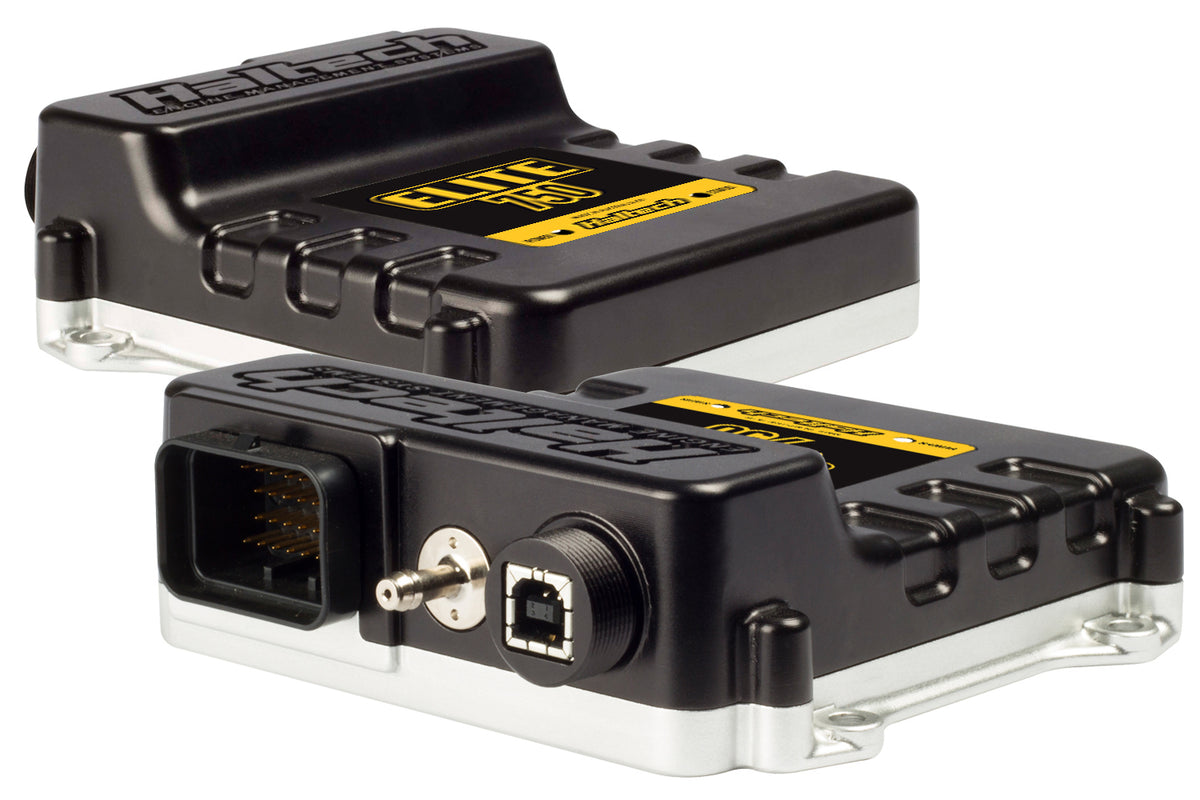

Haltech Elite 750 ECU (HT-150600), view 2, Tuned By Shawn

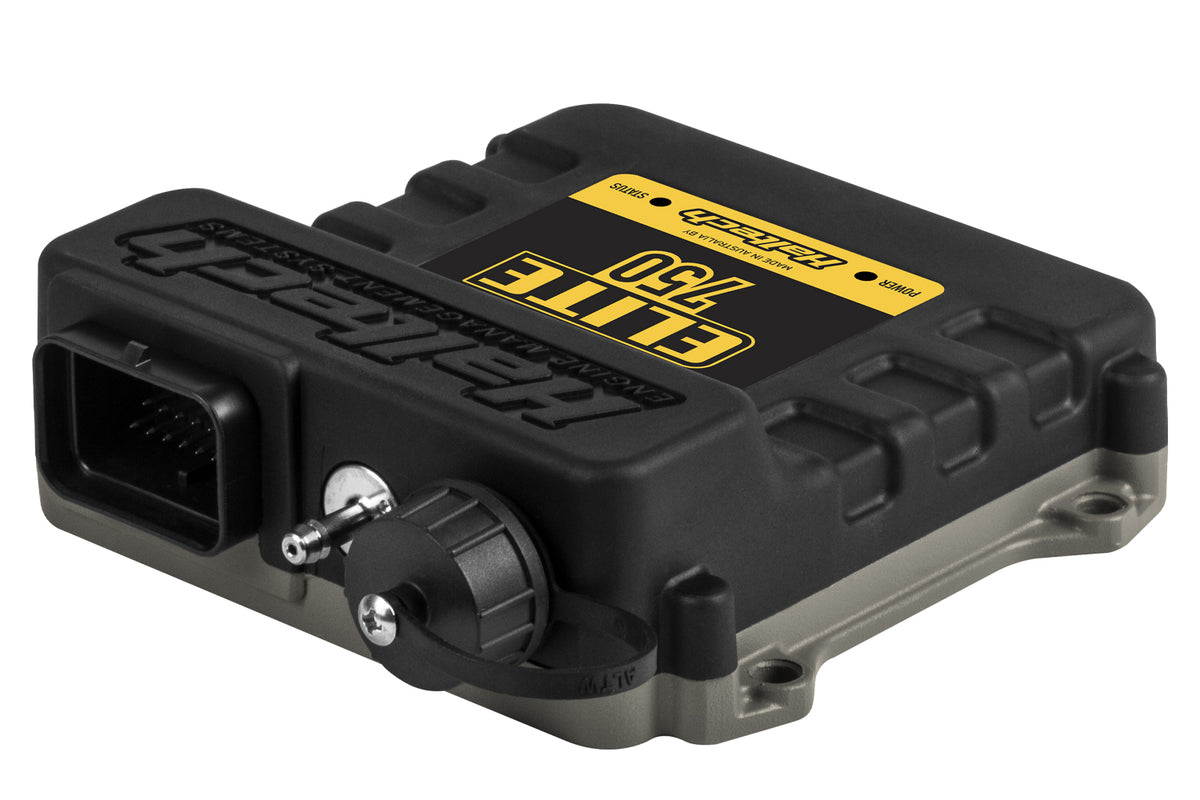

Haltech Elite 750 ECU (HT-150600), view 3, Tuned By Shawn

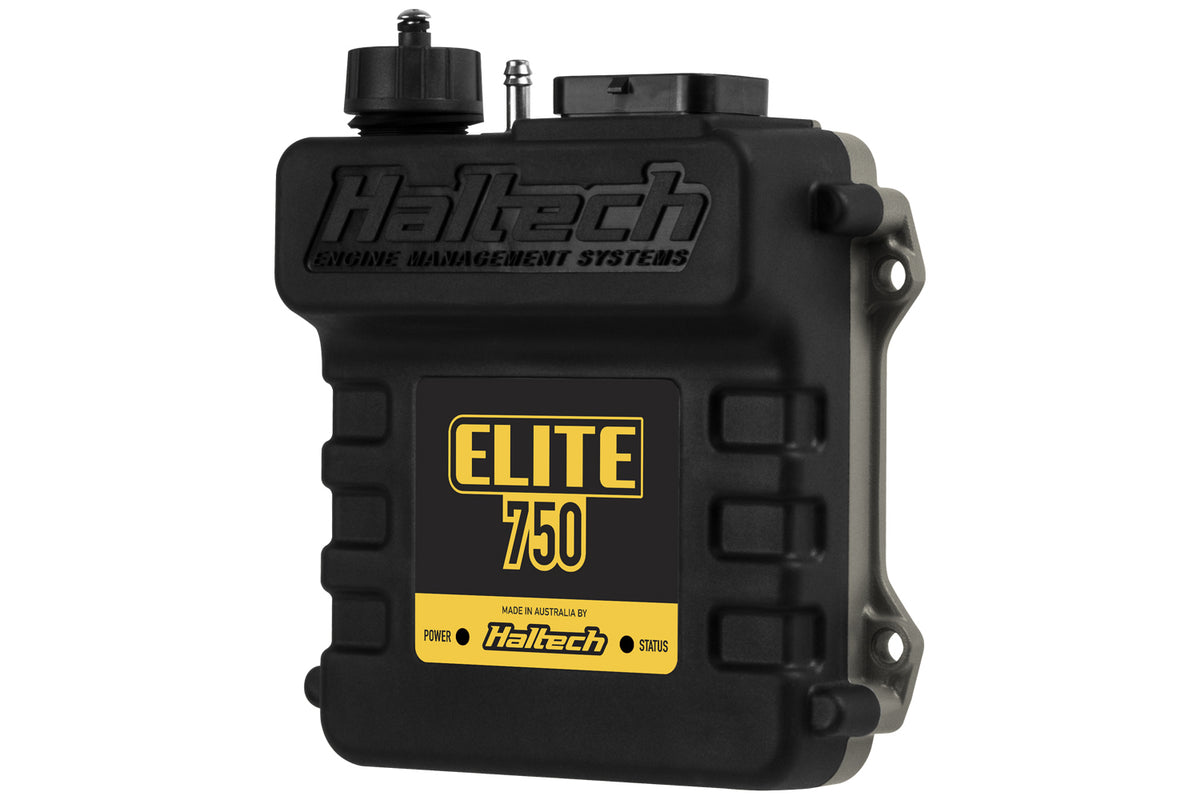

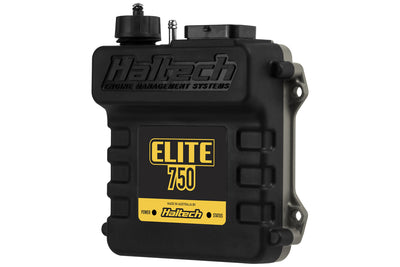

Haltech Elite 750 ECU (HT-150600), view 4, Tuned By Shawn
ECU
ECU

Engine management

Component Only
Component Only

No ECU included

Vendor:Haltech

Haltech Elite 750 ECU (HT-150600)

SKU: HT-150600

Nexus Must-Haves
$1,215.00
ECU
ECU

Engine management

Component Only
Component Only

No ECU included
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Six cylinders or three rotors of sequential control in a sealed, single-connector ECU.

The Haltech Elite 750 ECU is the Elite 750 ECU on its own. The Elite 750 is a compact, IP67-sealed single-connector ECU that brings much of the Elite 1500/2500 feature set, six fuel and six ignition channels, flex fuel and on-board logging, to a lower price.

This is the bare ECU for a custom-built loom or for pairing with a Haltech terminated or plug 'n' play harness. It is tuned in Haltech's NSP software, the same package used by the Nexus range.

What You'll Feel

  • Six sequential injector and ignition channels, enough for a straight six or a three rotor without doubling up outputs
  • Clean cold starts, a stable idle through hot restarts, and crisp throttle response
  • Flex fuel blending that keeps the car driving right on any ethanol mix
  • Launch control and on-board logging, so you can see what the engine did instead of guessing

Features

  • Supports 1 to 12 Cylinder engines
  • 1 to 3 Rotor engines
  • Normally aspirated or forced induction
  • Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
  • Staged, Sequential, semi sequential, batch or multipoint injection patterns
  • Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
  • Connect to a wide range of display dashes and expansion devices via CAN
  • Waterproof case (IP67) (with USB cover fitted)
  • 34 position AMP connector
  • 6 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
  • 6 x Ignition Outputs
  • 2 x Dedicated Engine Position inputs with extensive trigger type support
  • 2 x Digital Pulsed Inputs
  • 5 x Digital Pulsed Outputs
  • 2 x Analogue Voltage Inputs
  • 3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)

Elite 750 ECU Specifications

  • Injector outputs: 6 (peak and hold)
  • Ignition outputs: 6
  • Analog voltage inputs: 2
  • Digital pulsed inputs: 2
  • Digital pulsed outputs: 5
  • CAN bus networks: 1
  • MAP sensor: Internal (4 BAR)
  • Variable cam control: Single
  • Boost control: 3D Closed Loop
  • Flex fuel: Yes
  • Launch control: Yes
  • Long-term learning: Up to 3D
  • Tuning table resolution: 32x32 3D
  • On-board storage: 2MB

The Details

Part number HT-150600. Universal 1-12 cylinder or 2-3 rotor applications. Outputs: Up to 6 injector and 6 ignition. Haltech sells these products for off-road and competition use.

  • Single connector ECU ideal for basic 6 cylinder or 3 rotor engine, basic EFI conversions, single VVTi engines

Kit Includes

  • 1x Elite 750 ECU
  • 1x Waterproof USB cap
  • 1x USB programming cable

Applications

  • Universal: 1 to 12 cylinder and 1 to 3 rotor engines
  • Naturally aspirated or forced induction, with TPS, MAP or MAF load sensing

Tuned By Shawn is a Platinum Haltech Dealer with in-house wiring and remote tuning. Add a remote tune and we will have the base map configured for your combination before the ECU ships.
