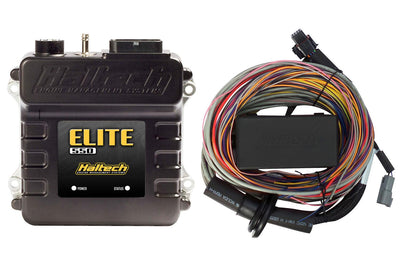

Elite 550 + Premium Universal Wire-in Harness Kit (HT-150404)

Full standalone control of fuel, ignition and boost, at the entry price.

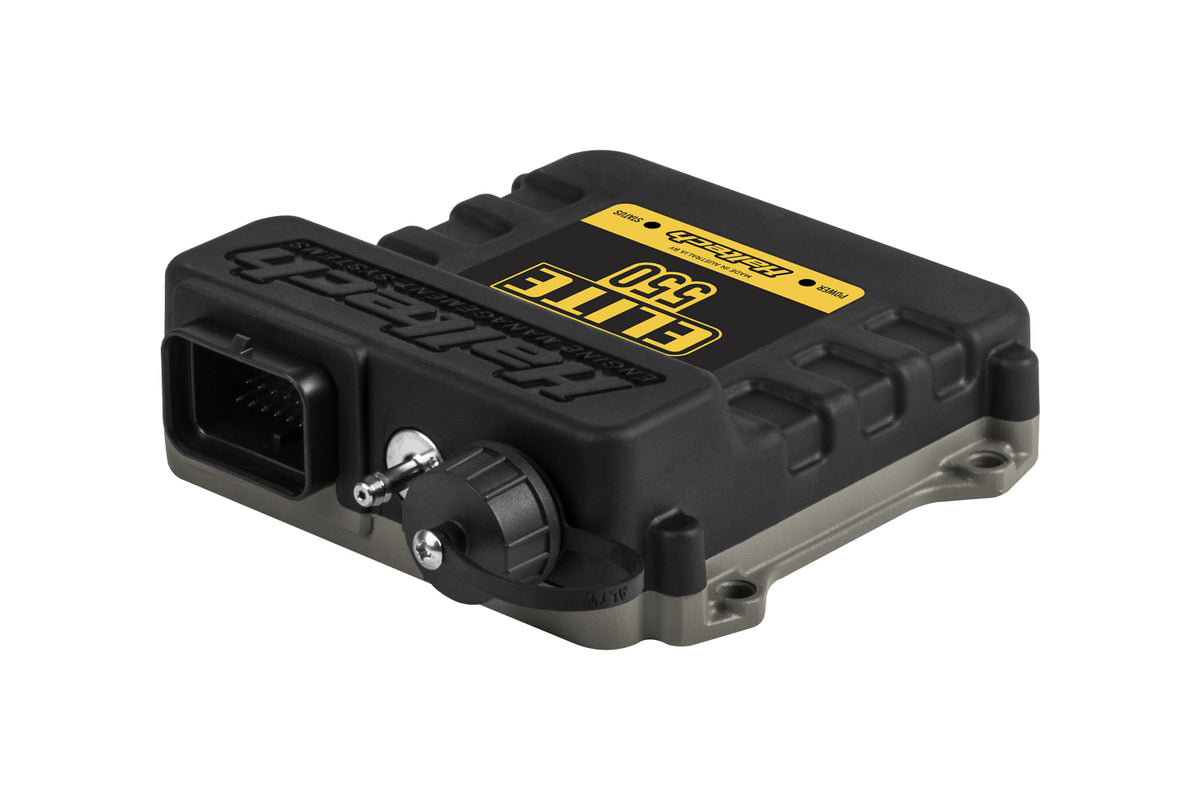

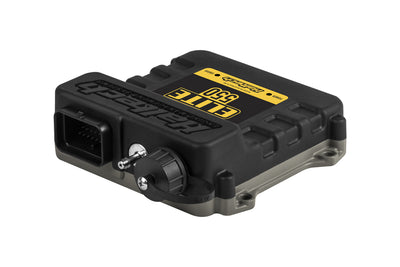

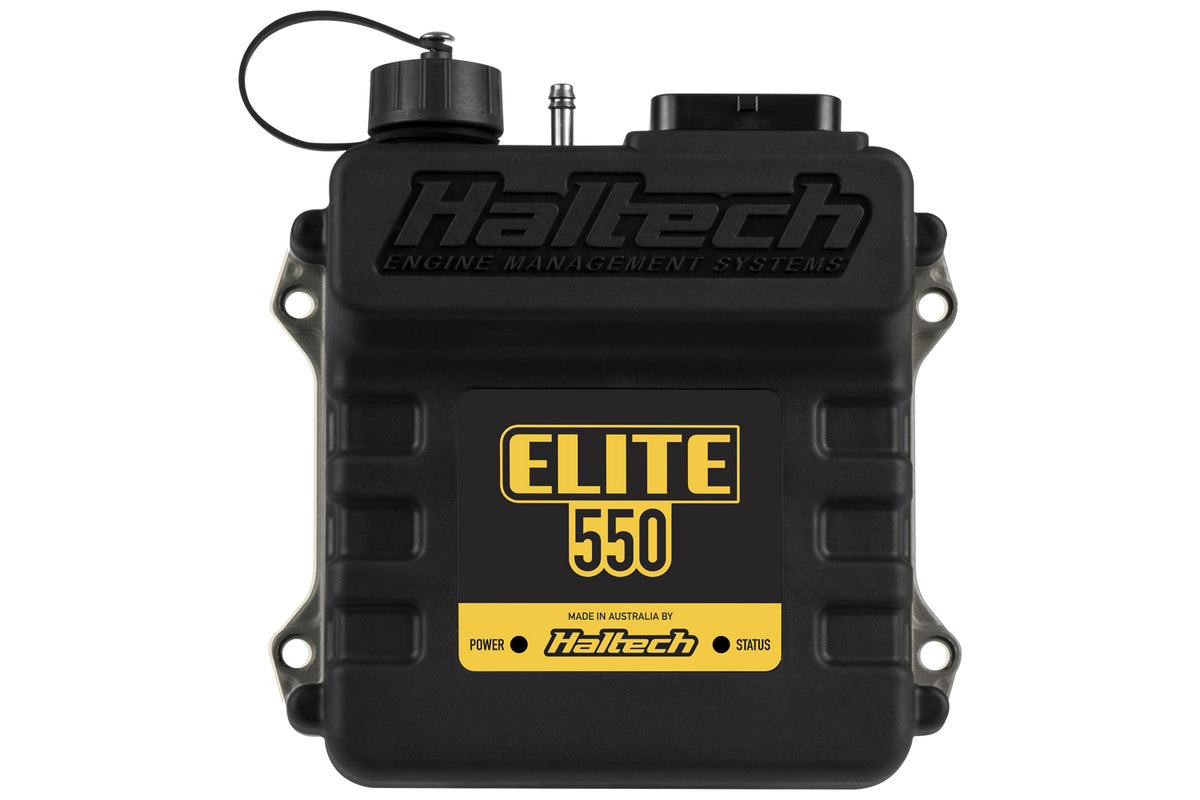

The Haltech Elite 550 + Premium Universal Wire-in Harness Kit is the Elite 550 ECU with the Premium universal wire-in harness. The Elite 550 is Haltech's entry-level single-connector Elite: full control of fuel, ignition and boost for a basic four-cylinder, V8 or two-rotor build, with flex fuel and on-board logging included.

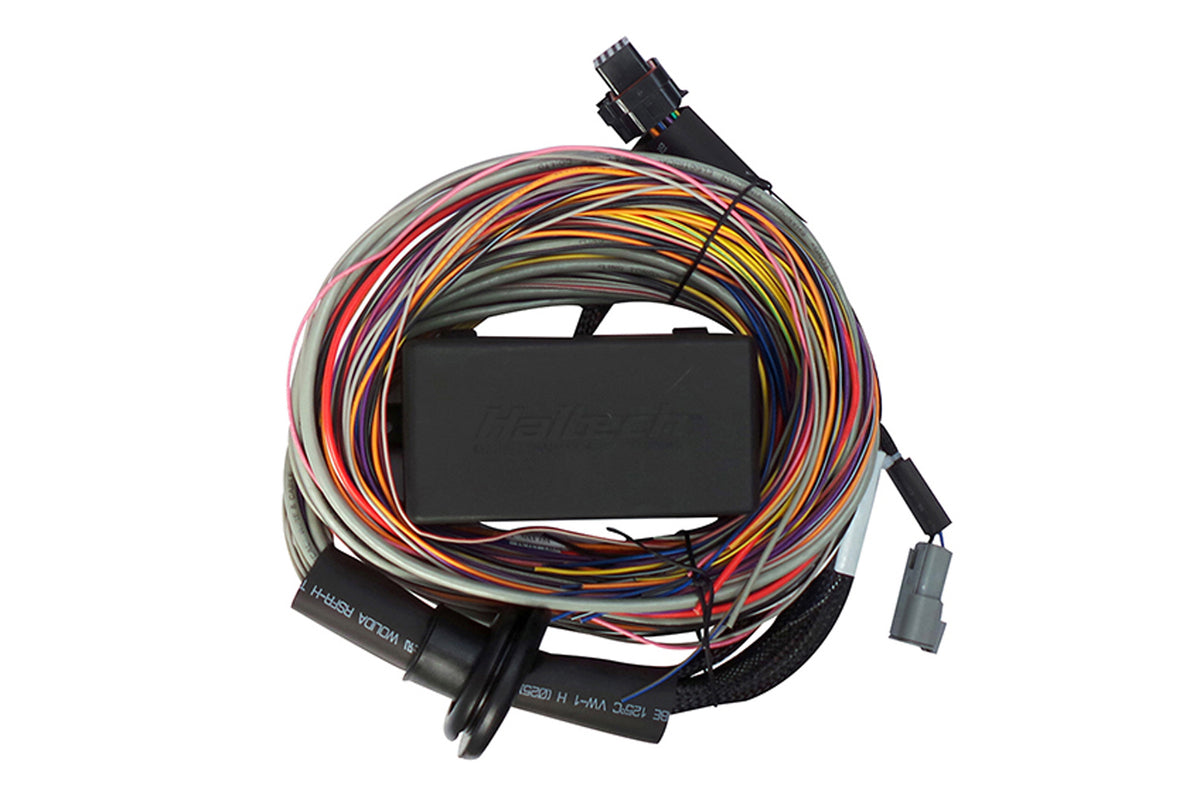

The universal wire-in harness has the ECU connectors fitted at one end and colour-coded, labelled flying leads at the other, matched to the Haltech wiring diagram, so a from-scratch install is a matter of cutting to length and terminating. The Premium harness adds a firewall grommet and a moulded Haltech fuse and relay box, so power distribution is handled in the kit.

What You'll Feel

• Closed-loop boost and O2 control with long-term learning, so the tune keeps itself tidy between sessions
• Clean cold starts, a stable idle through hot restarts, and crisp throttle response
• Flex fuel blending that keeps the car driving right on any ethanol mix
• Launch control and on-board logging, so you can see what the engine did instead of guessing

Features

• Supports 1 to 8 Cylinder engines
• 1 to 2 Rotor engines
• Normally aspirated or forced induction
• Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
• Sequential, semi-sequential, batch or multipoint injection patterns
• Ignition modes include Direct fire multi-coil, Distributor ignition, or Haltech CDI systems
• Connect to a wide range of Dashes, displays and expansion devices via CAN
• Waterproof case (IP67) (with USB cover fitted)
• 34 position AMP connector
• 4 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
• 4 x Ignition Outputs
• 2 x Dedicated Engine Position inputs with extensive trigger type support
• 1 x Digital Pulsed Input
• 5 x Digital Pulsed Outputs
• 1 x Analogue Voltage Input
• 3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)

Elite 550 ECU Specifications

• Injector outputs: 4 (peak and hold)
• Ignition outputs: 4
• Analog voltage inputs: 1
• Digital pulsed inputs: 1
• Digital pulsed outputs: 5
• CAN bus networks: 1
• MAP sensor: Internal (4 BAR)
• Variable cam control: Single
• Boost control: 3D Closed Loop
• Flex fuel: Yes
• Launch control: Yes
• Long-term learning: Up to 3D
• Tuning table resolution: 32x16 3D
• On-board storage: 2MB

The Details

Part number HT-150404. Universal 1-8 cylinder or 2 rotor applications. Outputs: Up to 4 injector and 4 ignition. Haltech sells these products for off-road and competition use.

• Haltech's entry level, single connector ECU Kit
• Ideal for basic 4 cylinder or 2 rotor engine applications and basic EFI conversions

Kit Includes

• 1x Elite 550 ECU
• 1x Premium universal wire-in harness. firewall grommet
• 1x Moulded 6 power circuit Haltech fuse box and lid
• 2 relays
• 4 fuses and pins for the 4 spare power circuits
• 1x Waterproof USB cap
• 1x USB programming cable

Applications

• Universal: 1 to 8 cylinder and 1 to 2 rotor engines
• Naturally aspirated or forced induction, with TPS, MAP or MAF load sensing

Tuned By Shawn is a Platinum Haltech Dealer with in-house wiring and remote tuning. Add a remote tune and we will have the base map configured for your combination before the ECU ships.
