Elite 550 ECU + Plug and Pin Set (HT-150401)

Full standalone control of fuel, ignition and boost, at the entry price.

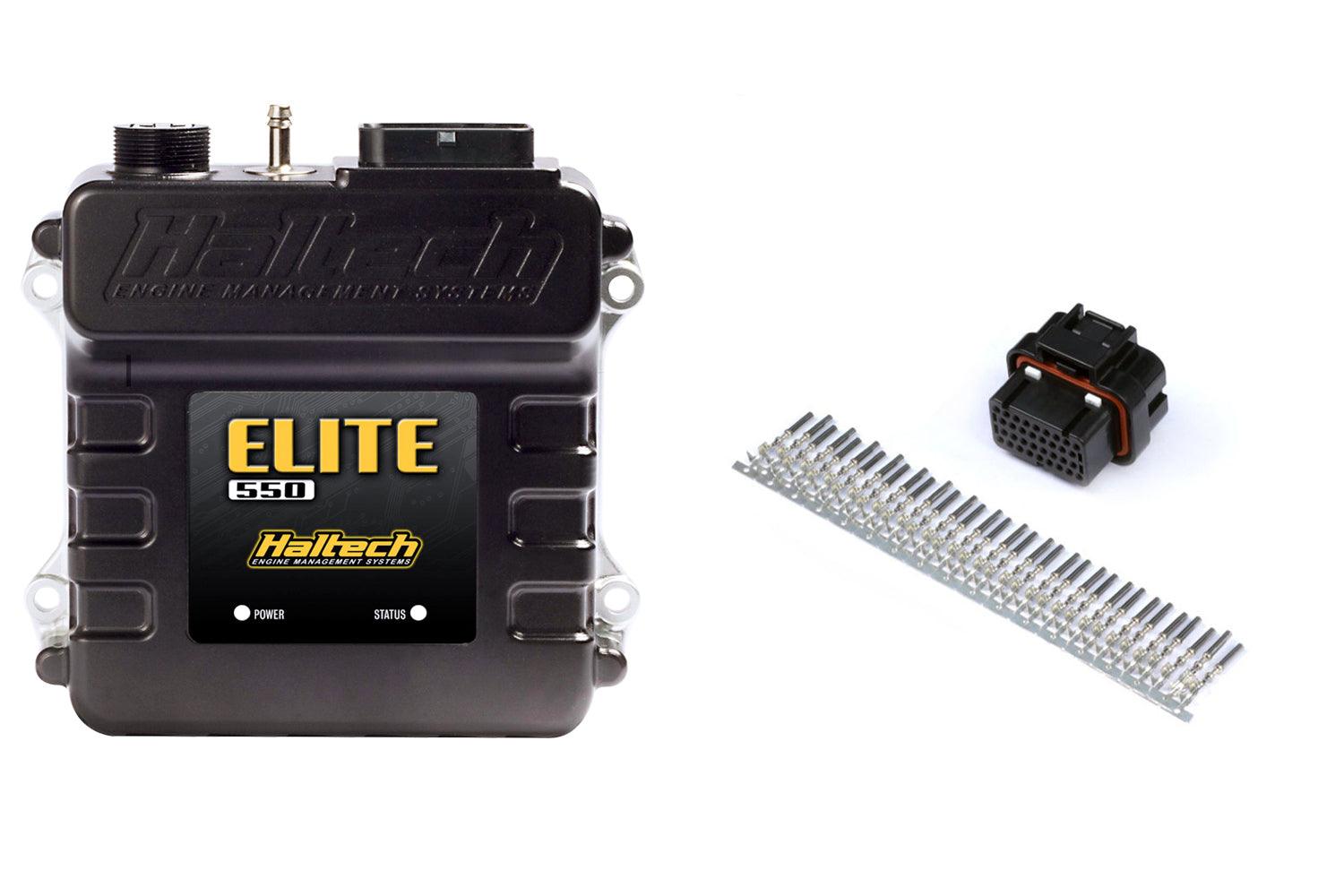

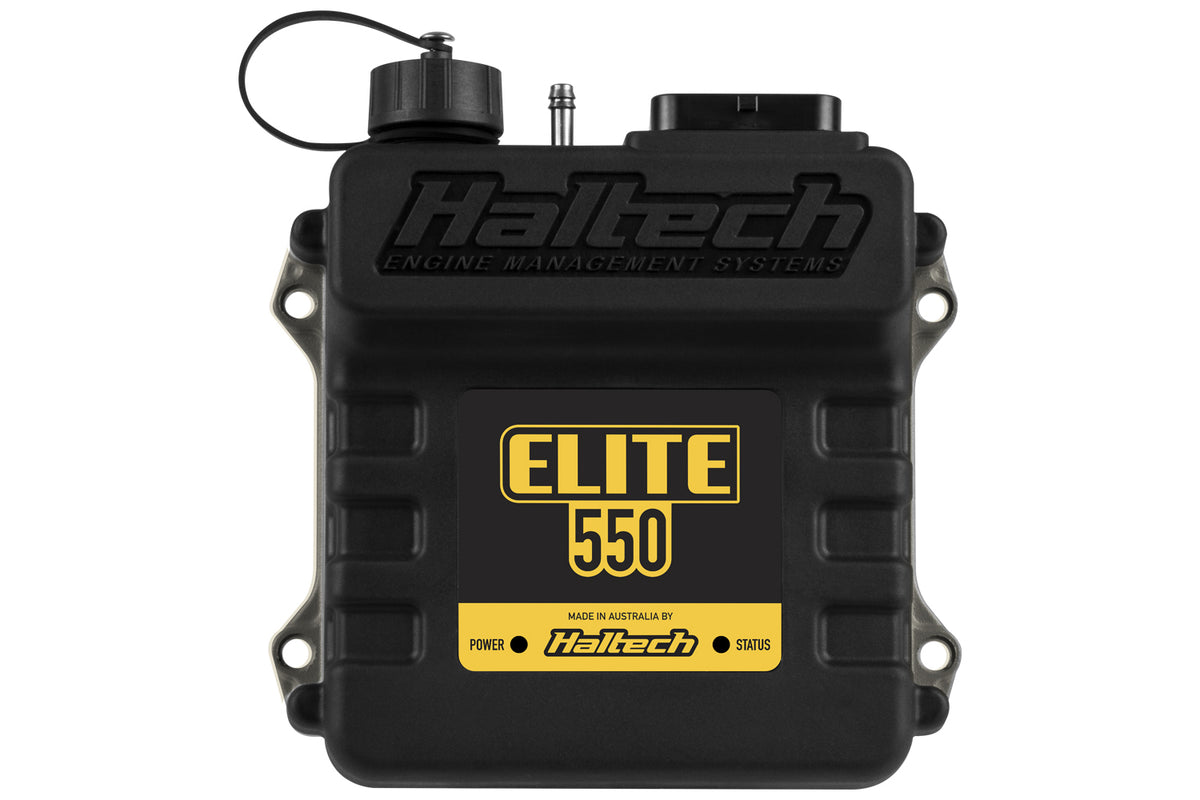

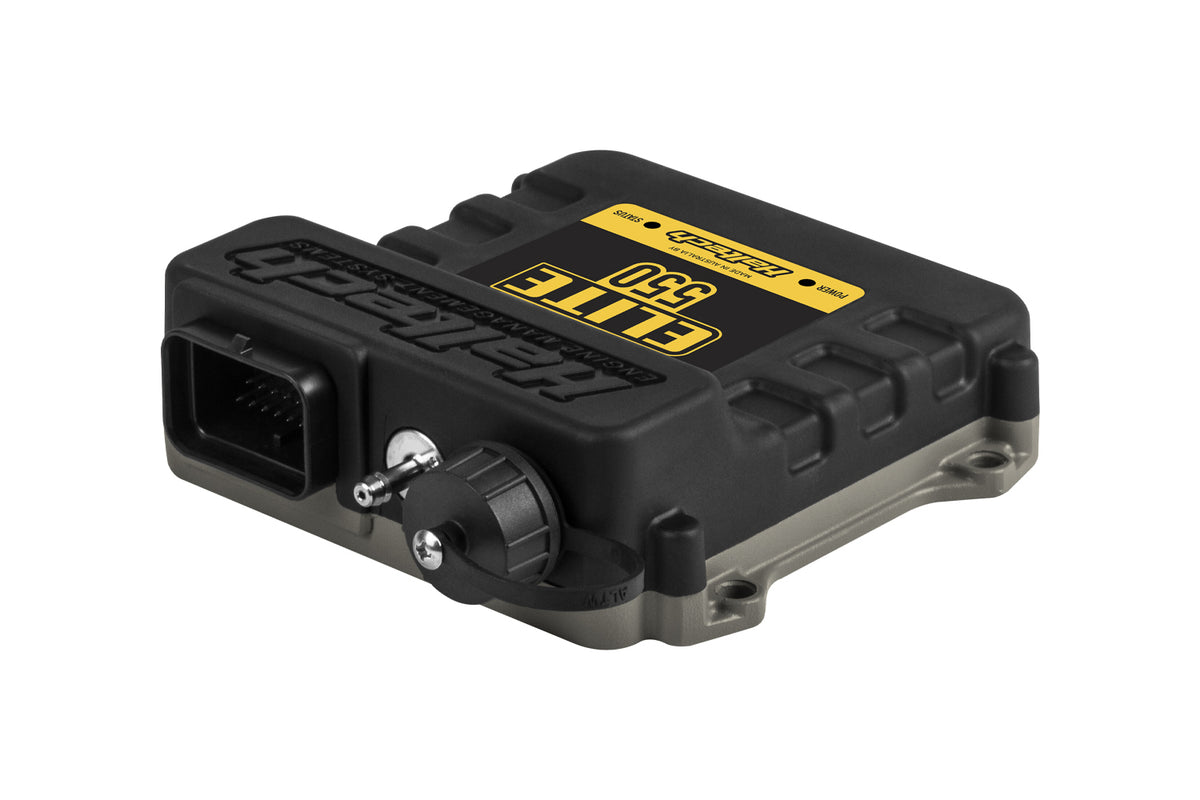

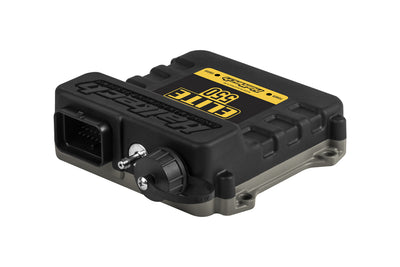

The Haltech Elite 550 ECU + Plug and Pin Set is the Elite 550 ECU with the matching plug and pin set. The Elite 550 is Haltech's entry-level single-connector Elite: full control of fuel, ignition and boost for a basic four-cylinder, V8 or two-rotor build, with flex fuel and on-board logging included.

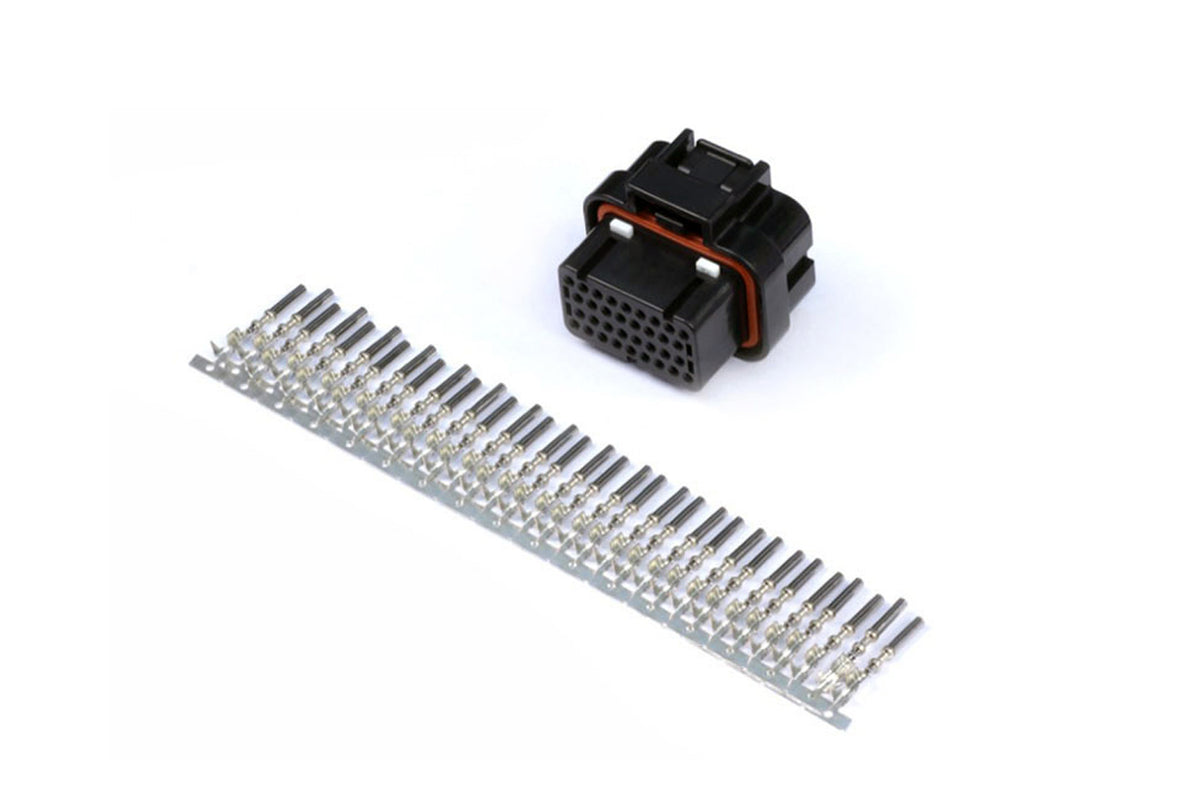

The plug and pin set gives you the ECU-side connectors and terminals to build your own loom from scratch, to whatever length, routing and wire spec the car needs. It is tuned in Haltech's NSP software, the same package used by the Nexus range.

What You'll Feel

• Closed-loop boost and O2 control with long-term learning, so the tune keeps itself tidy between sessions
• Clean cold starts, a stable idle through hot restarts, and crisp throttle response
• Flex fuel blending that keeps the car driving right on any ethanol mix
• Launch control and on-board logging, so you can see what the engine did instead of guessing

Features

• Supports 1 to 8 Cylinder engines
• 1 to 2 Rotor engines
• Normally aspirated or forced induction
• Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
• Sequential, semi-sequential, batch or multipoint injection patterns
• Ignition modes include Direct fire multi-coil, Distributor ignition, or Haltech CDI systems
• Connect to a wide range of Dashes, displays and expansion devices via CAN
• Waterproof case (IP67) (with USB cover fitted)
• 34 position AMP connector
• 4 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
• 4 x Ignition Outputs
• 2 x Dedicated Engine Position inputs with extensive trigger type support
• 1 x Digital Pulsed Input
• 5 x Digital Pulsed Outputs
• 1 x Analogue Voltage Input
• 3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)

Elite 550 ECU Specifications

• Injector outputs: 4 (peak and hold)
• Ignition outputs: 4
• Analog voltage inputs: 1
• Digital pulsed inputs: 1
• Digital pulsed outputs: 5
• CAN bus networks: 1
• MAP sensor: Internal (4 BAR)
• Variable cam control: Single
• Boost control: 3D Closed Loop
• Flex fuel: Yes
• Launch control: Yes
• Long-term learning: Up to 3D
• Tuning table resolution: 32x16 3D
• On-board storage: 2MB

The Details

Part number HT-150401. Universal: 1 to 8 cylinder and 1 to 2 rotor engines. Haltech sells these products for off-road and competition use.

Kit Includes

• 1 x Elite 550 ECU + Plug and Pins to suit

Applications

• Universal: 1 to 8 cylinder and 1 to 2 rotor engines
• Naturally aspirated or forced induction, with TPS, MAP or MAF load sensing

Tuned By Shawn is a Platinum Haltech Dealer with in-house wiring and remote tuning. Add a remote tune and we will have the base map configured for your combination before the ECU ships.
