Elite 1000/1500 Honda Integra DC5 Plug 'n' Play Adaptor Harness (HT-140961)

Put a Haltech Elite 1000/1500 in a 2005-2006 DC5 Integra / RSX without cutting a single factory wire.

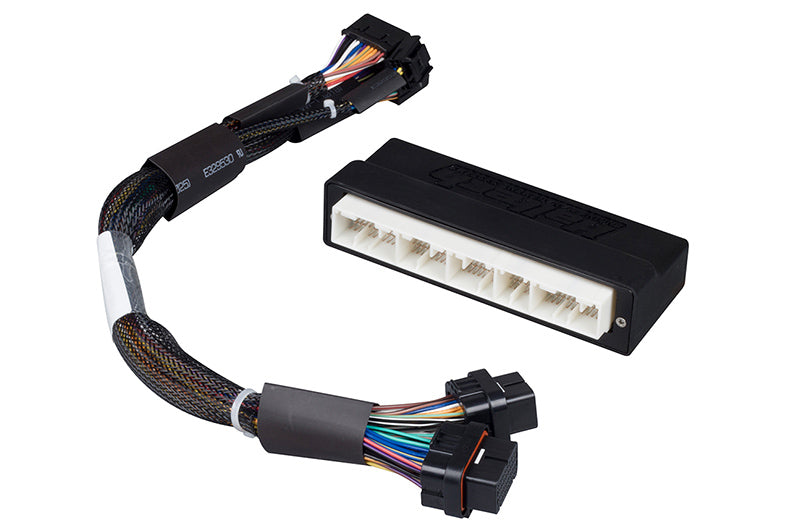

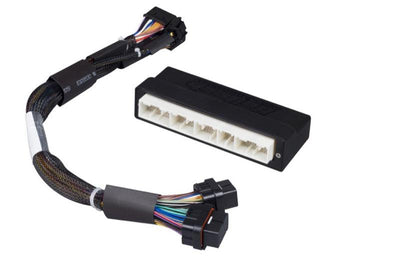

The Haltech Elite 1000/1500 Honda Integra DC5 Plug 'n' Play Adaptor Harness sits between the factory engine harness and a Haltech Elite 1000/1500 ECU. One side carries the factory ECU connectors, the other plugs straight into the Elite, so the factory loom stays untouched and the swap is fully reversible. A typical install is a few hours, not a weekend of pinouts and splices. It suits the 2005-2006 Integra DC5 / Acura RSX with a manual transmission. The factory multiplexed coolant temperature gauge, battery light and A/C request are not supported; see the quick start guide.

Need the ECU as well? The same application is also available as: Elite 1500 ECU kit (HT-150961).

What You'll Feel

• i-VTEC and VTC cam control you set, rather than the factory's compromise
• A boosted or all-motor K20 with sequential injection, knock control and logging
• Factory connectors that click home instead of a loom you have to rebuild
• A stock harness you can return to at any time

Features

• Plug 'n' play adaptor with the Honda Integra DC5 / Acura RSX (05-06) factory ECU connector layout
• Suits Haltech Elite 1000/1500 ECUs
• No cutting or splicing of the factory harness, fully reversible
• Includes an M14 x 1.5 air temp sensor with plug and pins, so the ECU sees real intake temperature from day one
• Auxiliary I/O 16-pin Tyco plug and pins for extra sensors and outputs (wideband, fuel and oil pressure, flex fuel)
• Haltech quick start guide walks through the fit
• Backed by the Haltech limited warranty

The Details

Part number HT-140961. Plug 'n' Play replacement of the factory ECU for Honda Integra DC5/Acura RSX 05-06 Manual transmission only. (Does not support factory multiplexed coolant temperature gauge, battery light and AC request - Please see the product quick start guide for further information). Unsure whether your car matches? Send us the VIN or a photo of the factory ECU plug before ordering and we will confirm.

• Does not support factory multiplexed coolant temperature gauge, battery light and AC request
• Please see the quick start guide for further information
• Elite 1000 ECU does NOT support the factory intake runner control & check engine light
• Please use the Elite 1500 if these functions are required

Kit Includes

• 1x Injection molded plastic plug 'n' play adaptor harness
• 1x M14 x 1.5 air temp sensor with matching plug and pins
• 1x Auxiliary I/O 16 Pin Tyco plug and pins

Applications

• Honda Integra DC5 / Acura RSX (05-06), K20
• 2005-2006 Acura RSX
• Requires a Haltech Elite 1000/1500 ECU (sold separately)
