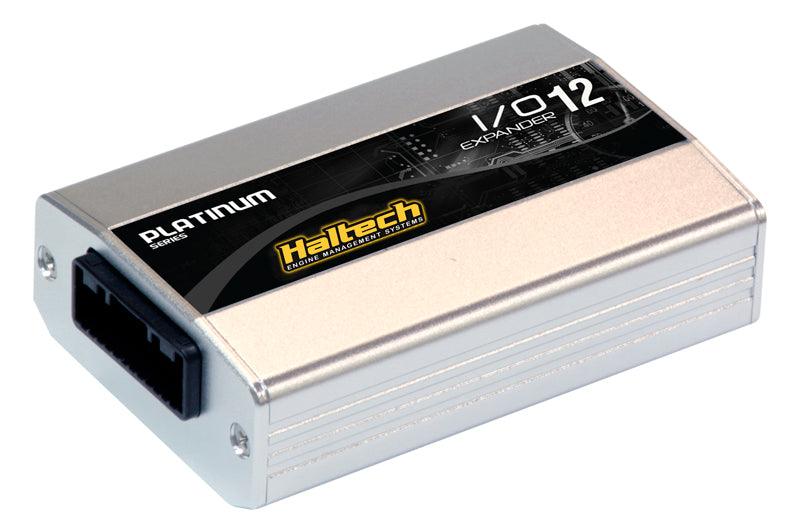

IO 12 Expander - 12 Channel with Flying Lead Harness Kit (CAN ID - Box B) (HT-059905)

SKU: HT-059905

$535.00
CAN Connected
CAN Connected

Single cable install

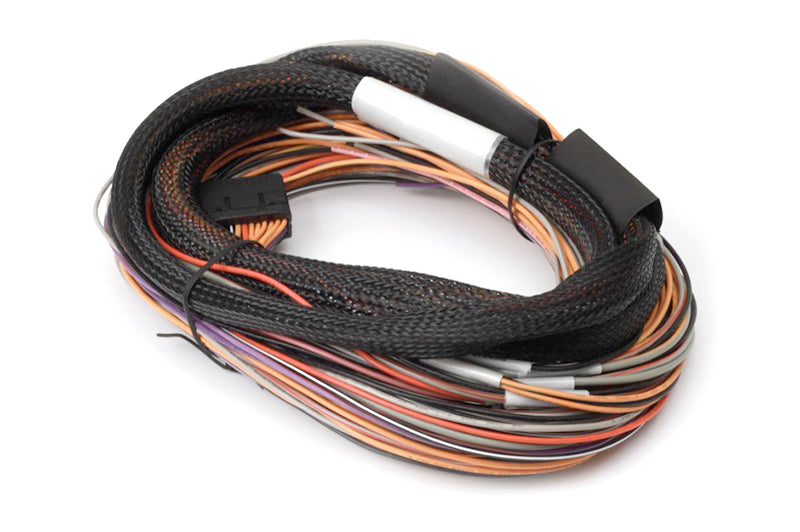

Harness
Harness

In the box
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

IO 12 Expander - 12 Channel with Flying Lead Harness Kit (CAN ID - Box B): the right part for a clean, reliable installation.

Why It Matters

Correct pinouts the first time, labelled circuits that make diagnosis simple, and factory-grade terminations with no splices to suspect later. Wiring is where builds stall, and purpose-built harnesses are how they don't.

The Details

  • SKU: HT-059905
  • Length: 2.5m (8')
  • Outputs: 4 Digital Pulsed Outputs (DPO) 4 Digital Pulsed Inputs (DPI) 4 Analogue Voltage Inputs (AVI)
  • Notes: Combine two IO 12 Expanders with different CAN Identifier ID's (Box A or B) for up to 24 additional channels (subject to ECU compatibility)

Kit Includes

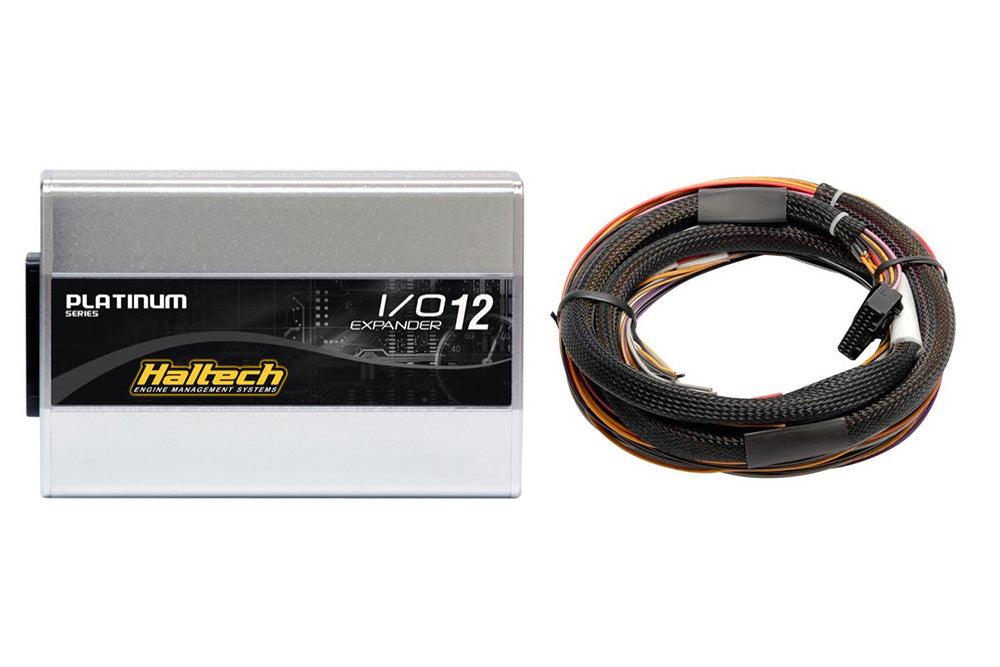

  • IO 12 Expander with matching flying lead harness, Elite CAN cable DTM-4 to 8 pin Black TYCO - 300mm (12")

Applications

Unsure whether this suits your ECU or build? Send us the details before ordering and we will confirm compatibility.

Tuned By Shawn is a Platinum Haltech Dealer with in-house wiring and remote tuning services. If this needs to integrate with a larger build plan, ask and we will spec the full parts list.
