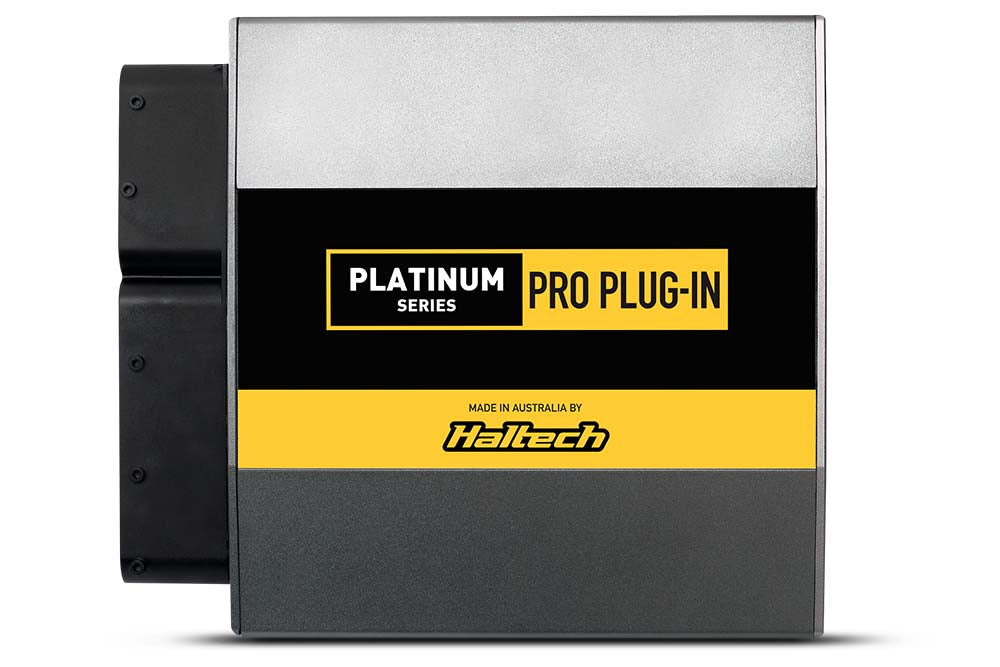

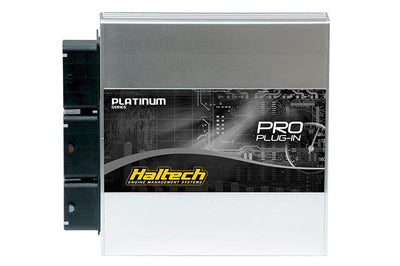

Haltech Platinum PRO Plug-in ECU for Hyundai BK Theta Genesis (HT-055045)

Full standalone engine management with zero harness surgery: Haltech Platinum PRO Plug-in ECU for Hyundai BK Theta Genesis plugs directly into the factory ECU header and takes over from there. Hyundai Genesis BK Theta (2009-12) 2.0 Turbo. Manual transmission only. (Also suits 2013-15 models but does not support factory CAN AC request or electronic wastegate control. Please see the product quick start guide for further information. The stock loom and sensors stay, the factory ceiling goes.

What You'll Feel

Day to day it comes down to this: factory drivability with the ceiling removed: the stock harness and sensors stay, but fuel, ignition, boost, and auxiliary control become fully programmable, tuned to your injectors, turbo, and fuel. The BK Genesis Theta platform has far more in it than the factory calibration allows, and plug-in standalone control opens that up without harness surgery.

Features

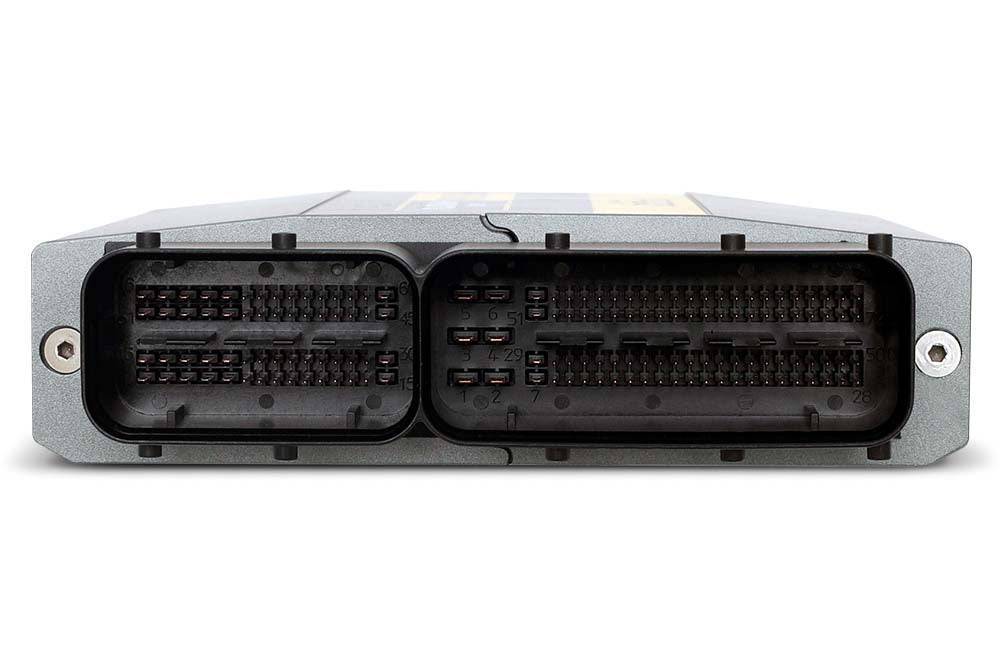

• Plugs directly into the factory ECU header, no harness modification
• Retains factory sensors and wiring
• Fully programmable fuel, ignition, and boost control
• Data logging and CAN expansion support

The Details

• SKU: HT-055045
• Notes: Directly accepts an input from a flex fuel sensor.

Kit Includes

• Platinum PRO Direct Plug-in ECU, Plug and pins for auxiliary I/O harness. Haltech CAN adaptor cable DTM-4 female receptacle/socket to 8 pin black Tyco 3"/75mm (used to adapt a Platinum series ECU to a DTM-4 Elite CAN system), USB programming cable and USB Software Key.

Applications

Hyundai Genesis BK Theta (2009-12) 2.0 Turbo. Manual transmission only. (Also suits 2013-15 models but does not support factory CAN AC request or electronic wastegate control. Please see the product quick start guide for further information. Built for Hyundai Theta applications. Unsure about fitment for your build? Send us your engine and chassis details before ordering and we will confirm compatibility.

Tuned By Shawn is a Platinum Haltech Dealer. Remote tuning sessions over live Zoom are available, so once the hardware is installed we can calibrate it on your injectors, your fuel, and your combination without the car leaving your garage.
