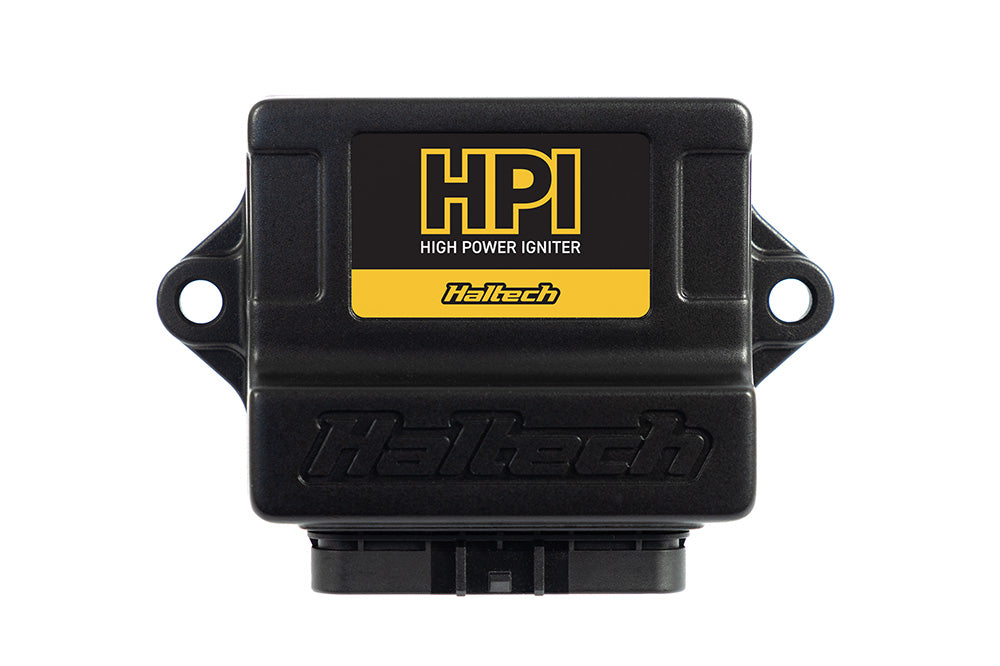

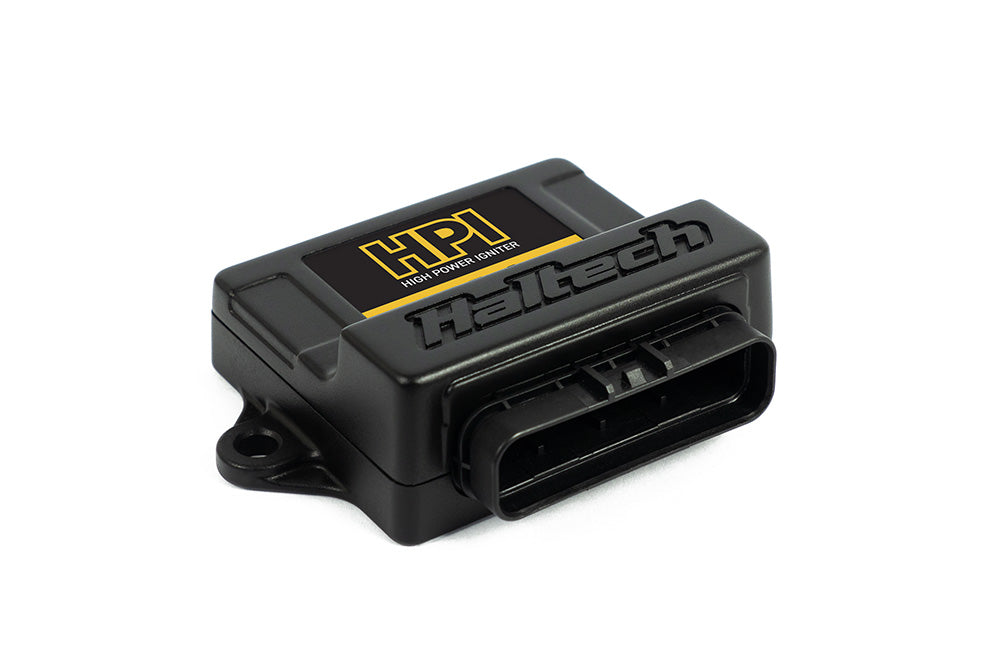

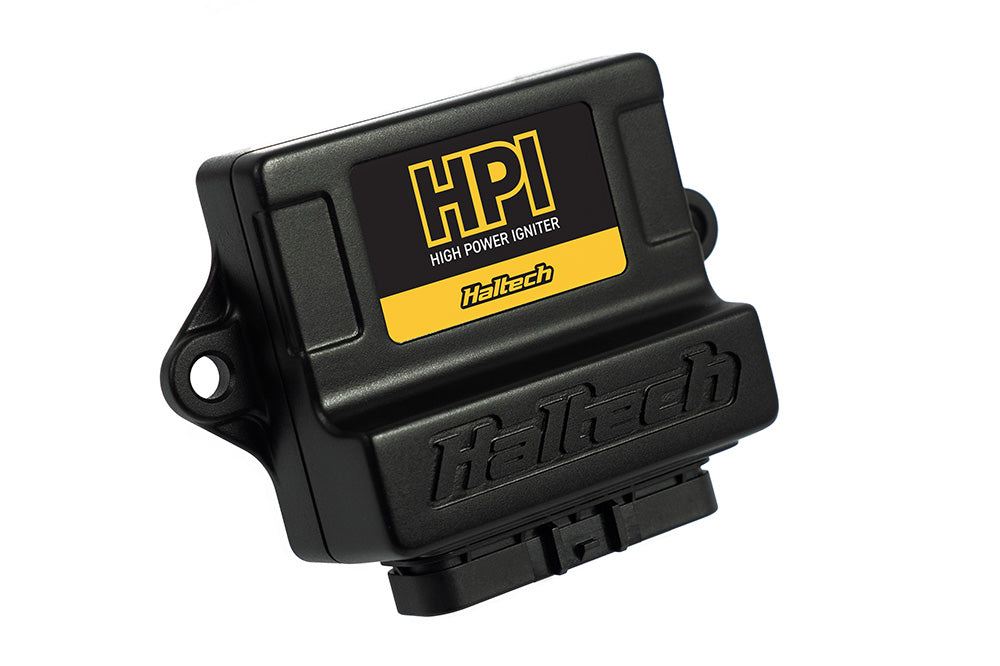

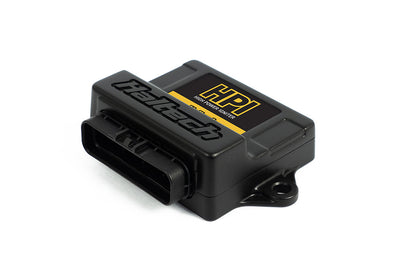

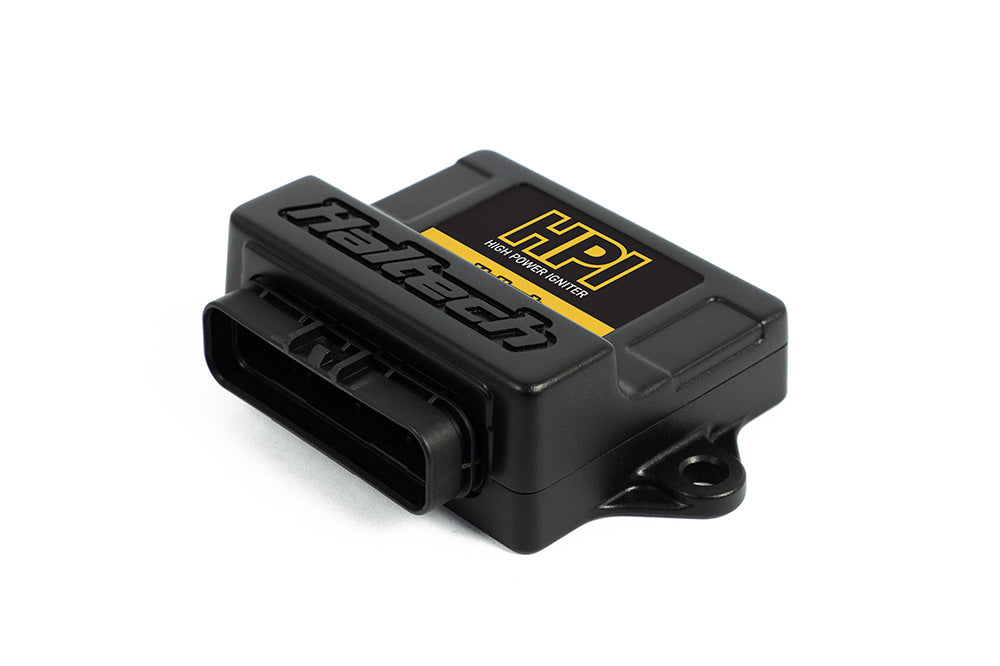

Nexus High Power Igniter Module - 15 Amp Eight Channel Module Only (HT-020058)

Haltech Nexus High Power Igniter Module - 15 Amp Eight Channel

The Nexus High Power Igniter is an 8 channel, 15 amp per channel ignition driver for coils that need an external igniter. Your ECU sends a low current trigger signal and the module switches the coil negative side for each cylinder, so you can run high-energy non-smart coils on a Haltech or most other aftermarket ECUs.

It is built in a compact housing that fits tight cabin or engine bay installs, and it carries an IP66 rating: dust tight and protected against powerful water jets.

Key Features

• 8 channel high current ignition driver
• 15 amps per channel
• Compatible with Haltech ECUs and most aftermarket ECUs
• Compact design for tight cabin or engine bay installations
• Supports multiple ignition system configurations
• IP66 rated: dust tight and protected against powerful water jets

Specifications

What's Included

• 1 x Nexus High Power Igniter Module

Compatibility

• Suits non-smart (non internally ignited) ignition coils that need an external igniter driver
• Works with Haltech ECUs and most aftermarket ECUs
• Not needed for smart coils with a built-in igniter, which are triggered straight from the ECU

Important Notes

• Module only. The mating connector, pins and wiring are not included.
• Emissions notice: Haltech products are designed and sold for sanctioned off-road and competition non-emissions controlled vehicles only. It is the responsibility of the installer and user to ensure compliance with all applicable local and federal laws.
