250 PSI "TI" Fuel/Oil/Wastegate Pressure Sensor (HT-010906)

250 PSI "TI" Fuel/Oil/Wastegate Pressure Sensor: accurate data where the tune needs it. Direct compatibility with Haltech ECU inputs, with calibrations already in the software.

What You'll See

The pressure that matters, live on the dash and in every log. Fuel pressure trending down under load flags a failing pump before it costs an engine. Oil pressure per corner of the track shows surge before a bearing sees it. Wastegate dome pressure confirms boost control is doing what the strategy says.

The Details

• SKU: HT-010906
• Thread: 1/8 NPT
• Notes: "TI" Pressure sensors must not be mounted directly into the fuel rail or engine block, they must be remote mounted and connected via a flexible hose - If required use Pressure Sensor Extension Hose HT-039103

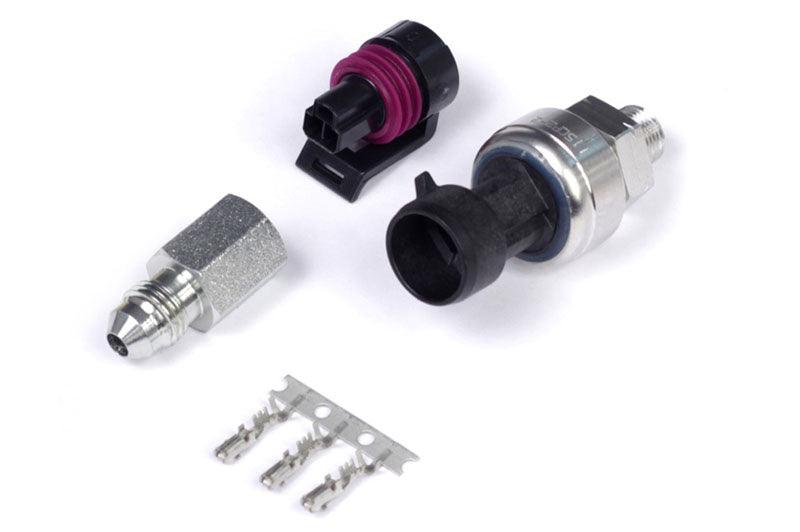

Kit Includes

• Matching plug and pins, -4 AN adaptor.

Applications

Check the notes above before ordering; if anything is unclear, send us your setup details and we will confirm.

Tuned By Shawn is a Platinum Haltech Dealer with in-house wiring and remote tuning services. If this needs to integrate with a larger build plan, ask and we will spec the full parts list.
