Haltech R35 Coil Bracket Kit for Ford Barra 4.0 - Bracket, Coils, Connectors and Harness (HT-120205)

Haltech R35 Coil Bracket Kit for Ford Barra 4.0

The complete R35 coil conversion for your Barra in one box. This kit converts the standard Ford Barra 4.0 ignition coils to genuine Hitachi R35 ignition coils, a popular upgrade across many platforms thanks to their high output, and includes the billet bracket, coils, connectors, mounting hardware and sub-harness to do the whole job.

This is the exact kit referenced on our Nexus R3 Ford Barra Terminated Engine Harness (HT-186405) listing: converting your ignition to R35 coils requires only this kit, with no separate ignition module or ignition module harness needed. The included sub-harness connects all six R35 coil-on-plug coils directly to the ignition breakout connector on the main terminated harness, with each coil plug clearly labeled for accurate cylinder identification and a straightforward install.

Key Features

• Converts the Ford Barra 4.0 engine to Hitachi R35 ignition coils
• Genuine Hitachi R35 coils with mating connectors, pins and seals, dressed with the Haltech label

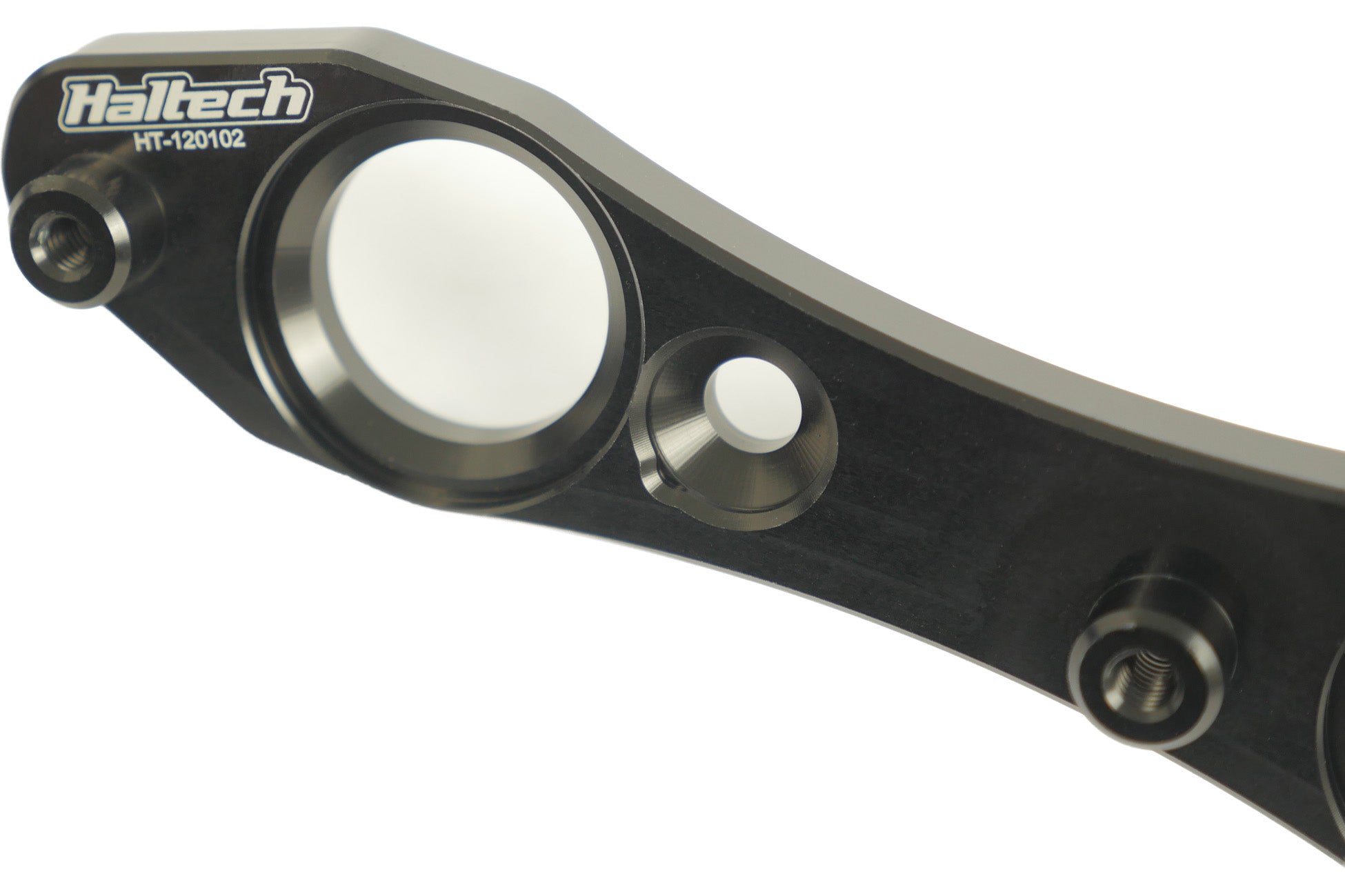

• Bracket machined from 6061-T6 billet aluminum, anodized black with the Haltech logo
• Labeled six-coil sub-harness plugs into the terminated harness ignition breakout, no cutting or guesswork
• Eliminates the need for the factory ignition module and module harness

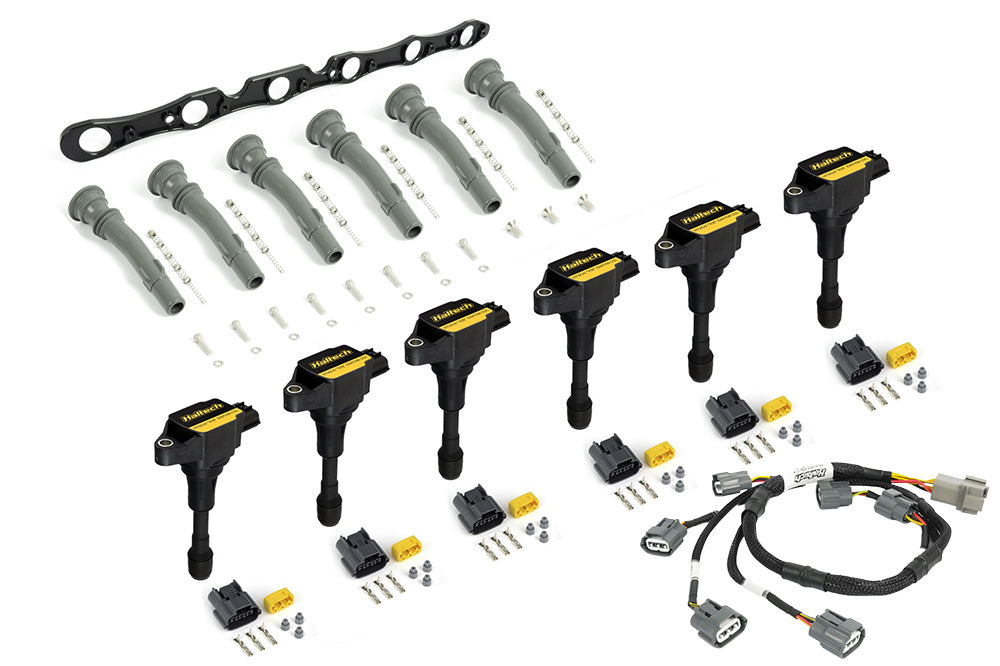

What's Included

• 1 x HT-120102 billet R35 coil bracket in black
• 6 x genuine Hitachi R35 ignition coils with connectors, pins and seals
• 6 x R35 ignition coil silicone stalk adaptors
• 6 x R35 ignition coil springs
• 6 x R35 ignition coil mounting screws and washers
• 3 x bracket mounting screws
• Six-coil sub-harness to suit

Fitment

Suits Ford Barra 4.0 BA, BF and FG engines.

Note: the bracket only fits the FG rocker cover, however the FG rocker cover fits BA and BF engines. BA/BF builds will need to run the FG cover for this conversion.

Important Notes

Emissions notice: Haltech products are designed and sold for sanctioned off-road and competition non-emissions controlled vehicles only. It is the responsibility of the installer and user to ensure compliance with all applicable local and federal laws.

Why Buy From Tuned By Shawn

Tuned By Shawn is a Platinum Haltech dealer specializing in ECU engine management, plug and play wiring solutions and remote tuning. Pairing this with the Nexus R3 Barra terminated harness? We can spec your complete package and tune the combo via live remote session when it is ready.
