Haltech R35 Coil Bracket for Ford Barra 4.0 - Billet Bracket and Mounting Hardware (HT-120102)

Haltech R35 Coil Bracket for Ford Barra 4.0

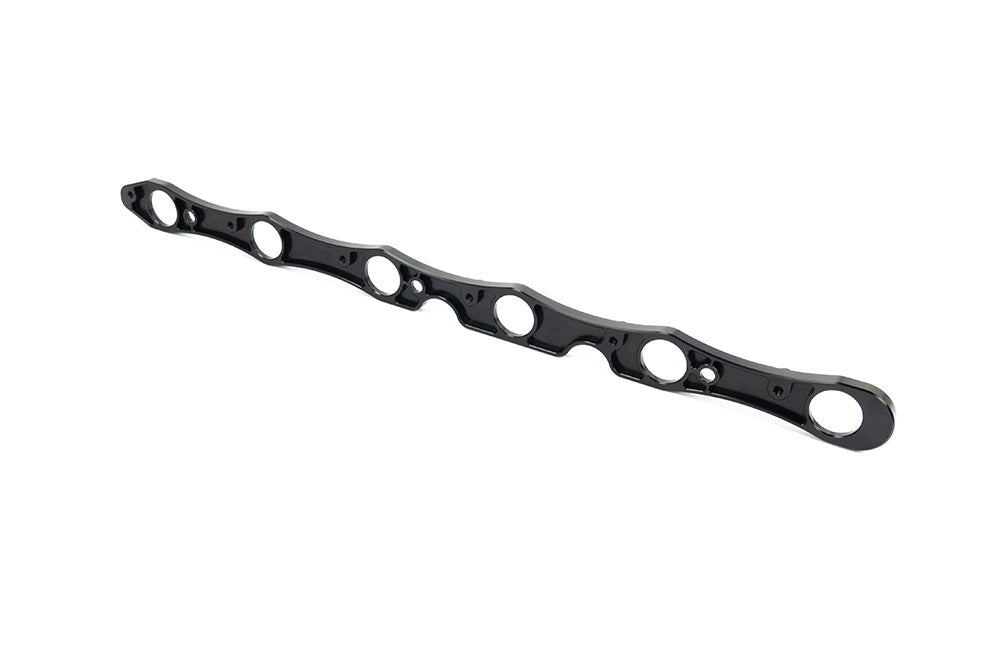

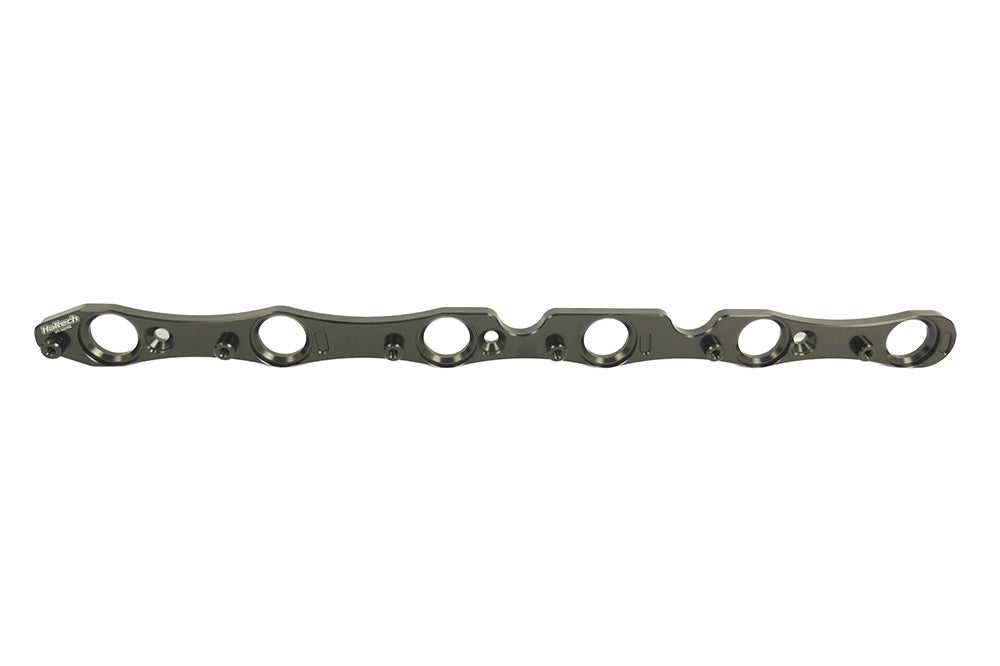

This billet bracket converts a Ford Barra 4.0 inline six from the factory coils to Hitachi R35 GTR ignition coils, the go-to coil upgrade for high boost Barra builds thanks to their high output and built-in ignitors. Machined from 6061-T6 billet aluminum and anodized black with the Haltech logo, it locates all six R35 coils correctly on the engine and includes the mounting hardware to do it properly.

This is the bracket-only option for builders who already have R35 coils or want to source them separately. If you need coils and connectors as well, the HT-120204 kit bundles this bracket with six genuine Hitachi coils.

Vehicle and Engine Fitment

• Ford Barra 4.0 inline six as fitted to Falcon BA, BF, and FG
• Barra engine swaps and conversions running R35 coils

Key Features

• Converts the Barra 4.0 to Hitachi R35 ignition coils with correct coil location and stalk engagement

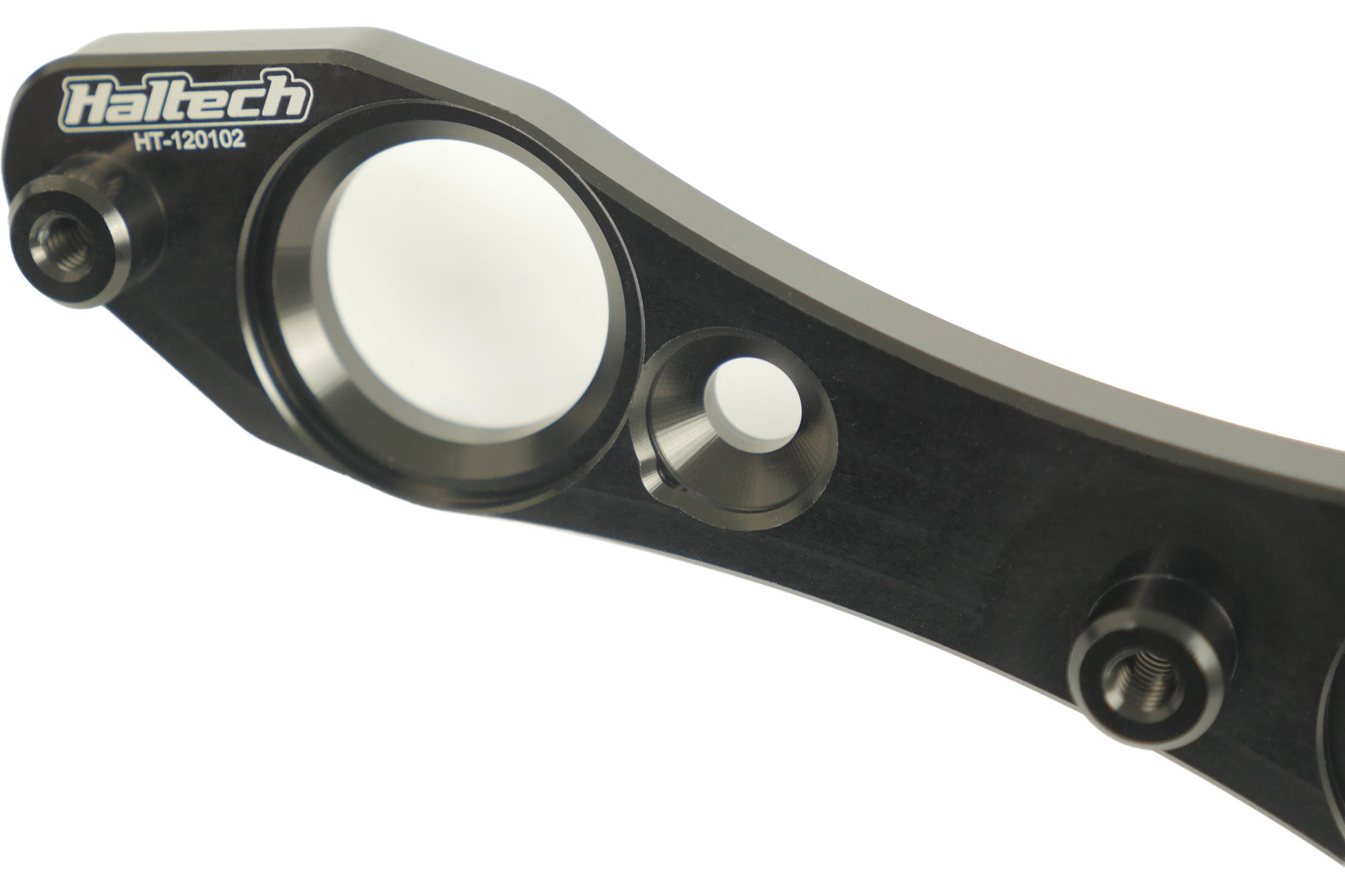

• Machined from 6061-T6 billet aluminum, anodized black with Haltech logo
• Complete mounting hardware included, no fabrication required on the FG rocker cover

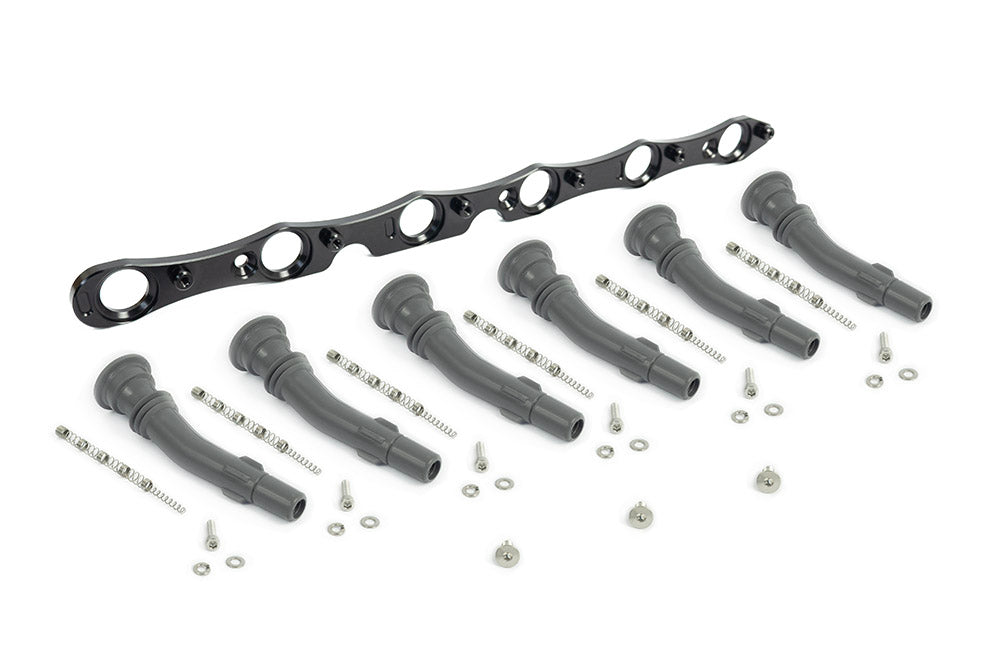

What's Included

• 1 x HT-120102 billet R35 coil bracket, black

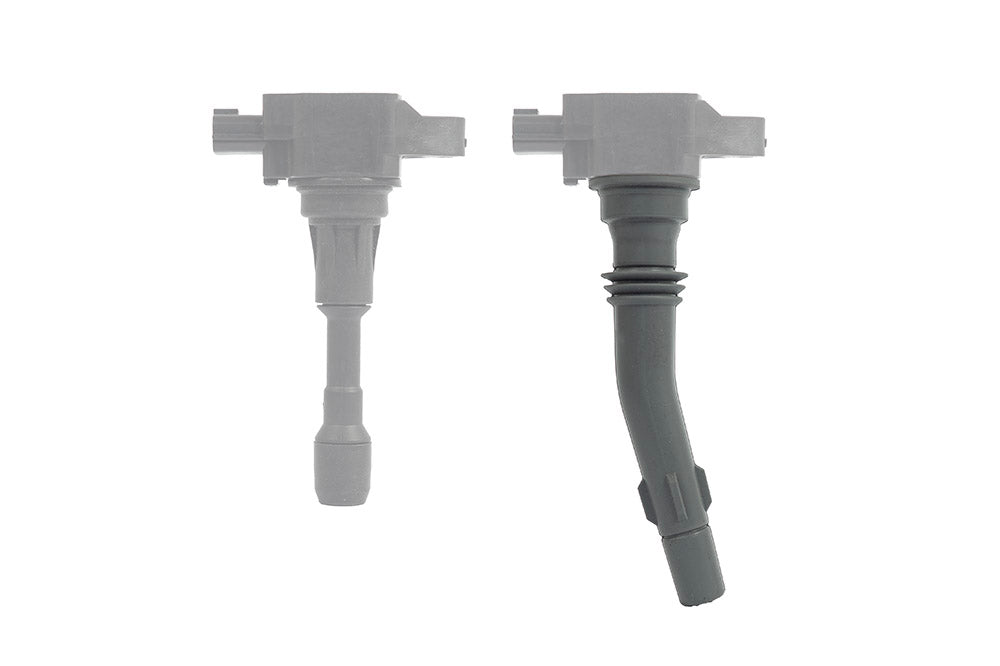

• 6 x R35 ignition coil silicone stalk adaptors
• 6 x R35 ignition coil springs
• 6 x R35 ignition coil mounting screws and washers
• 3 x bracket mounting screws

Compatibility

• Use with Hitachi R35 ignition coils (HT-020106), sold separately, 6 required
• Suits the Haltech R35 coil ecosystem across Elite and Nexus terminated harness setups

Important Notes

• Rocker cover fitment matters: this bracket only fits the FG rocker cover. The FG cover does fit BA and BF engines, so BA/BF builds need to run the FG cover to use this bracket.
• Want the coils and connectors in the box? Order the HT-120204 kit instead, which includes this bracket plus 6 genuine Hitachi R35 coils with mating connectors, pins, and seals.
• Running a Haltech terminated harness and converting to R35 coils? The HT-120205 kit adds the labelled R35 coil sub-harness as well, so the whole ignition side arrives in one box.
• Emissions notice: Haltech products are designed and sold for sanctioned off-road and competition non-emissions controlled vehicles only. It is the responsibility of the installer and user to ensure compliance with all applicable local and federal laws.
