Haltech Nexus T2 ECU & Toyota Tacoma 5VZ-FE | Toyota 4Runner 5VZ-FE 2001-2004 Plug 'n' Play Adapter Harness Kit (HT-650905)

Your Tacoma's 5VZ-FE is more capable than the factory ECU is willing to admit.

The Toyota Tacoma 5VZ-FE is a reliable, proven engine with real aftermarket potential, but standalone ECU support for this platform is genuinely rare. The Tuned By Shawn PNP Wiring Harness Kit for the Haltech Nexus connects directly to your factory harness without any permanent modifications, giving the Haltech Nexus full standalone engine control. No cutting, no splicing, fully reversible.

Advantages

• Fuel delivery that stays accurate and consistent regardless of elevation or temperature
• Throttle response that's crisp instead of soft and over-dampened
• Engine behavior tuned to your actual modifications, not Toyota's averaged baseline
• Stable idle and steady power delivery that doesn't drift with heat
• A platform that can actually support the build you're planning

Features

• Plug-and-play fitment for 2001-2004 Toyota Tacoma 5VZ-FE, manual transmission
• Paired with the Haltech Nexus T2 ECU (HT-211000)
• No cutting or splicing of factory wiring
• OEM-quality connectors, USA-built by Boomslang Fabrication
• Fully reversible, factory harness preserved
• For competition and off-road use

The Details

Built specifically for this vehicle's connector layout with OEM-spec connectors and correct wire gauge throughout. Your factory harness stays completely untouched and the car can return to stock at any time. The Haltech Nexus takes full engine control once installed, giving your tuner a clean vehicle-specific foundation to build a proper map from.

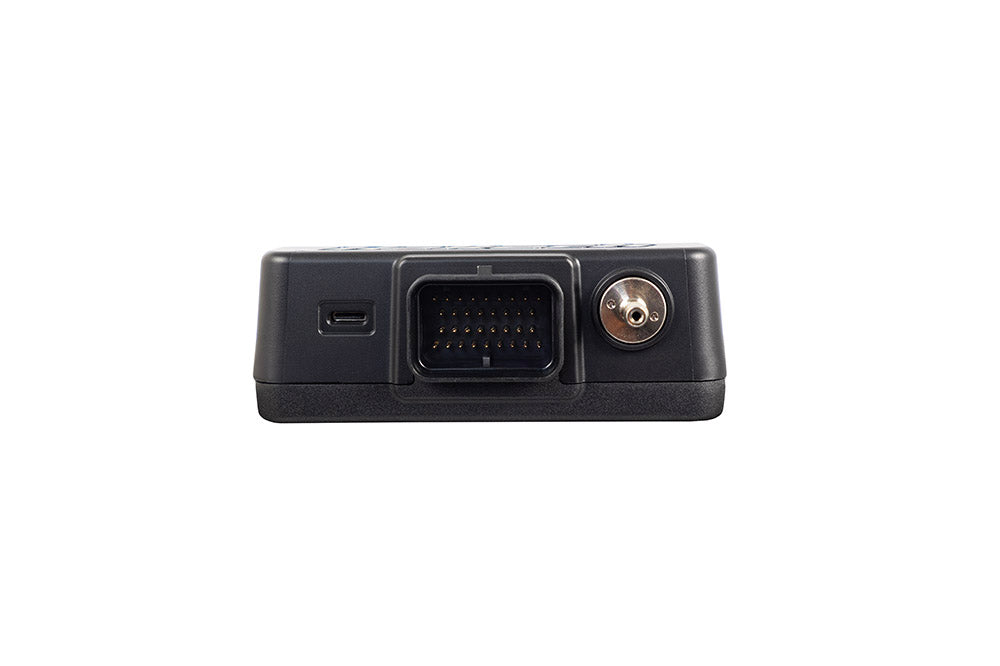

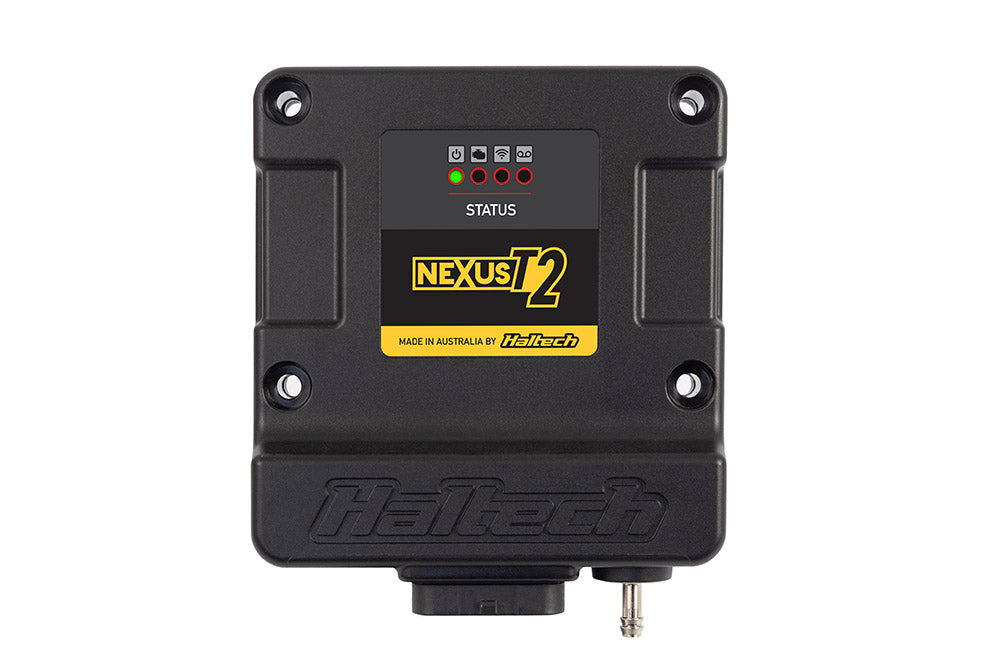

Why the Nexus T2

The Nexus T2 is Haltech's entry level standalone ECU, successor to the Elite 750, bringing modern Nexus platform technology to budget minded builds:

• 6 x fuel injection and 6 x ignition outputs
• Internal 4 Bar MAP sensor, ready for boost
• Closed loop O2 control with long term learning (with optional CAN wideband controller)
• 4D closed loop boost control and flex fuel support
• Variable cam control for up to 2 camshafts
• Launch control, traction control, anti-lag and flat shift
• 32MB onboard logging plus a 4-channel onboard oscilloscope
• CAN connectivity for Haltech dashes, keypads and expansion devices
• WiFi and USB-C communication in an IP-66 waterproof case
• Fully enabled from the box with no extra feature unlock charges

Kit Includes

• 1x Boomslang PNP wiring harness (BF29111-1500) for 2001-2004 Toyota Tacoma 5VZ-FE
• Haltech Nexus T2 ECU (HT-211000)
• Air Temp Sensor - Small Thread Thread: M14 x 1.5

Fitment

2001-2004 Toyota Tacoma 5VZ-FE / 2001-2004 Toyota 4Runner 5VZ-FE, Manual Transmission.

Important Notes

Manual transmission vehicles only. The Nexus T2 does not support drive-by-wire throttle control. Emissions notice: Haltech products are designed and sold for sanctioned off-road and competition non-emissions controlled vehicles only. It is the responsibility of the installer and user to ensure compliance with all applicable local and federal laws.
