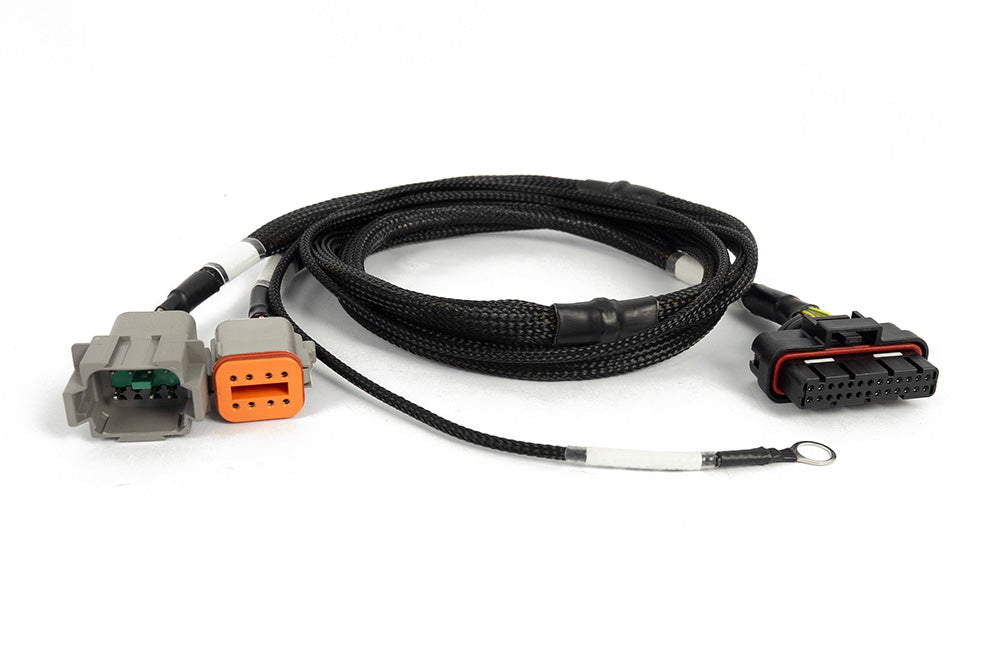

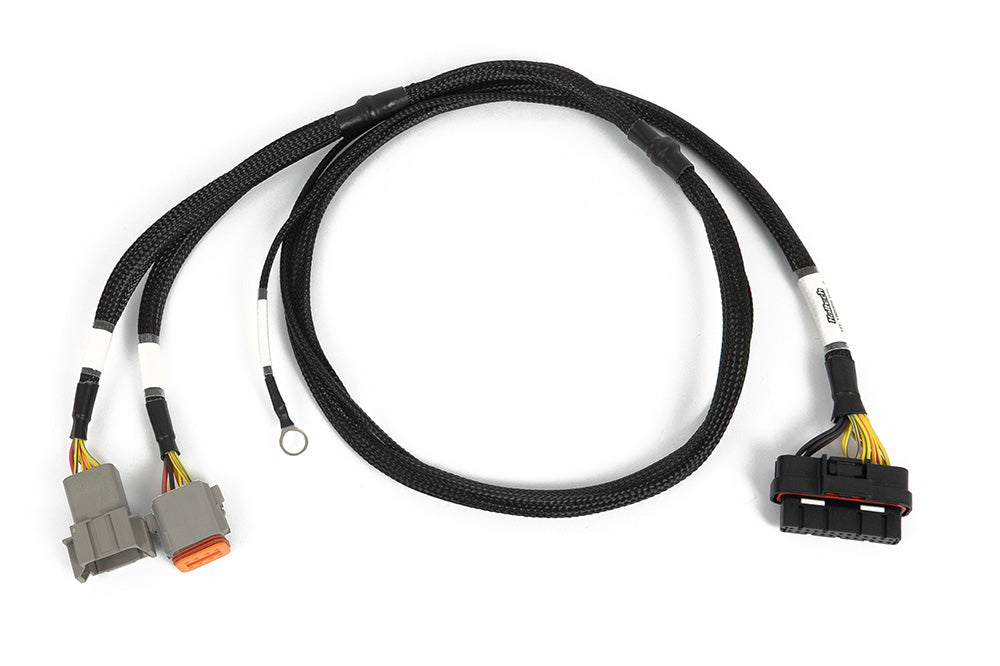

Haltech Nexus 6 Cylinder Igniter Adapter Harness (HT-186069)

Haltech Nexus 6 Cylinder Igniter Adapter Harness

The missing link between your Nexus terminated harness and factory coils. This adapter harness integrates a 6 channel Haltech High Power Igniter (HPI6) into a Nexus terminated engine harness, enabling the Nexus ECU to correctly trigger non-igniter ignition coils through the compatible ignition sub-harness.

On a Barra build running the factory BA, BF or FG coils, this is the ignition module harness called out as required on our ignition harness listings. The stock Barra coils have no built-in igniters, so the HPI6 does the switching, and this adapter wires it cleanly into the terminated harness with no cutting or splicing.

Compatibility

• Works with: Nexus R3 Ford Barra Terminated Engine Harness (HT-186405)
• Pairs with: Ford Barra BA/BF ignition harness (HT-130345) or Ford Barra FG ignition harness (HT-130347)
• Requires: Haltech 6 channel High Power Igniter (HPI6), sold separately

Important Notes

This adapter is only needed when running coils without built-in igniters, such as the factory Barra coils. Converting to R35 GT-R coils instead? The R35 coils have built-in igniters, so you skip this part and the HPI6 entirely: the HT-120205 R35 coil bracket kit is all that is required.

Emissions notice: Haltech products are designed and sold for sanctioned off-road and competition non-emissions controlled vehicles only. It is the responsibility of the installer and user to ensure compliance with all applicable local and federal laws.
