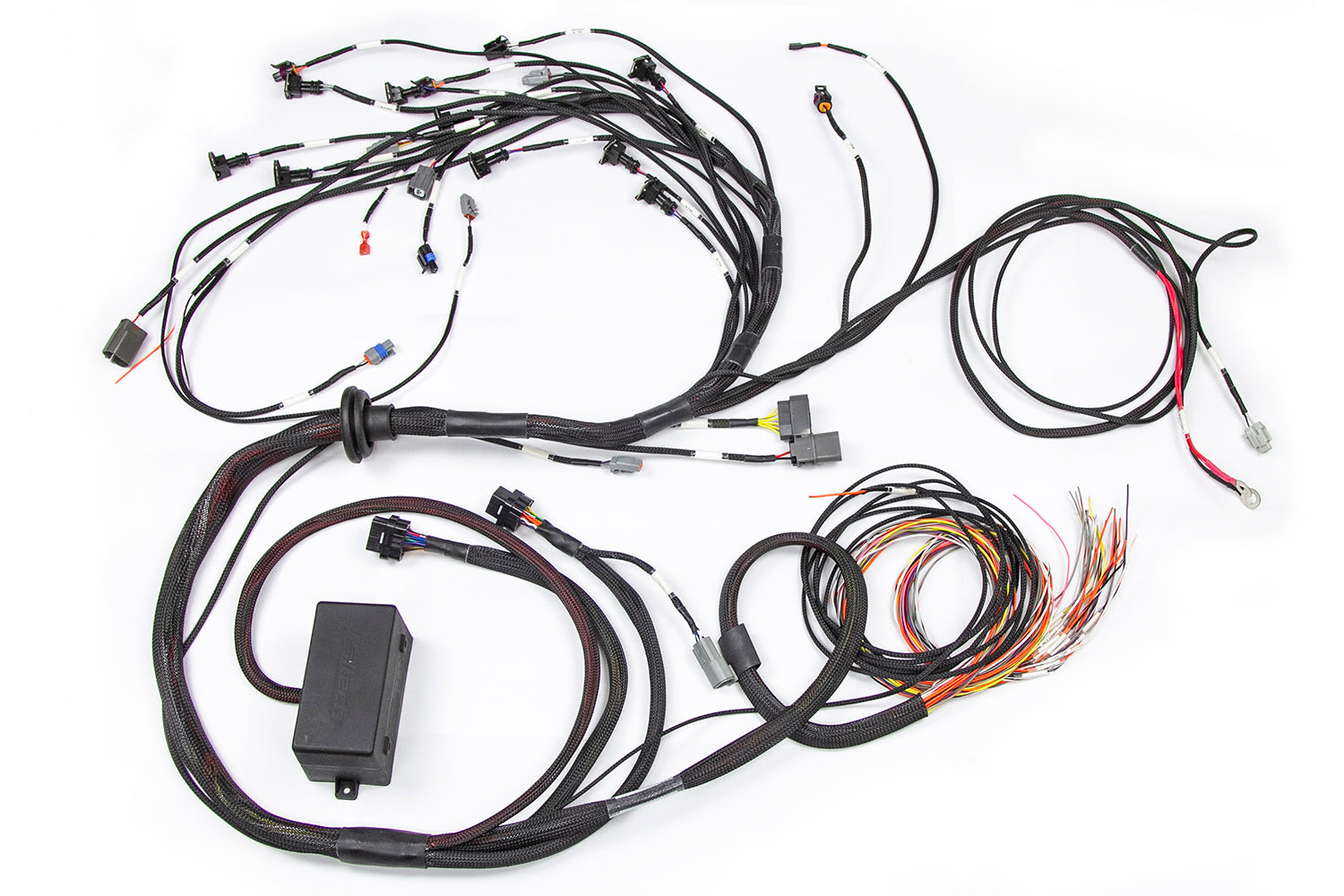

Haltech Elite 2000/2500 Terminated Engine Harness for Nissan RB - RB20, RB25, RB26, RB30 (HT-130326)

Haltech Elite 2000/2500 Terminated Engine Harness for Nissan RB

This terminated engine harness is the fastest and most cost effective way to wire a Nissan RB powered race car or engine conversion running a Haltech Elite 2000 or Elite 2500 ECU. Connect a handful of clearly labelled wires and the engine side of the wiring job is done in hours, not days, with a quick start guide that walks you through the install.

It covers the whole RB family, RB20, RB25, RB26, and RB30, with EV1 injector connectors, and it forms the backbone of a modular harness system: CAS and ignition sub-harnesses simply plug into the breakout connectors, so you configure the harness to your exact engine series and coil setup.

Applications

• Nissan RB20DET, RB25DET, RB26DETT twin cam engines (Skyline R31 through R34, Stagea)
• Nissan RB30 single cam engines and RB30 conversions
• RB engine swaps into any chassis using an Elite 2000 or Elite 2500 ECU

Key Features

• Plug and play labelled wiring designed for the RB engine family, EV1 injector connectors
• Includes engine harness with fuse block for clean power distribution
• Modular breakout connectors accept series-specific CAS and ignition sub-harnesses
• Connector pack for auxiliary I/O lets you wire extra sensors and outputs properly
• Opens the door to the full tuning capability of the Elite 2000/2500 platform

What's Included

• Terminated engine harness for Nissan RB with fuse block
• Connector pack for auxiliary I/O
• Quick start guide

Compatibility

• Use with a Haltech Elite 2000 or Elite 2500 ECU, sold separately
• CAS sub-harness sold separately: HT-130327 for RB twin cam (R32/33 metal case and R34 plastic case CAS), or HT-130344 for RB30 single cam
• Ignition sub-harness sold separately: HT-130331 for Series 1 coils with external ignitor, HT-130330 for Series 2 coils with internal ignitor, or HT-130343 for RB30 single cam LS1 coil conversions
• Converting to R35 coils on a Haltech terminated harness? The Elite i6 R35 COP Ignition Harness (HT-130349) plugs the six R35 coils straight into this harness ignition breakout

Important Notes

• This is the engine harness only. The ECU, CAS sub-harness, and ignition sub-harness are all sold separately, and the factory TPS connector is not included, so build your parts list from the Compatibility section before ordering.
• Match the ignition sub-harness to your coil series: Series 1 coils use an external OEM ignition module, Series 2 coils have internal ignitors. Ordering the wrong one is the most common mistake on RB harness builds.
• Emissions notice: Haltech products are designed and sold for sanctioned off-road and competition non-emissions controlled vehicles only. It is the responsibility of the installer and user to ensure compliance with all applicable local and federal laws.
