Haltech Driveshaft Split Collar 1.875 Inch / 47.63mm ID 8 Magnet - Driveshaft Speed Pickup (HT-011701)

SKU: HT-011701

$125.00
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

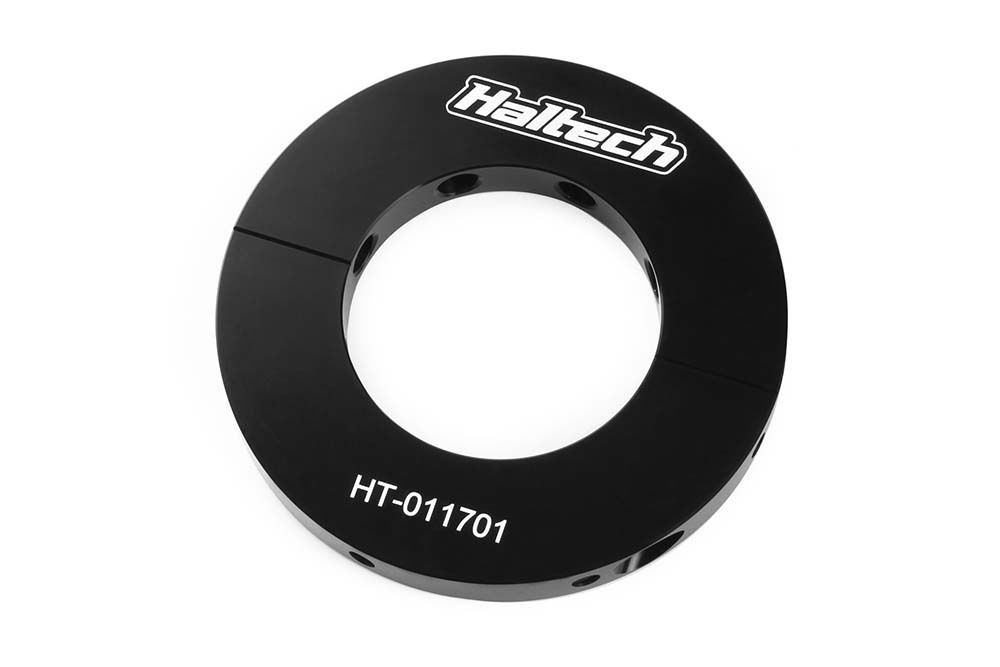

Haltech Driveshaft Split Collar 1.875 Inch / 47.63mm ID 8 Magnet

This 8 magnet split collar is the clean way to add driveshaft RPM measurement to a drag or race car. It clamps around a 1.875 inch (47.63mm) driveshaft, rear-end yoke, or coupler and works with a hall effect sensor to feed accurate driveshaft speed into your ECU. The two-piece split design means no driveshaft removal: it bolts around the shaft in place using the included Allen key.

Driveshaft RPM is the input that unlocks serious race control strategies, most notably Advanced Torque Management on the Haltech Elite 2500 T and Nexus platforms, plus wheel slip based traction control and data logging for chassis tuning.

Key Features

  • 8 evenly spaced magnets for a high resolution driveshaft speed signal
  • Two-piece split collar design installs without removing the driveshaft
  • Machined for balance and secure clamping at drag racing shaft speeds

Specifications

Inner Diameter 1.875 inch / 47.63mm
Outer Diameter 3.385 inch / 86mm
Width 0.375 inch / 9.54mm
Magnet Count 8

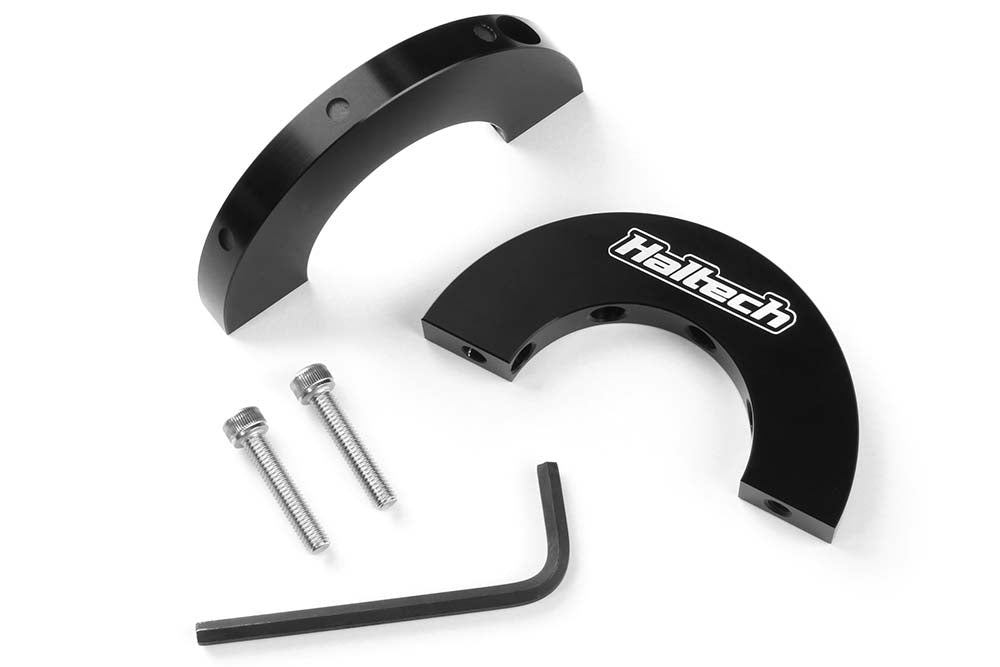

What's Included

  • 1 x driveshaft split collar, 1.875 inch (47.63mm) ID, 8 magnet
  • 1 x 5/32 Allen key

Compatibility

  • Use with a Haltech hall effect sensor such as the Red Single Channel Hall Effect Sensor M12x1.0 (HT-010610), sold separately
  • Pairs with Advanced Torque Management on the Elite 2500 T (HT-151310) and driveshaft speed functions on Nexus ECUs
  • Other sizes available: HT-011700 (1.812 inch / 46mm), HT-011702 (2.125 inch / 53.98mm), HT-011703 (2.187 inch / 55.55mm)

Important Notes

  • Measure your driveshaft, yoke, or coupler diameter before ordering. The collar must match the measured outside diameter for secure clamping; see the other sizes listed above if 1.875 inch is not your size.
  • Emissions notice: Haltech products are designed and sold for sanctioned off-road and competition non-emissions controlled vehicles only. It is the responsibility of the installer and user to ensure compliance with all applicable local and federal laws.
