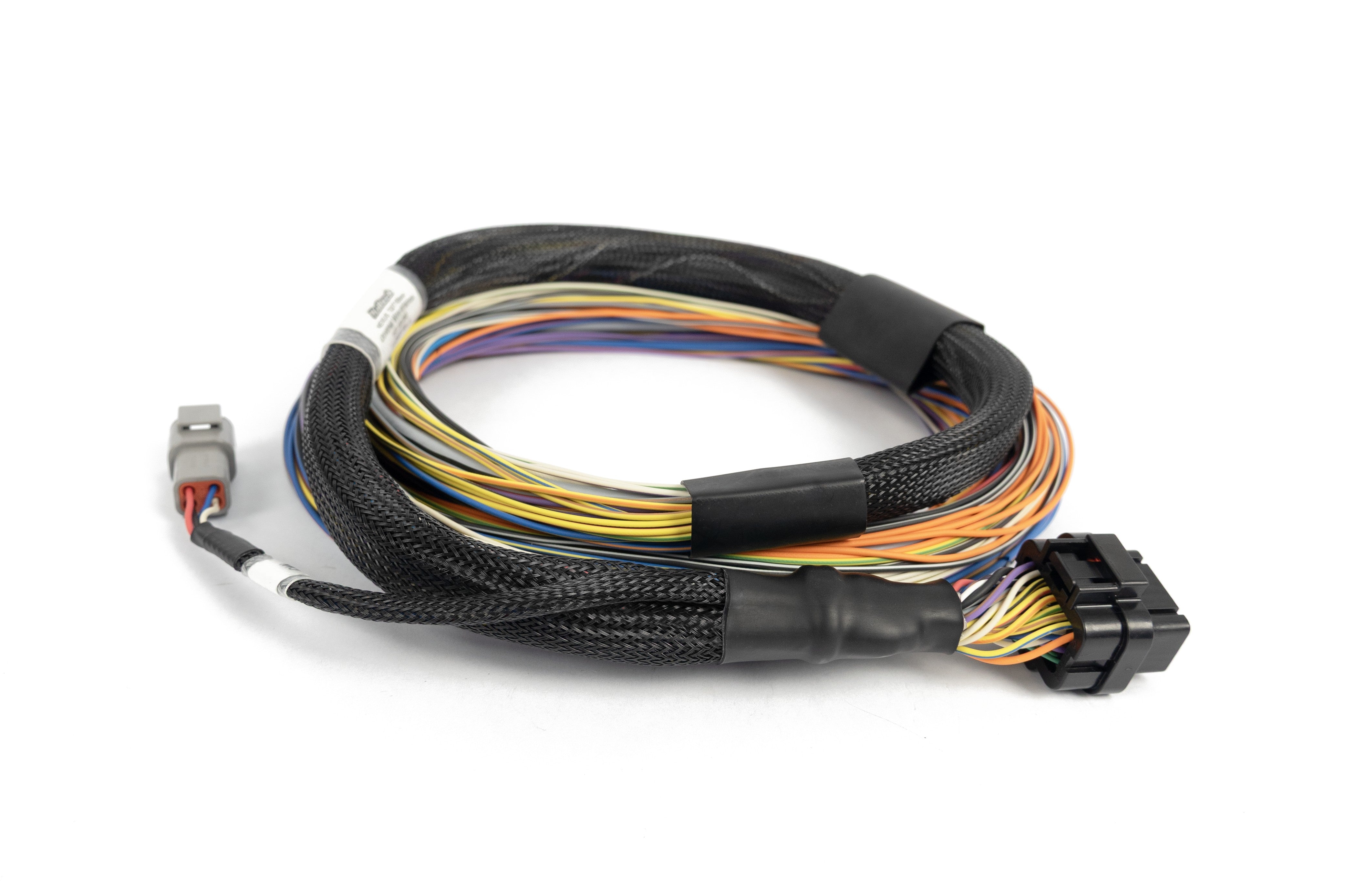

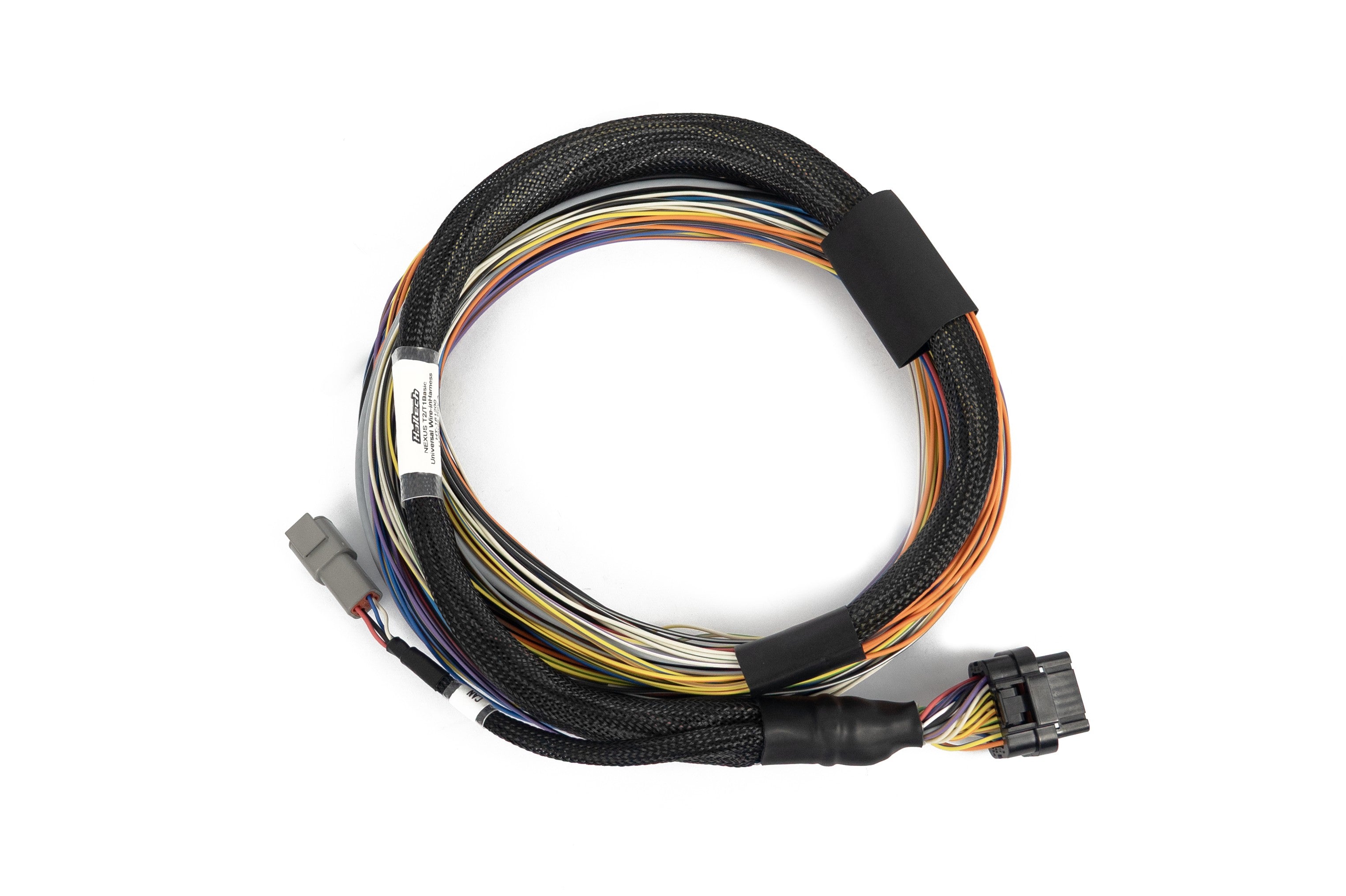

Haltech Basic Universal Wire-in Harness for Nexus T1 and T2 ECU - 2.5m 8ft (HT-181200)

Haltech Basic Universal Wire-in Harness for Nexus T1 and T2

Wire your Nexus T series ECU the right way with Haltech's Basic Universal Wire-in Harness, purpose built for the Nexus T1 and T2 ECUs. Ideal for modified street cars, engine swaps, EFI conversions and custom wiring jobs, this harness plugs directly into the ECU's 34 position Superseal connector at one end and gives you clearly labelled, color coded unterminated wires at the other.

Connect the terminated end to your Nexus T1 or T2, follow the supplied wiring diagram for your engine connections, load your base map and you are ready to go. Every wire matches the detailed wiring diagram for a confusion free installation, with the quick start guide and NSP software downloadable from Haltech.

Key Features

• Direct plug-in fit for Haltech Nexus T1 and Nexus T2 ECUs
• 2.5m (8ft) length, ideal for engine bay routing on most builds
• Color coded and labelled wires matching the wiring diagram
• Connector for Haltech CAN devices such as digital dashes and keypads
• Quality TXL automotive wire in a braided loom

Important Notes

This is the Basic harness and does not include a fuse and relay box or firewall grommet. If you want a harness with the moulded Haltech fuse box, relays, fuses and firewall grommet included, step up to the Premium Universal Wire-in Harness (HT-181201). ECU sold separately.
