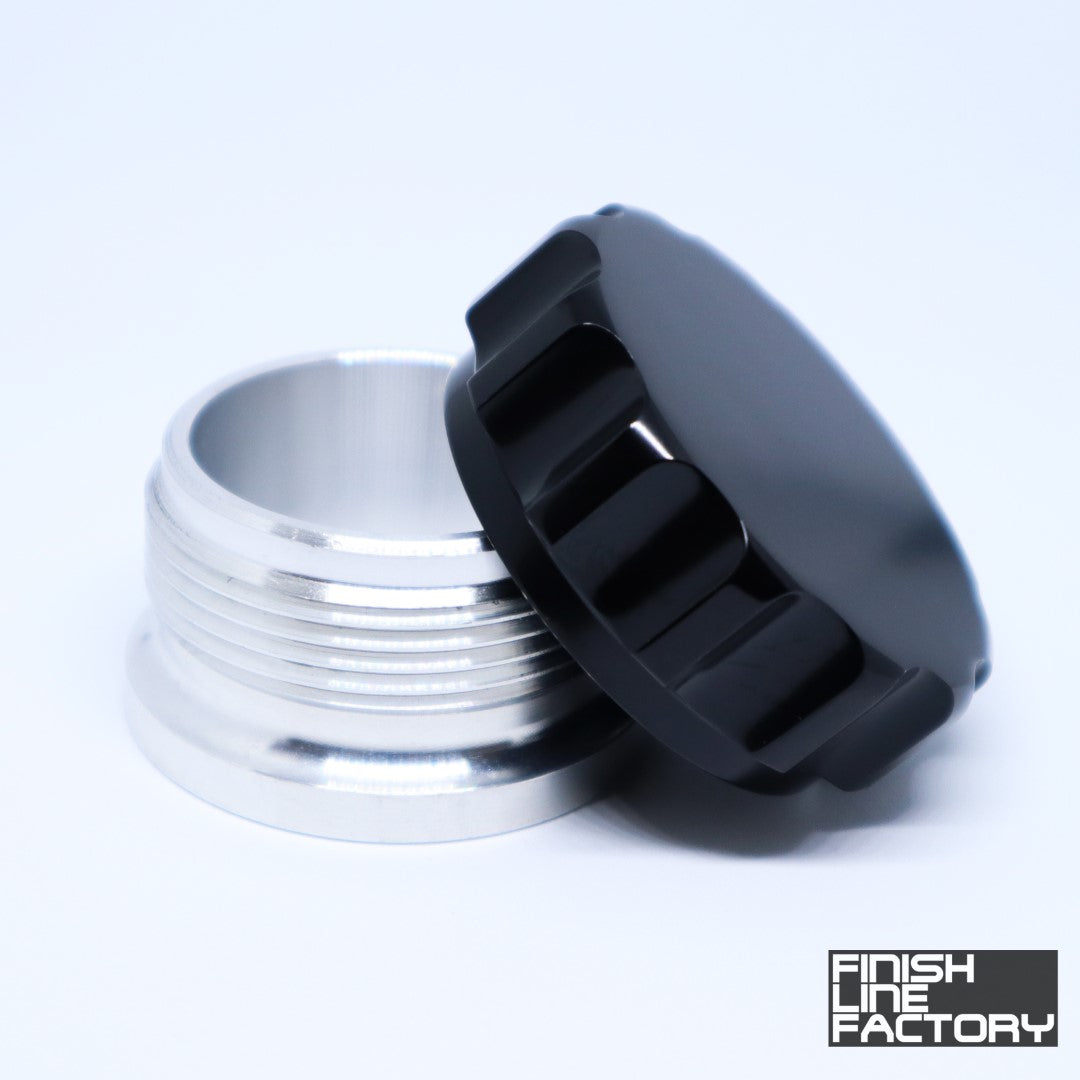

Weld-on Filler Neck and Cap

Every custom tank needs a mouth, and welding one on beats improvising one.

Fuel cells, overflow tanks, and catch cans all need a filling point that seals. The Finish Line Factory Weld On Filler Neck and Cap supplies both halves: a 6061 aluminum neck that welds to your vessel and a matching threaded cap, in 1.0 inch, 1.5 inch, 2.0 inch, 2.5 inch, 3.0 inch diameters. Cut the hole, weld the neck, thread the cap. A finished tank instead of a science project.

Benefits

• The tank gains a proper, sealed filling point in one weld session
• The cap threads on smooth and seats with a confident stop
• Matched neck and cap means no chasing a lid that fits later
• Aluminum-to-aluminum welding keeps the job inside normal TIG skills

Features

• 6061 aluminum weld-on filler neck with matching threaded cap
• Neck diameters: 1.0 inch, 1.5 inch, 2.0 inch, 2.5 inch, 3.0 inch
• Welds to aluminum tanks, cells, and reservoirs
• Perfect for custom fuel cells, overflow tanks, catch cans, and reservoirs
• Sold as a neck and cap set

The Details

6061 parent material is the point: the neck welds to aluminum vessels with standard TIG practice, matching filler and reasonable amperage, without fighting dissimilar metals. Cut the opening slightly under the neck's outer diameter, chamfer, and weld in stages to manage distortion on thin tank walls; a warped sealing face is the only way to ruin this part. Size the neck to the job, since a 3 inch mouth fills a fuel cell fast at the pump while a 1 inch neck suits a coolant overflow. Pressure-check the finished vessel before service, as every weld deserves proof before fuel touches it.

Kit Includes

• 1x Weld-on Filler Neck and Cap (size per your selection)

Applications

• Diameters: 1.0 inch, 1.5 inch, 2.0 inch, 2.5 inch, 3.0 inch
• Common uses: custom fuel cells, coolant overflow and expansion tanks, catch cans, dry sump and reservoir tanks
• Welds to aluminum vessels (TIG recommended)
