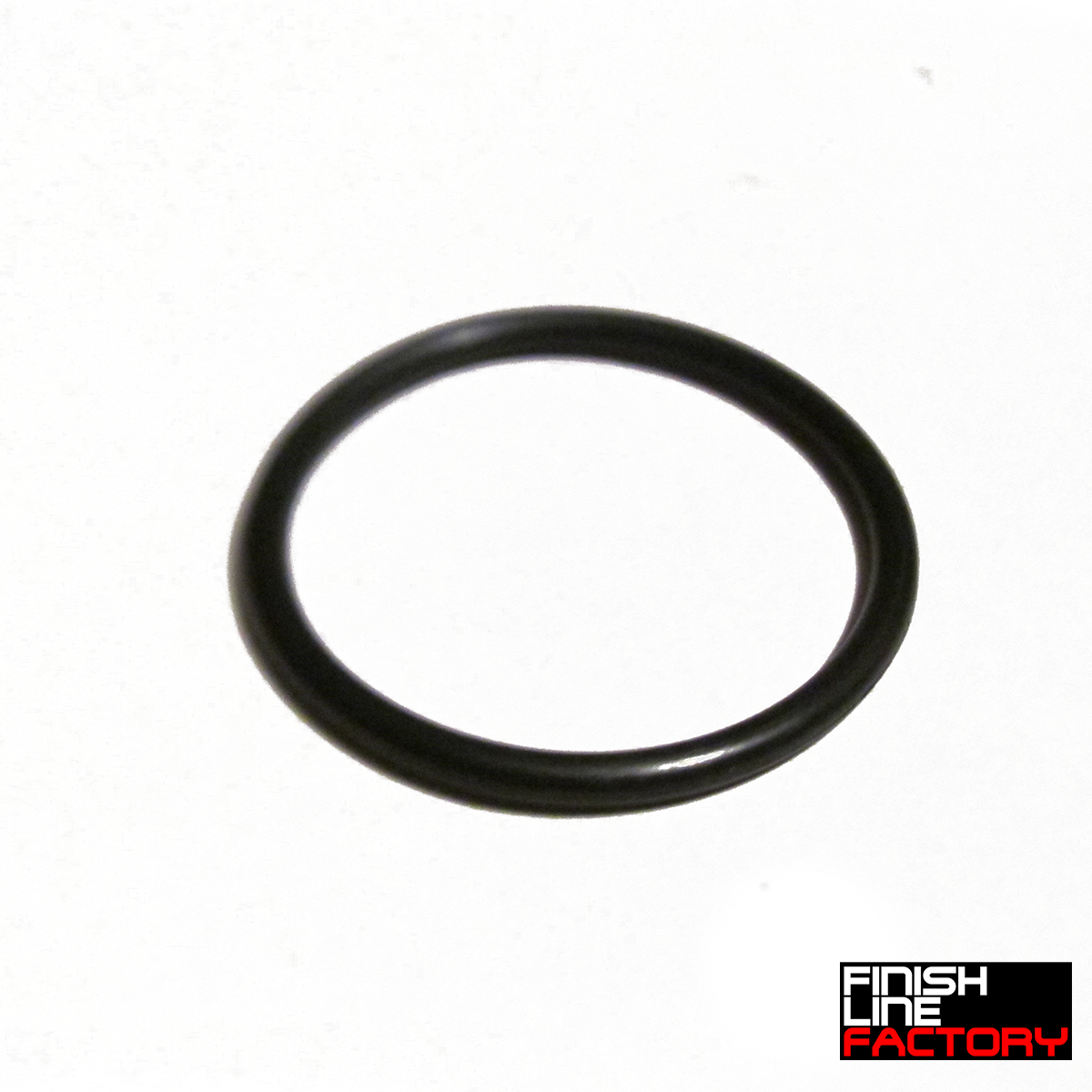

Viton O-Ring (for ORB Fitting)

The whole ORB standard rests on one rubber ring, so make it the right rubber.

Every o-ring boss joint in the system seals on a ring that costs less than coffee. The Finish Line Factory Viton O-Ring makes that ring count: excellent resistance to high temperatures and chemicals, in cross sections 1.6 mm CS, 1.8 mm CS, 2.00 mm CS, 2.2 mm CS, 2.5 mm CS, 2.95 mm CS, 3.00 mm CS and inner diameters 7.5 mm ID, 10.3 mm ID, 8.9 mm ID, 11.8 mm ID, 16.3 mm ID, 19.1 mm ID, 23.5 mm ID, 29.5 mm ID, 37.0 mm ID. For fuel systems, oil systems, and almost any harsh fluid environment. Stock spares; use them freely.

Benefits

• ORB joints reseal confidently at every rebuild
• Fuel and heat exposure stop being a countdown on the seal
• The right cross section seats without pinching or rolling
• A stocked o-ring kit turns seepage diagnosis into a five-minute fix

Features

• Viton fluoroelastomer construction
• Excellent high temperature and chemical resistance
• Cross sections: 1.6 mm CS, 1.8 mm CS, 2.00 mm CS, 2.2 mm CS, 2.5 mm CS, 2.95 mm CS, 3.00 mm CS
• Inner diameters: 7.5 mm ID, 10.3 mm ID, 8.9 mm ID, 11.8 mm ID, 16.3 mm ID, 19.1 mm ID, 23.5 mm ID, 29.5 mm ID, 37.0 mm ID
• For fuel, oil, and harsh fluid sealing environments
• Sold individually

The Details

Viton is the fluid-seal workhorse for a reason: it holds elasticity where fuels, oils, and heat harden or swell lesser compounds. In ORB service the o-ring is the entire seal, compressed between fitting shoulder and port face, which is why replacement is maintenance rather than repair; a ring that looks flattened, nicked, or glazed has already told you everything. Size by both cross section and ID, matching the groove, since a near-miss ring seals until it suddenly doesn't. Lubricate lightly with the system fluid at assembly so the ring seats without twisting, and keep torque modest, because the ring seals long before the threads run out of strength.

Kit Includes

• 1x Viton O-Ring (for ORB Fitting) (size per your selection)

Applications

• Cross sections: 1.6 mm CS, 1.8 mm CS, 2.00 mm CS, 2.2 mm CS, 2.5 mm CS, 2.95 mm CS, 3.00 mm CS; inner diameters: 7.5 mm ID, 10.3 mm ID, 8.9 mm ID, 11.8 mm ID, 16.3 mm ID, 19.1 mm ID, 23.5 mm ID, 29.5 mm ID, 37.0 mm ID
• Common uses: ORB fittings and plugs, fuel rail hardware, regulator and pump ports, rebuild spares
• Pairs with all FLF ORB fittings and hose ends
