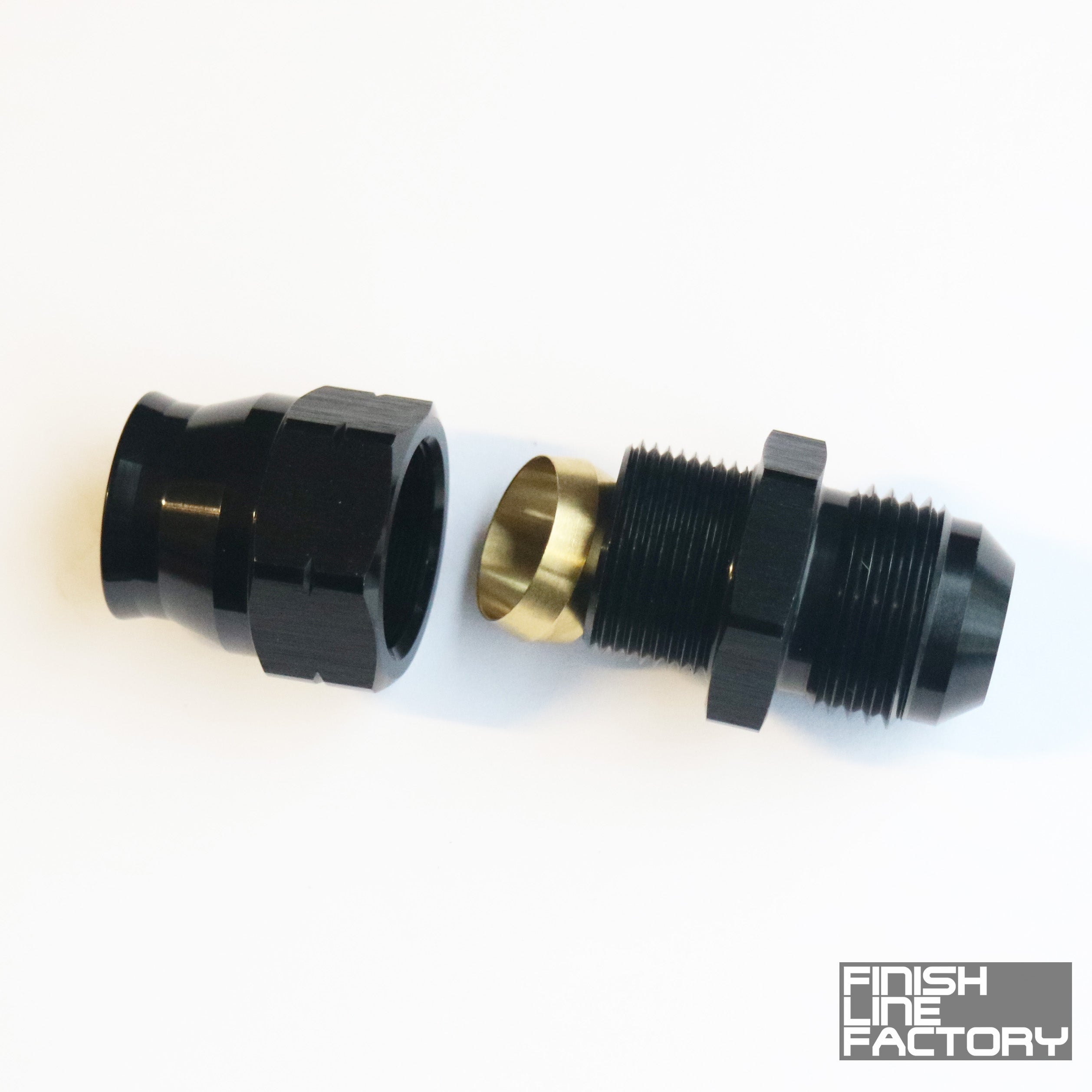

Tube to Male AN Adapter

Where the hardline ends, the AN system begins, and this is the fitting at the border.

Hardline runs still need to meet hoses, pumps, and rails. The Finish Line Factory Tube to Male AN Adapter is the border crossing: a flared-tube connection for 1/2 Tube, 1/4 Tube, 3/4 Tube, 3/8 Tube, 5/16 Tube, 5/8 Tube tube on one side, a male AN flare in 4AN, 6AN, 8AN, 10AN, 12AN on the other. CNC machined from lightweight 6061 aluminum, anodized black, with high-quality sealing for volatile fuels. Tube to AN, one fitting.

Benefits

• The hardline run terminates in a normal, serviceable AN connection
• Tube flares draw into the seat evenly with the matching nut and sleeve
• A standard hose end completes the transition in seconds
• The mixed hardline-and-hose system reads as one designed circuit

Features

• CNC machined 6061 aluminum, black anodized
• Tube side: 1/2 Tube, 1/4 Tube, 3/4 Tube, 3/8 Tube, 5/16 Tube, 5/8 Tube flared tube connection
• AN side: male 37 degree flare, 4AN, 6AN, 8AN, 10AN, 12AN
• Suits fuel, oil, water, and air delivery, including racing fuels
• Pairs with FLF tube nuts and sleeves
• Sold as a single fitting

The Details

The tube side seals on the tube's own flare, drawn in by its nut over its sleeve, so flare quality decides the joint: even, uncracked, fully formed. The AN side seals dry on the 37 degree cone as always. A male flare here takes any female hose end, making the transition from rigid to flexible plumbing exactly where vibration management wants it. Best practice puts a short hose section between hardline and anything that moves, letting the tube do distance and the hose do motion. Back the fitting while torquing either side so the two joints never fight each other.

Kit Includes

• 1x Tube to Male AN Adapter (size per your selection)

Applications

• Tube sizes: 1/2 Tube, 1/4 Tube, 3/4 Tube, 3/8 Tube, 5/16 Tube, 5/8 Tube; AN sizes: 4AN, 6AN, 8AN, 10AN, 12AN
• Common uses: chassis hardline to engine bay hose transitions, fuel feed and return terminations, oil cooler hardline ends
• Pairs with FLF hardline tubing, tube nuts, sleeves, and hose ends
