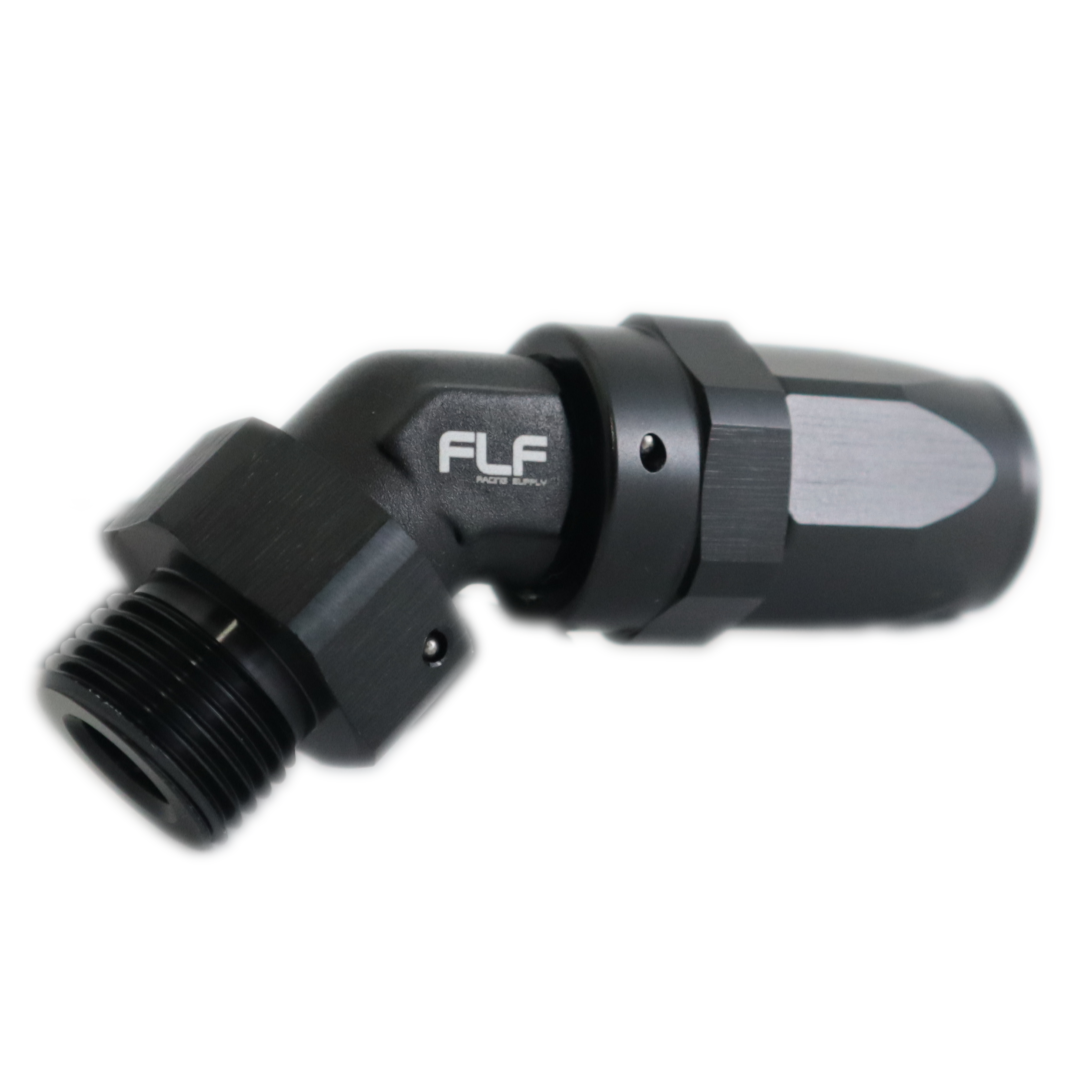

Swivel Hose End (Braided Rubber) - 45 Degree ORB

Skip the adapter: an ORB hose end lands the 45 degree bend right at the port.

Every adapter between hose and port is a joint that can leak and millimeters you may not have. The Finish Line Factory Swivel Hose End (Braided Rubber) - 45 Degree ORB threads straight into an O-Ring Boss port, no ORB-to-AN adapter in between, with 6061 aluminum construction and an FKM o-ring for long service against fuel and oil. Offered in 6AN, 8AN, 10AN, 12AN, 16AN hose sizes with ORB threads to match. One fitting where there used to be two.

Benefits

• Routing relaxes into place where a straight end used to fight you
• The swivel spins freely until the nut draws down, so the hose never twists in your hand
• Tightens to a definite stop against the seat, not a vague squish
• Comes apart and reassembles for hose changes without sacrificing the fitting
• The socket threads onto the braid with firm, even resistance, so you can feel a correct assembly

Features

• Two-piece reusable swivel design for braided rubber hose (nylon or stainless braid)
• Female ORB thread sealing on an FKM o-ring
• 45 Degree outlet angle
• Sizes: 6AN, 8AN, 10AN, 12AN, 16AN, ORB: 04 ORB, 06 ORB, 08 ORB, 10 ORB, 12 ORB, 16 ORB
• O-rings selected for fuels including E85, plus oil, coolant, water, and air
• Sold as a single hose end

The Details

A 45 degree sweep splits the difference between straight and a full corner, taking strain out of the hose where a right angle would overshoot the routing. Assembly is the usual two-step for cutter-style ends: wrap the hose at the cut line so the braid stays tight, feed it fully into the socket, then lube the nipple threads lightly and wind the body in while the swivel keeps the hose from torquing. Aluminum AN wrenches on the flats protect the finish, and a vise jaw insert protects the socket while you work. Because the ORB end seals on its o-ring rather than a taper or flare, torque is modest and the seal is the ring itself; inspect it at every rebuild and replace it cheaply rather than stretching its service life. Rubber-lined hose is the comfortable choice for gasoline, E85, oil, and coolant plumbing; step to PTFE-lined hose and its matching ends for brake, clutch, or fuels that attack rubber over time.

Kit Includes

• 1x Swivel Hose End (Braided Rubber) - 45 Degree ORB (size per your selection)

Applications

• Hose sizes: 6AN, 8AN, 10AN, 12AN, 16AN
• ORB port sizes: 04 ORB, 06 ORB, 08 ORB, 10 ORB, 12 ORB, 16 ORB
• Common uses: fuel feed and return lines, oil cooler and turbo oil lines, coolant reroutes, catch can plumbing, transmission cooler lines
• For FLF nylon braided and stainless steel braided rubber hose; not for PTFE-lined hose
