Stainless Steel Braided Hose (50 Foot Roll)

Braided armor exists because engine bays are full of things that eat rubber.

Bulk hose is where a plumbing project's budget and reliability both get decided. The Finish Line Factory Stainless Steel Braided Hose (50 Foot Roll) delivers 50 feet of stainless steel braid over a rubber liner, compatible with most fuels, coolants, and oils, in sizes 4AN, 6AN, 8AN, 10AN, 12AN, 16AN, 20AN. Enough length to cut every line in the run from one continuous roll, with the classic bright braid that reads race car from across the paddock. Measure generously and build the whole system from one batch.

Benefits

• Cuts clean with proper shears and holds its lay while you fit the ends
• A continuous roll means every line in the system matches in age, batch, and finish
• The stainless steel braid slides through grommets and clamps without snagging
• Enough length to mock up honestly instead of stretching a short piece to fit
• Leftover footage becomes the spare line you will eventually be glad to have

Features

• 50 foot continuous roll
• Stainless steel braid over a rubber inner liner
• Compatible with most fuels, coolants, and oils
• AN sizes: 4AN, 6AN, 8AN, 10AN, 12AN, 16AN, 20AN (ID/OD: 7/32" ID - 7/16" OD, 11/32" ID - 9/16" OD, 7/16" ID - 11/16" OD...)
• High operating temperature and pressure capability for racing duty
• Terminates with FLF braided rubber swivel or crimp-on hose ends

The Details

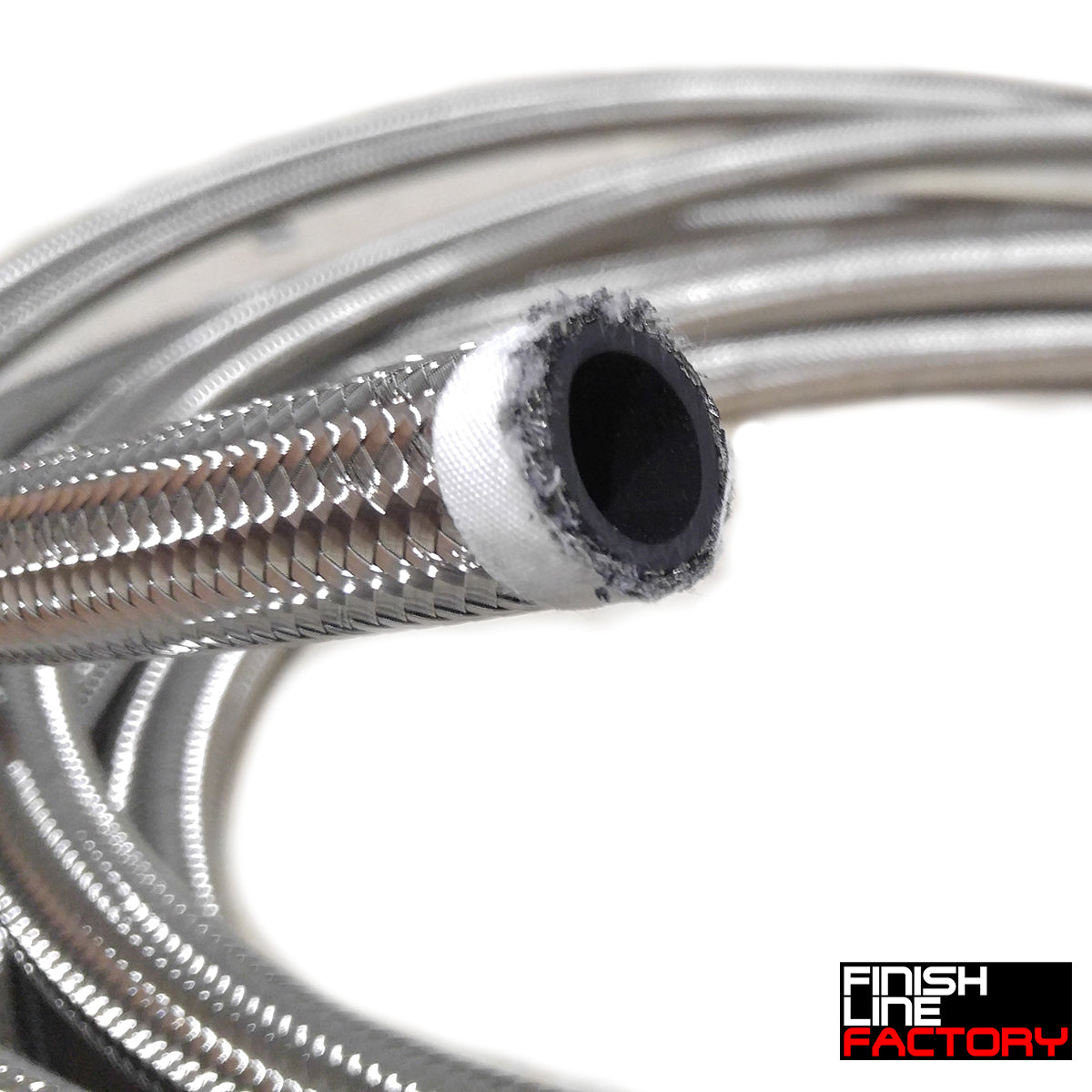

Stainless braid over a rubber liner is the traditional armor of race plumbing: outstanding crush and abrasion protection with the bright, timeless look. The rubber liner handles gasoline, oils, and coolants across a wide temperature range. Sizing follows AN convention, where the dash number tracks the hose inside diameter, so match hose size to hose end size exactly and match both to the flow the system needs; fuel feed lines step up with horsepower while return, vent, and breather lines can run smaller. Cut with dedicated hose shears for a square, unfrayed end, wrap the cut line before cutting braided hose, and seat the hose fully into its end before assembly. Bare stainless braid is itself abrasive and will happily chew paint, wiring, and softer hoses it touches, so route with separators and sleeve it where it crosses anything you care about. Buy the roll length that covers the whole project plus a mock-up allowance; splices are just extra leak points wearing a disguise.

Kit Includes

• 1x 50 foot roll of Stainless Steel Braided Hose (AN size per your selection)

Applications

• AN sizes: 4AN, 6AN, 8AN, 10AN, 12AN, 16AN, 20AN
• Common uses: fuel systems, oil cooler and turbo oil lines, coolant plumbing, anywhere abrasion or crush protection matters
• Pairs with FLF braided rubber swivel or crimp-on hose ends
• Cut to length with FLF Hose Cutting Shears
