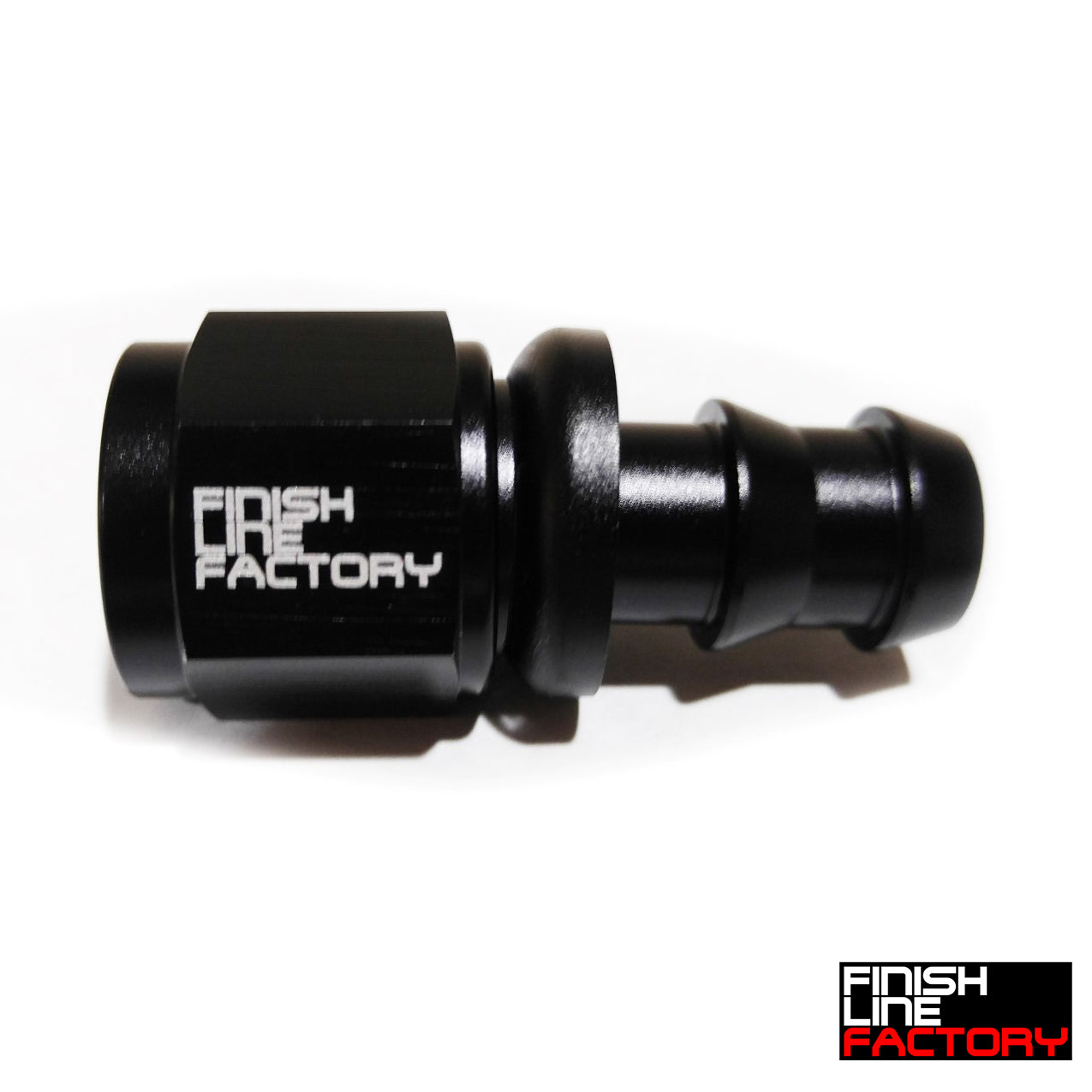

Push Lock Hose End - Straight

The shortest path between hose and fitting is still the one that leaks the least.

Not every line justifies braided hose and cutter-style ends. The Finish Line Factory Push Lock Hose End - Straight gives push-lock rubber hose a proper AN interface: barbed retention on the hose side, a female AN nut sealing on the 37 degree flare on the fitting side, in 4AN, 6AN, 8AN, 10AN, 12AN with a straight outlet. No sockets, no cutting collars, no special tools. Push the hose on and plumb like the rest of the system.

Benefits

• Hose pushes over the barbs with real effort and then simply will not pull back off
• Assembly lines up naturally, no wrestling the hose into an approach angle
• Assembly is lube, push, done, the fastest hose end in the catalog
• The AN nut ties budget hose into the same flare fittings as the braided lines
• Re-routing costs minutes, not an evening at the bench

Features

• Push-lock barbed retention, engineered for clamp-free service on push-lock hose
• Female AN swivel nut sealing on the 37 degree flare
• Straight outlet angle
• Sizes: 4AN, 6AN, 8AN, 10AN, 12AN
• For oil, water, air, and fuel-rated push-lock hose service
• Sold as a single hose end

The Details

A straight body keeps the flow path short and unrestricted, the right default anywhere the hose can approach the fitting head-on. Push-lock is the quiet workhorse of hose systems: the multi-barb nipple grips the hose ID so aggressively that, on proper push-lock hose, the joint holds without a clamp. The trick to easy assembly is a square-cut hose, a touch of assembly lube on the barbs, and a steady push with the hose bottomed against the stop; if it slides on easily, the hose is oversized and will seep. The AN side seals dry, metal to metal on the flare. Know the lane: push-lock shines on catch cans, breathers, coolant overflow, transmission cooler lines, and modest fuel pressure, while high-pressure EFI fuel belongs on braided hose with cutter or crimp ends. Getting hose back off a push-lock barb usually means cutting it, so measure twice before that satisfying final shove.

Kit Includes

• 1x Push Lock Hose End - Straight (size per your selection)

Applications

• Sizes: 4AN, 6AN, 8AN, 10AN, 12AN
• Mates to any male AN flare fitting in the matching size
• Common uses: catch can and breather plumbing, coolant overflow, transmission and oil cooler lines, low pressure fuel, vacuum and air lines
• For push-lock rated rubber hose; not for braided or PTFE hose
