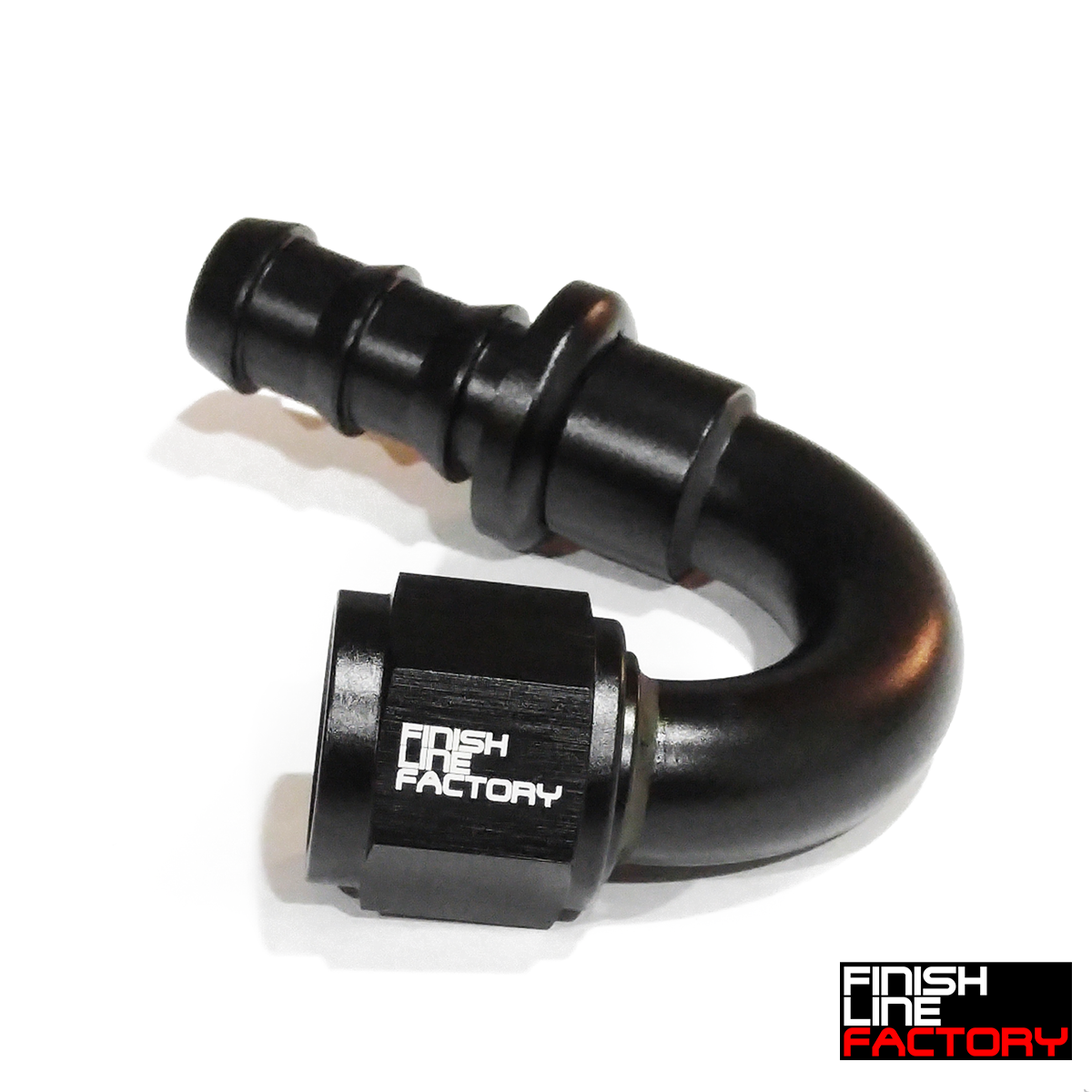

Push Lock Hose End - 150 Degree

Some ports point almost exactly the wrong direction; 150 degrees answers them.

Not every line justifies braided hose and cutter-style ends. The Finish Line Factory Push Lock Hose End - 150 Degree gives push-lock rubber hose a proper AN interface: barbed retention on the hose side, a female AN nut sealing on the 37 degree flare on the fitting side, in 6AN, 8AN, 10AN, 12AN with a 150 degree outlet. No sockets, no cutting collars, no special tools. Push the hose on and plumb like the rest of the system.

Benefits

• Hose pushes over the barbs with real effort and then simply will not pull back off
• Near-reversals happen inside the fitting instead of in a strained loop of hose
• Assembly is lube, push, done, the fastest hose end in the catalog
• The AN nut ties budget hose into the same flare fittings as the braided lines
• Re-routing costs minutes, not an evening at the bench

Features

• Push-lock barbed retention, engineered for clamp-free service on push-lock hose
• Female AN swivel nut sealing on the 37 degree flare
• 150 Degree outlet angle
• Sizes: 6AN, 8AN, 10AN, 12AN
• For oil, water, air, and fuel-rated push-lock hose service
• Sold as a single hose end

The Details

At 150 degrees the fitting nearly reverses the line, which lets a hose leave a port aimed the wrong way and come straight back without a folded liner or a wide wasted loop. Push-lock is the quiet workhorse of hose systems: the multi-barb nipple grips the hose ID so aggressively that, on proper push-lock hose, the joint holds without a clamp. The trick to easy assembly is a square-cut hose, a touch of assembly lube on the barbs, and a steady push with the hose bottomed against the stop; if it slides on easily, the hose is oversized and will seep. The AN side seals dry, metal to metal on the flare. Know the lane: push-lock shines on catch cans, breathers, coolant overflow, transmission cooler lines, and modest fuel pressure, while high-pressure EFI fuel belongs on braided hose with cutter or crimp ends. Getting hose back off a push-lock barb usually means cutting it, so measure twice before that satisfying final shove.

Kit Includes

• 1x Push Lock Hose End - 150 Degree (size per your selection)

Applications

• Sizes: 6AN, 8AN, 10AN, 12AN
• Mates to any male AN flare fitting in the matching size
• Common uses: catch can and breather plumbing, coolant overflow, transmission and oil cooler lines, low pressure fuel, vacuum and air lines
• For push-lock rated rubber hose; not for braided or PTFE hose
