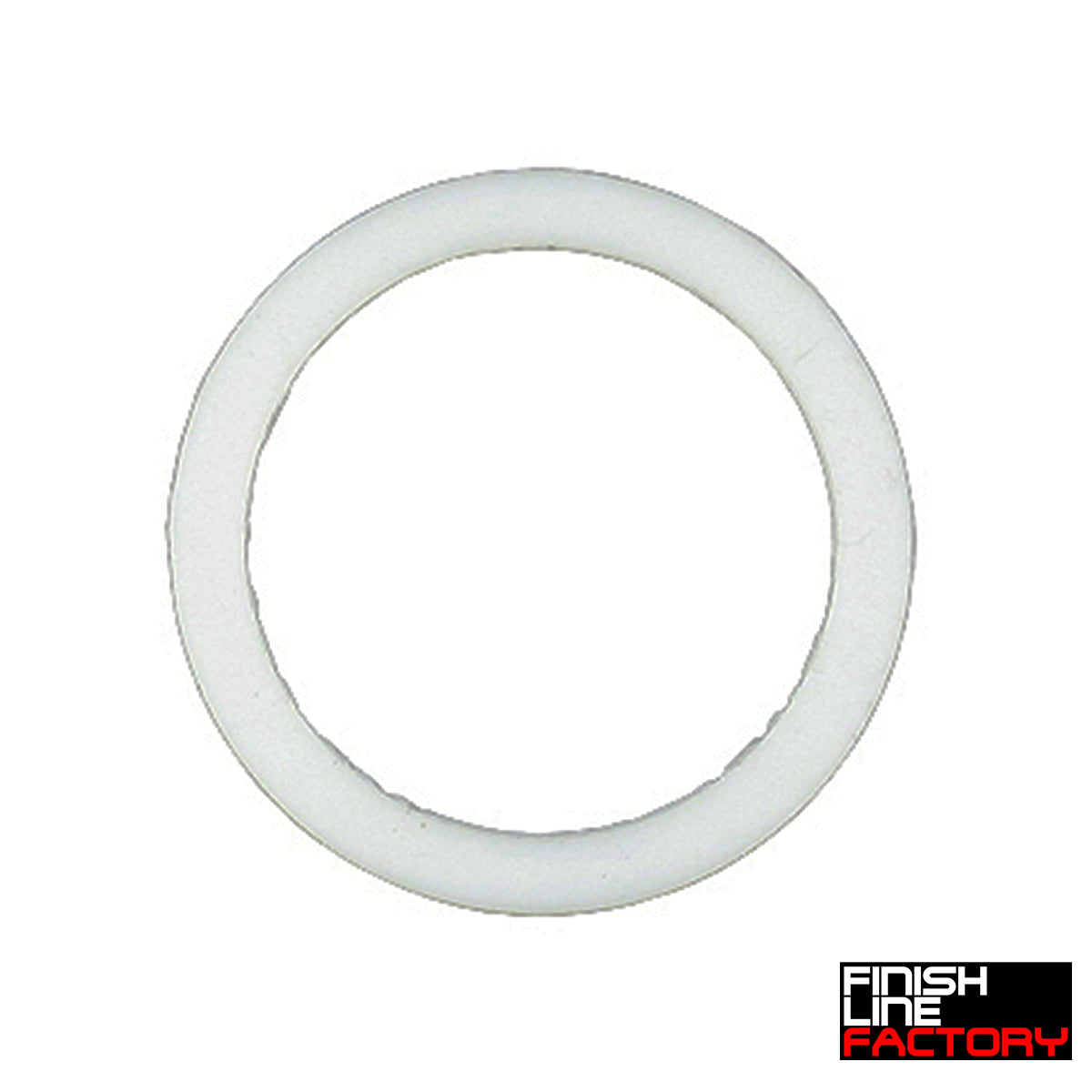

PTFE Teflon Washer (for AN Bulkhead)

Thin panels and torqued nuts need a peacemaker between them.

Bulkhead nuts want torque; sheet metal and tank walls want mercy. The Finish Line Factory PTFE Teflon Washer sits between: a low-friction, corrosion-proof, chemical-proof bearing surface distributing fastener load, in AN sizes 03 AN, 04 AN, 06 AN, 08 AN, 10 AN, 12 AN, 16 AN, 20 AN with dimensions 15.9 mm OD x 9.8 mm ID, 17 mm OD x 11.3 mm ID, 20 mm OD x 14.5 mm ID, 25.3 mm OD x 19.3 mm ID, 28.28 mm OD x 22.5 mm ID, 33.5 mm OD x 27.2 mm ID, 40 mm OD x 33.5 mm ID, 47.5 mm OD x 41.5 mm ID. The bulkhead install that still comes apart cleanly years later.

Benefits

• Nut torque spreads across the panel instead of dimpling it
• The low-friction face lets the nut seat without twisting the fitting
• Fuel cell and tank surfaces stay unmarred through service cycles
• Disassembly years later is a wrench job, not an excavation

Features

• Durable PTFE construction, low friction bearing surface
• Resistant to corrosion and almost any chemical
• AN sizes: 03 AN, 04 AN, 06 AN, 08 AN, 10 AN, 12 AN, 16 AN, 20 AN
• Dimensions (OD x ID): 15.9 mm OD x 9.8 mm ID, 17 mm OD x 11.3 mm ID, 20 mm OD x 14.5 mm ID, 25.3 mm OD x 19.3 mm ID, 28.28 mm OD x 22.5 mm ID, 33.5 mm OD x 27.2 mm ID, 40 mm OD x 33.5 mm ID, 47.5 mm OD x 41.5 mm ID
• Distributes fastener load or acts as a spacer
• Sold individually

The Details

PTFE brings two gifts to a clamped joint: chemistry that nothing in a fuel or oil system attacks, and a slippery face that decouples nut rotation from panel torque, so tightening compresses instead of twisting. Under bulkhead nuts on fuel cells, firewalls, and panels, that means full clamping without gouged surfaces or wandering fittings; as a spacer, it shims stacks without introducing a corrosion couple. PTFE does flow under extreme sustained load, so it belongs in clamped-panel service rather than as a substitute crush washer on high-torque plugs. Match the AN size to the bulkhead and the joint gets the mechanical grace the standard intended.

Kit Includes

• 1x PTFE Teflon Washer (for AN Bulkhead) (size per your selection)

Applications

• AN sizes: 03 AN, 04 AN, 06 AN, 08 AN, 10 AN, 12 AN, 16 AN, 20 AN
• Common uses: under bulkhead nuts on fuel cells, firewalls, and panels; load-spreading spacers in fitting stacks
• Pairs with FLF Bulkhead Adapters and Bulkhead Nuts
