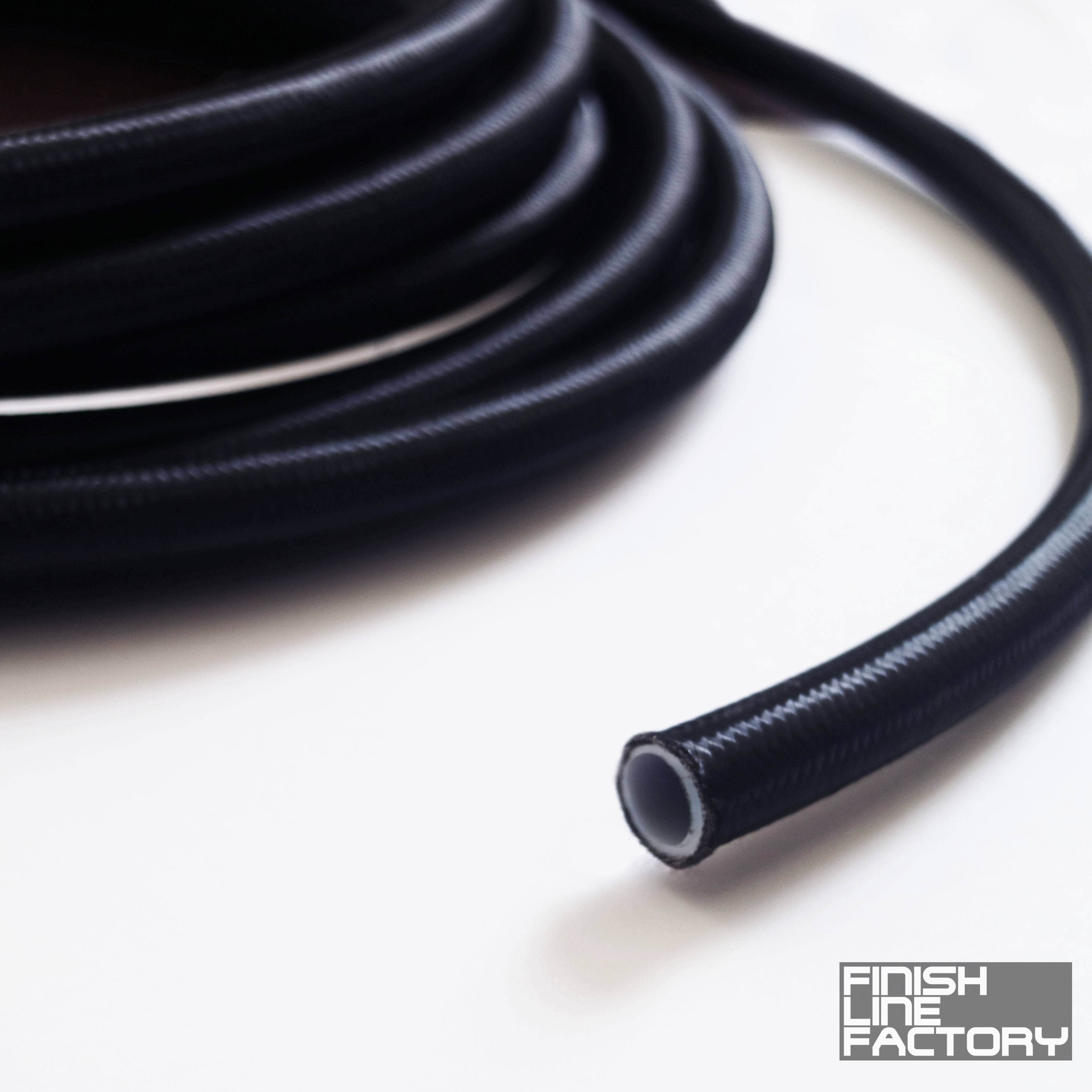

PTFE Hose w/ Braided Nylon (10 Foot Roll)

E85 does not negotiate with rubber liners; it just wins slowly.

Bulk hose is where a plumbing project's budget and reliability both get decided. The Finish Line Factory PTFE Hose w/ Braided Nylon (10 Foot Roll) delivers 10 feet of nylon braid over a PTFE liner, compatible with all fuels, coolants, and oils, in sizes 4AN, 6AN, 8AN, 10AN, 12AN. Enough length to cut every line in the run from one continuous roll, with the chemistry-proof liner that treats E85 like water. Measure generously and build the whole system from one batch.

Benefits

• Cuts clean with proper shears and holds its lay while you fit the ends
• A continuous roll means every line in the system matches in age, batch, and finish
• The nylon braid slides through grommets and clamps without snagging
• Enough length to mock up honestly instead of stretching a short piece to fit
• Leftover footage becomes the spare line you will eventually be glad to have

Features

• 10 foot continuous roll
• Nylon braid over a PTFE inner liner
• Compatible with all fuels, coolants, and oils
• AN sizes: 4AN, 6AN, 8AN, 10AN, 12AN
• High operating temperature and pressure capability for racing duty
• Terminates with FLF braided PTFE swivel or crimp-on hose ends, sealing on an olive ferrule

The Details

A PTFE liner under nylon braid is the endgame wall for aggressive fluids: E85, methanol blends, and long fuel soak that slowly hardens rubber leave PTFE untouched, and it carries significantly higher temperature and pressure capability than rubber-lined hose. Sizing follows AN convention, where the dash number tracks the hose inside diameter, so match hose size to hose end size exactly and match both to the flow the system needs; fuel feed lines step up with horsepower while return, vent, and breather lines can run smaller. Cut with dedicated hose shears for a square, unfrayed end, wrap the cut line before cutting braided hose, and seat the hose fully into its end before assembly. PTFE liner is stiffer than rubber and holds a set, so respect its larger minimum bend radius and plan sweeps, not corners; the matching PTFE-specific hose ends are mandatory, as rubber-hose ends will not seal the liner. Buy the roll length that covers the whole project plus a mock-up allowance; splices are just extra leak points wearing a disguise.

Kit Includes

• 1x 10 foot roll of PTFE Hose w/ Braided Nylon (AN size per your selection)

Applications

• AN sizes: 4AN, 6AN, 8AN, 10AN, 12AN
• Common uses: E85 and methanol-blend fuel systems, long-soak fuel lines, high-temperature oil runs, vent and vapor lines
• Pairs with FLF braided PTFE swivel or crimp-on hose ends, sealing on an olive ferrule
• Cut to length with FLF Hose Cutting Shears
