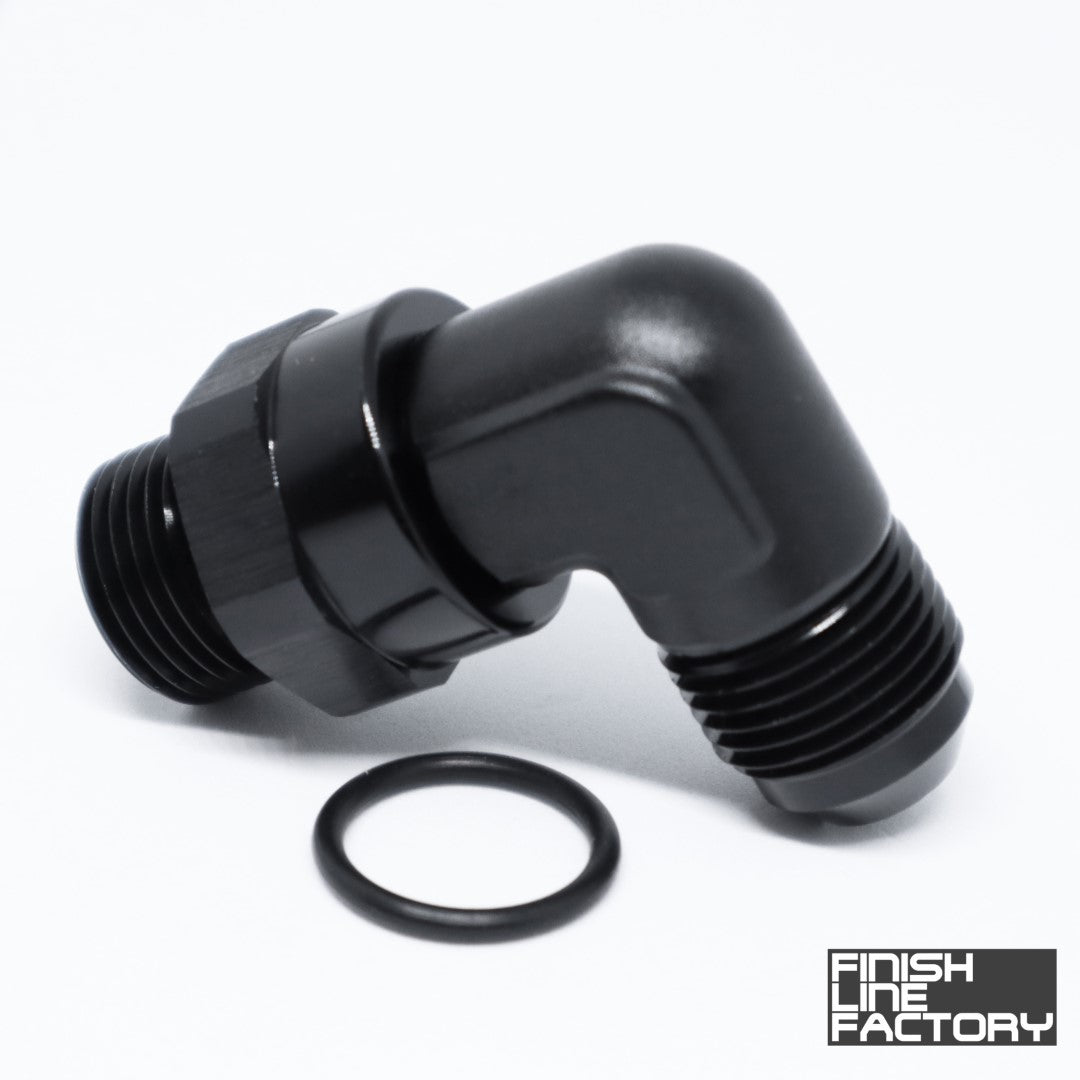

FLF ORB Swivel to AN Adapter - 90 Degree

Vendor:Finish Line Factory

ORB Swivel to AN Adapter - 90 Degree

SKU: ADPT-90-4ORB-6AN

Size
Size: 04 ORB
Size 2
Size 2: 06 AN
$16.19
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.
nexus software programmer

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Full torque at the boss, then point the outlet anywhere: that's the swivel ORB promise.

Perfect for a fuel rail, regulator, or any o-ring boss port where the line must leave at a right angle you choose. The Finish Line Factory ORB Swivel to AN Adapter - 90 Degree carries a male ORB with a swiveling 90 degree AN outlet on one side and a male 37 degree AN flare on the other, in AN sizes 6AN, 8AN, 10AN, 12AN, 16AN with port sizes 04 ORB, 06 ORB, 08 ORB, 10 ORB, 12 ORB, 16 ORB. Ideal for fuel, oil, water, and air delivery, and for keeping the whole downstream system in one connection standard.

Benefits

  • The odd port joins the AN system instead of dictating its own island of plumbing
  • Sealing happens the way this thread standard actually works, not the way NPT habits assume
  • Downstream, everything is familiar flares and familiar wrenches
  • One correct adapter replaces a drawer of near-miss attempts

Features

  • Port side: male ORB with a swiveling 90 degree AN outlet, sizes 04 ORB, 06 ORB, 08 ORB, 10 ORB, 12 ORB, 16 ORB
  • AN side: male 37 degree flare, 6AN, 8AN, 10AN, 12AN, 16AN
  • Seals via the o-ring at the boss face, with the 90 degree outlet clocking freely before lockdown
  • Suits fuel, oil, water, and air delivery
  • Sold as a single fitting

The Details

Thread standards differ in exactly one place that matters: where the seal lives. Here it lives at the o-ring at the boss face, with the 90 degree outlet clocking freely before lockdown, while the AN side stays a dry metal-to-metal flare, no sealant ever. Torque the ORB base fully, then aim the swivel outlet; sealing and aiming are independent. Assemble the port side first, confirm it holds, then bring the AN plumbing to it with the body backed up by an aluminum wrench. When a port's identity is uncertain, measure before ordering: thread pitch gauges and calipers cost less than a stripped component, and the difference between tapered and parallel is visible in profile.

Kit Includes

  • 1x ORB Swivel to AN Adapter - 90 Degree (size per your selection)

Applications

  • Port sizes: 04 ORB, 06 ORB, 08 ORB, 10 ORB, 12 ORB, 16 ORB; AN sizes: 6AN, 8AN, 10AN, 12AN, 16AN
  • Common uses: adapting OEM and specialty ports to AN plumbing on fuel, oil, coolant, and air systems
  • Mates to female AN hose ends in the matching size downstream
