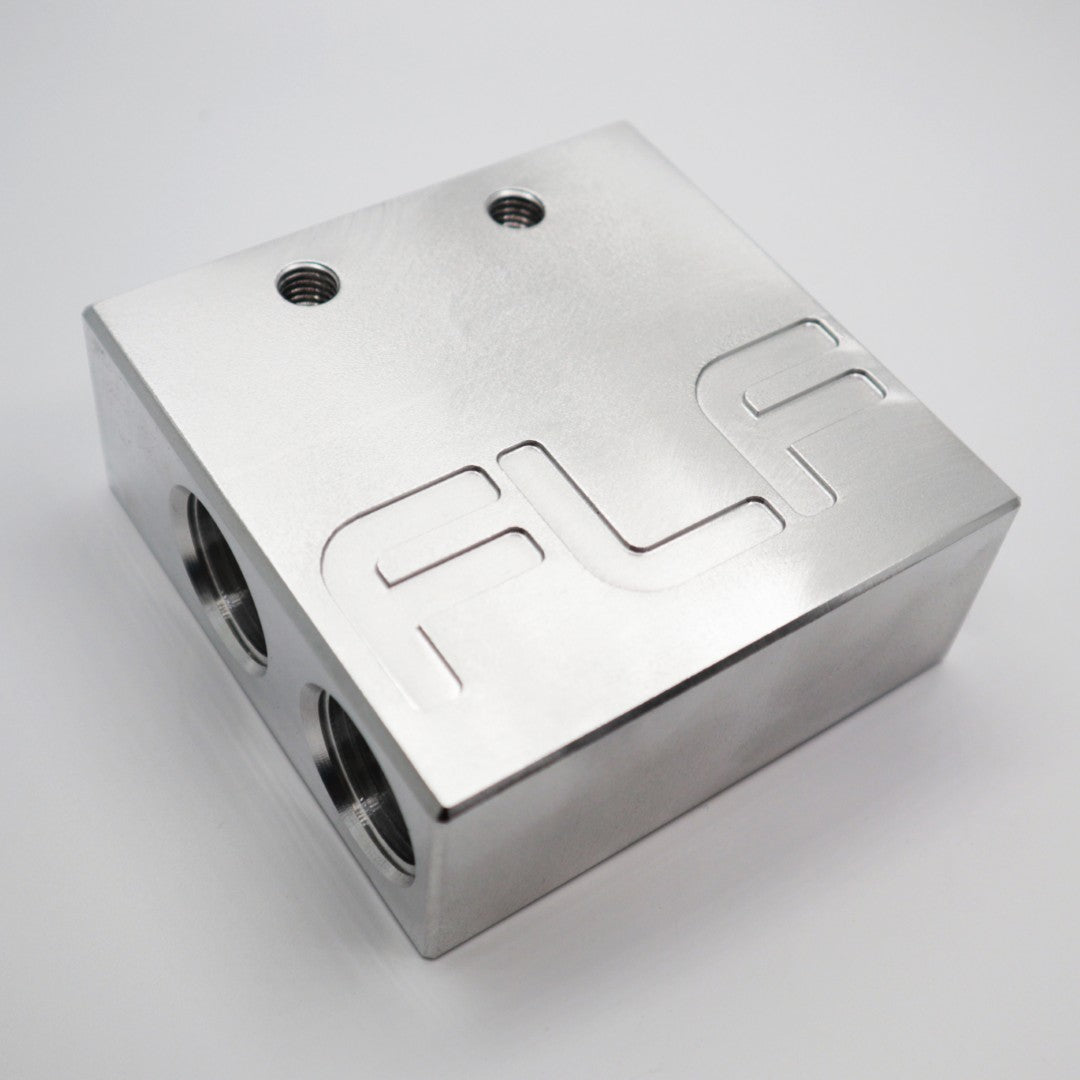

Remote Oil Filter Mount, 4-Port

• Features
  • Mounting holes are M8x1.25 with an 2x30mm bolt pattern
  • Oil ports are threaded -10 ORB
  • Oil Filter Adapter required for bottom port
  • ORB to AN adapters required for side ports
  • 2x ORB plugs included for unused ports
  • Compact design minimizes height to improve fitment in tight spaces
  • 4-Port Design allows maximum installation flexibility
  • 100% Made in USA with USA-sourced materials

FLF’s Oil Filter Mounts allow you to relocate your oil filter to a more convenient part of your engine bay. Our unique and compact 4-port design allows you to have multiple ways to easily orient this product with different flow paths. You can also use the unused ports for sensors, turbo oil feed, and more. This product is made 100% in our USA manufacturing facility using only USA-sourced materials. It’s backed by FLF’s solid warranty too!

The side ports are threaded -10 ORB for maximum flexibility. We recommend using our ORB to AN adapters, all sizes from -4 AN to -12 AN are available.

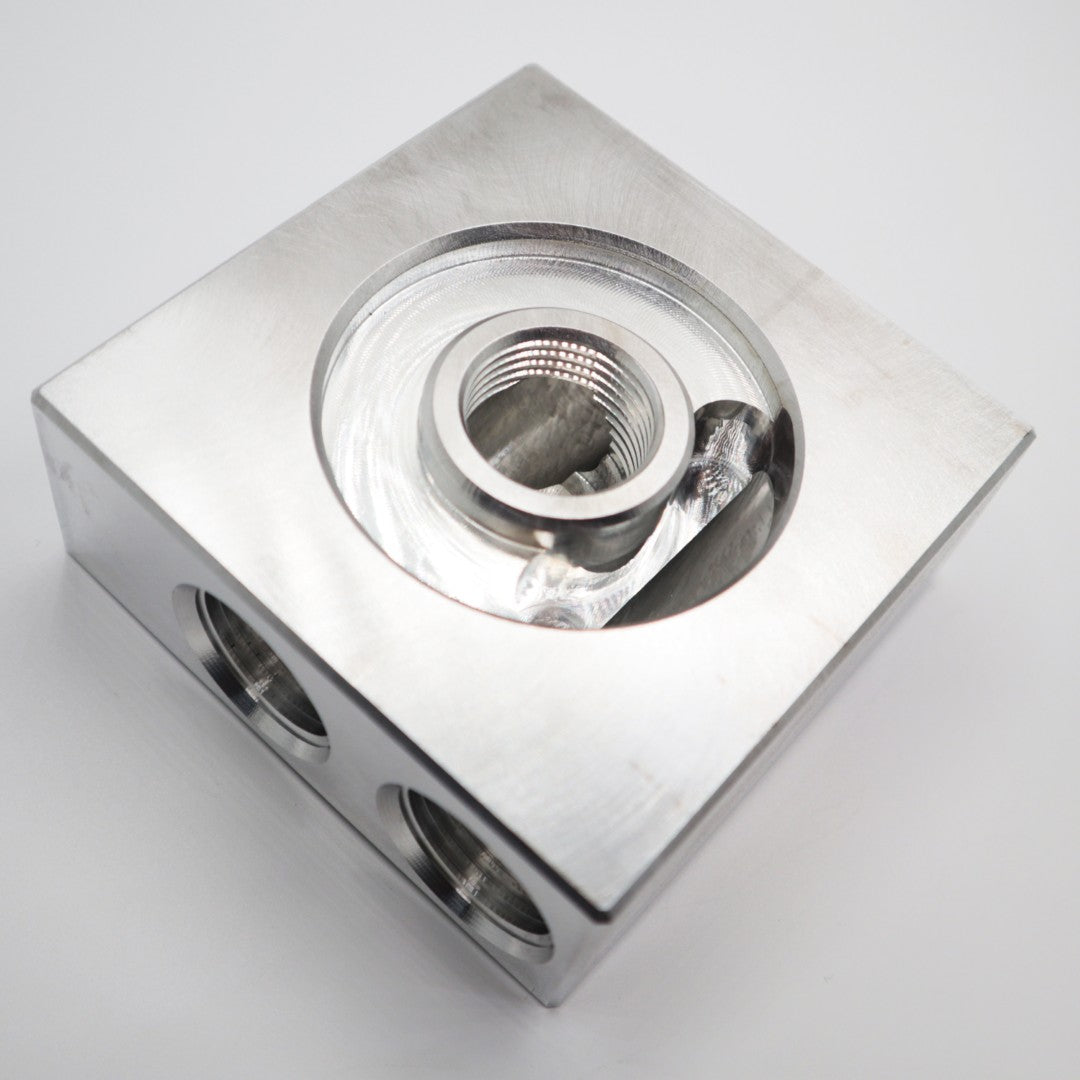

The bottom port requires an FLF Oil Filter Adapter, with M20, M22, 3/4, and 13/16 thread sizes available.

Features

• Mounting holes are M8x1.25 with an 2x30mm bolt pattern
• Oil ports are threaded -10 ORB
• Fits oil filters up to 75mm in diameter (measured at filter o-ring)
• Oil Filter Adapter required for bottom port
• ORB to AN adapters required for side ports
• 2x ORB plugs included for unused ports
• Compact design minimizes height to improve fitment in tight spaces
• 4-Port Design allows maximum installation flexibility
• 100% Made in USA with USA-sourced materials
