Oil Cooler Starter Kit

An oil cooler is only as good as the plumbing that feeds it.

Cooler cores are easy; the lines are where projects stall. The Finish Line Factory Oil Cooler Starter Kit un-stalls them: a common setup of basic fittings and nylon braided hose to get an oil cooler system started, in 08 AN, 10 AN, 12 AN, fully compatible with all engine oils, gearbox oils, and automotive lubricants. Other parts, like ORB or NPT adapters, may be needed to finish your specific system, but the backbone arrives in one box.

Benefits

• The core of the plumbing arrives matched instead of pieced together
• Hose and fittings share one size logic from cooler to block
• The project starts the weekend the box lands
• Leftover decisions shrink to the adapters your specific cooler needs

Features

• Starter kit: common fittings plus nylon braided hose for an oil cooler system
• Sizes: 08 AN, 10 AN, 12 AN
• Fully compatible with all engine oils, gearbox oils, and automotive lubricants
• AN fittings throughout for serviceable connections
• Supplement with ORB/NPT adapters per your cooler and block

The Details

Oil cooler plumbing follows a simple circuit, out of the engine, through the core, back, but the details are all sizing and interface: sandwich plates and thermostats speak various ports, cooler cores commonly carry ORB bungs, and the lines between want proper hose with proper ends. The kit supplies that between, matched hose and AN fittings in the chosen size, with 10AN the common street-performance pick and 12AN serving high-flow duty. Route lines clear of exhaust with heat sleeve where they must pass, support the runs, and finish the interfaces with the specific ORB or NPT adapters your components dictate. Oil-rated throughout, so gearbox and diff cooler projects use the same box.

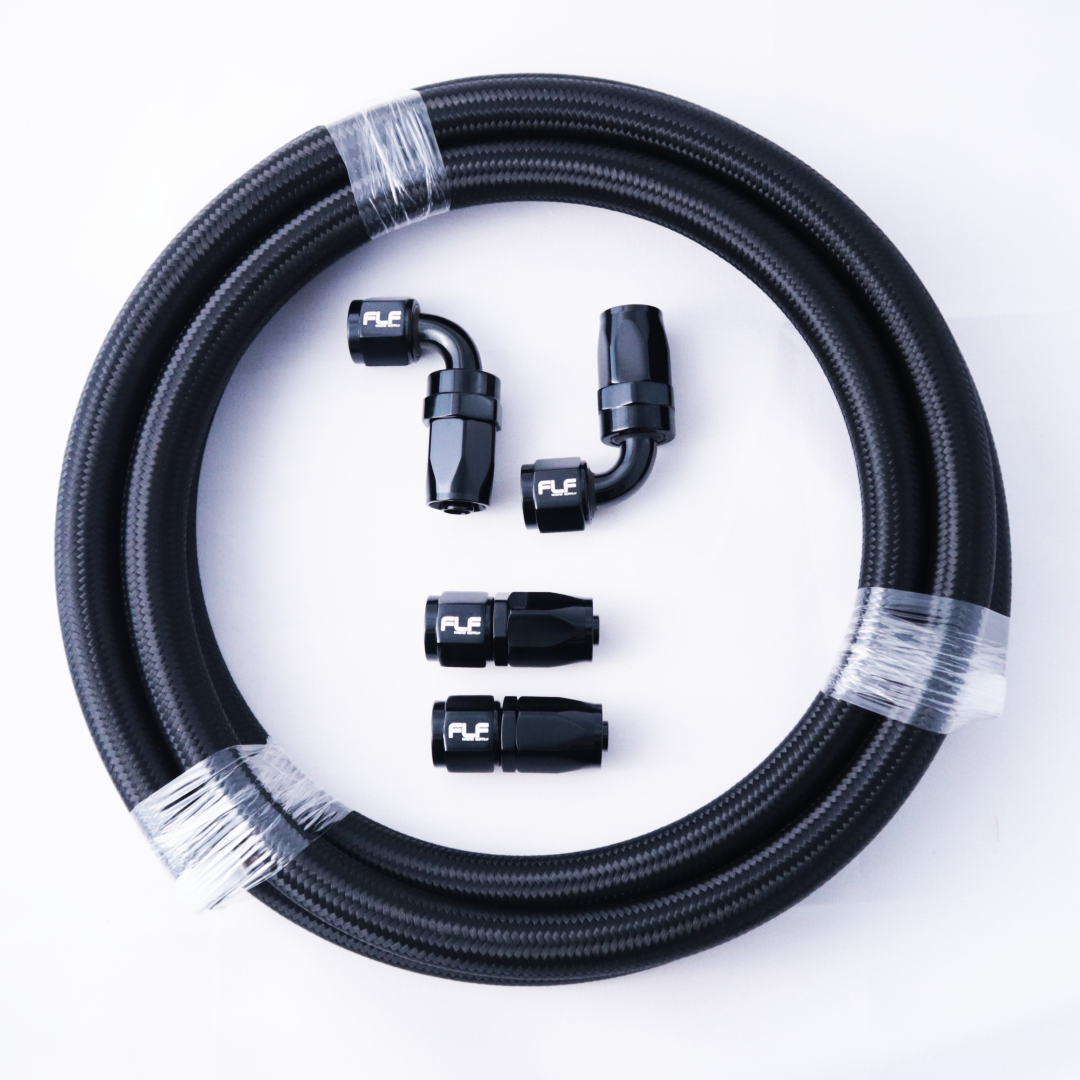

Kit Includes

• 1x Oil Cooler Starter Kit (size per your selection)
• 1x 10ft roll of Nylon Braided Rubber hose
• 2x Straight braided rubber hose ends
• 2x 90 degree braided rubber hose ends

Applications

• Sizes: 08 AN, 10 AN, 12 AN
• Common uses: engine oil coolers, transmission and differential coolers, remote filter plumbing
• Supplement with FLF ORB/NPT adapters, heat sleeve, and separators as the install dictates
