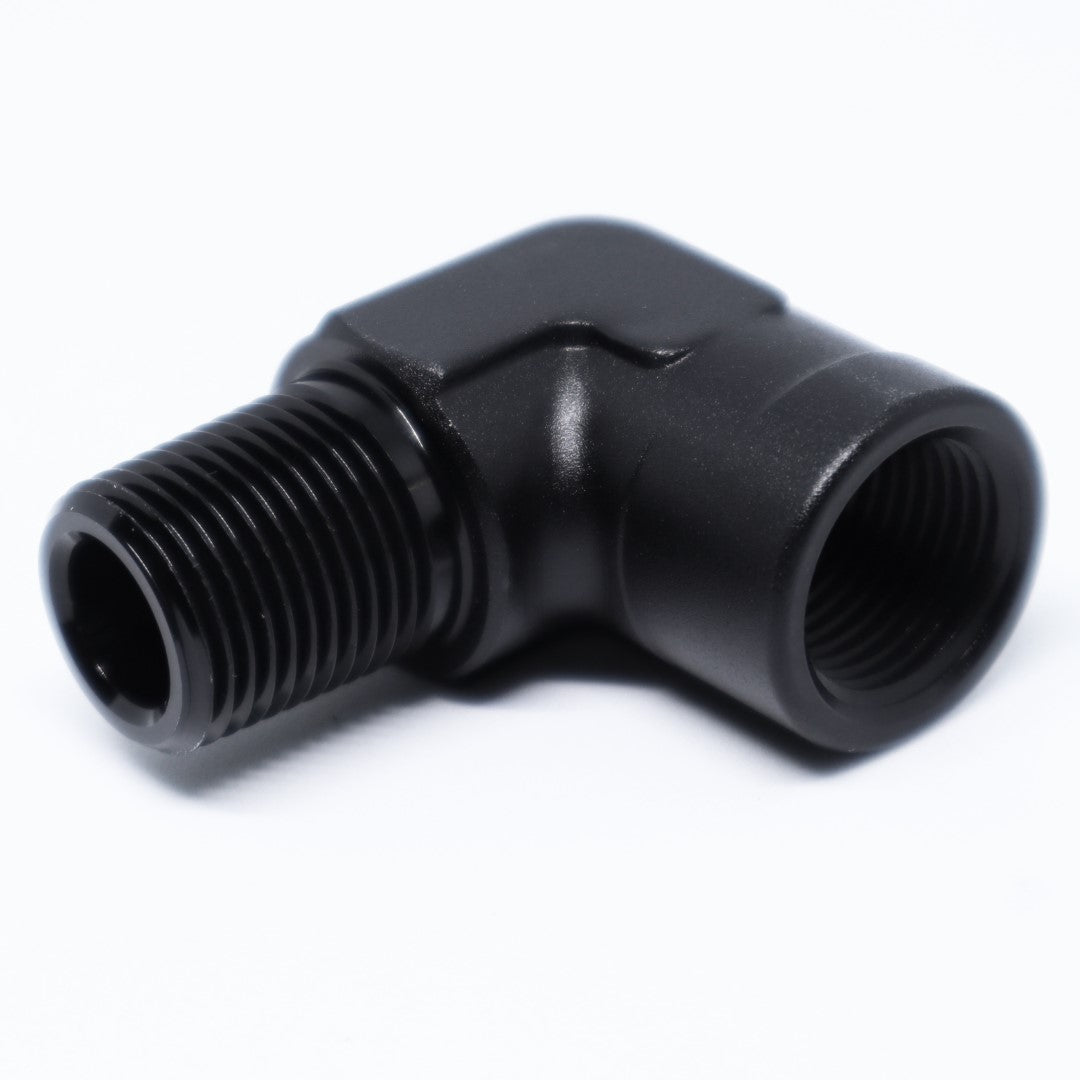

NPT Male to NPT Female Adapter, 90 Degree

A fuel pressure gauge facing the firewall might as well not be there.

Ports never point where the human needs them to: senders jam against manifolds, gauges face away, fittings crowd each other on a regulator body. The Finish Line Factory NPT Male to NPT Female Adapter, 90 Degree is the street elbow that fixes the geometry, CNC machined from 6061 aluminum in matched 1/8" through 1/2" NPT sizes. The male end goes into the port, your gauge or fitting goes into the female end, and the whole assembly turns a corner. Small part, big quality-of-life upgrade.

Benefits

• The gauge finally faces you during a tuning session instead of the inner fender
• Sensors clear the manifold runner they used to grind against
• Both tapers tighten with clean, even engagement, no gritty cast-fitting feel
• Wiring reaches senders that used to point away from the harness
• Crowded regulator and pump ports spread out into usable space

Features

• CNC machined 6061 aluminum
• Male NPT on one end, female NPT on the other, 90 degrees apart
• Matched sizes: 1/8", 1/4", 3/8", 1/2" NPT
• Tapered thread sealing at both joints
• Suits fuel, oil, coolant, and air service
• Single elbow per order in your selected size

The Details

Plumbers call this a street elbow: male one end, female the other, same nominal size straight through. In a car it earns its keep around instrumentation, because gauges and senders are rigid objects screwed into ports that were never drilled with visibility or wire routing in mind. Both joints seal as tapered threads, so both get sealant with the lead thread kept clean, and the elbow's female joint should be assembled while you back up the elbow body with a wrench, otherwise tightening the gauge just rotates the elbow in the port. One honest limitation of tapered fittings applies here: the elbow stops rotating where the taper binds, which may not be exactly the direction you wanted. You usually have most of a turn of usable adjustment range within proper engagement to aim it, and thread sealant helps the joint stay sealed across that range. Aluminum keeps the assembly light on plastic-bodied regulators and won't seize into aluminum housings the way steel pipe fittings love to.

Kit Includes

• 1x NPT Male to NPT Female Adapter, 90 Degree (size per your selection)

Applications

• NPT sizes: 1/8", 1/4", 3/8", 1/2", male to female, same size through
• Common uses: fuel pressure gauges on regulators, oil pressure and temperature senders, boost and vacuum fittings on manifolds, relocating any NPT fitting that fouls nearby components
• Accepts any male NPT gauge, sender, or fitting in the matching size, including FLF AN to NPT adapters
